Katalogové číslo: 09060643302

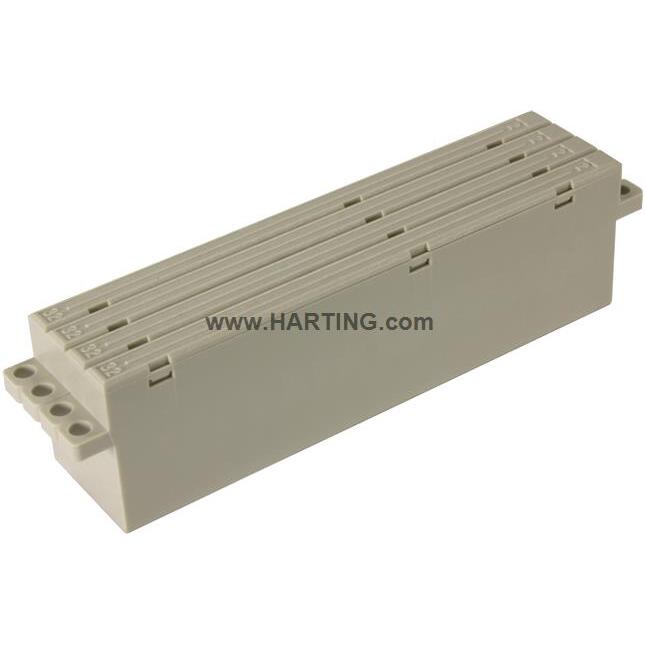

DIN-Power Vervielfacher

Cena za ks

Series: DIN 41612

Element: Distributor

Features: lead-free

Termination method: Crimp termination

Connection type: Cable to cable

PCB fixing: With fixing flange

Contact rows: 4

Contact spacing (mating side): 5.08 mm

Rated current: Rated current measured at 20 °C, see derating curve for details

Clearance distance: ≥ 1.6 mm

Creepage distance: ≥ 3 mm

Insulation resistance: _1012 Ω

Contact resistance: ≤ 15 mΩ

Limiting temperature: '-55 ... +125 °C

Test voltage Ur.m.s.: 1.55 kV (contact-contact) / 2.5 kV (contact-ground)

Isolation group: IIIa (175 ≤ CTI _ 400)

Hot plugging: No

Material (insert): Thermoplastic resin, glass-fibre filled

Colour (insert): RAL 7032 (pebble grey)

Material flammability class acc. to UL 94: V-0

RoHS: compliant

ELV status: compliant

China RoHS: e

REACH Annex XVII substances: Not contained

REACH Annex XIV substances: Not contained

REACH SVHC substances: Not contained

California Proposition 65 substances: Yes

California Proposition 65 substances 2: Lead / Nickel

Specifications: IEC 60603-2

UL / CSA: UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079

Railway classification: F1_I2 acc. to NFF 16-101_102

Packaging size: 20

Net weight: 41 g

Country of origin: Germany

European customs tariff number: 85389099

GTIN: 5713140011410

eCl@ss: 27460201 PCB connector (board connector)
