Katalogové číslo: 09120062694

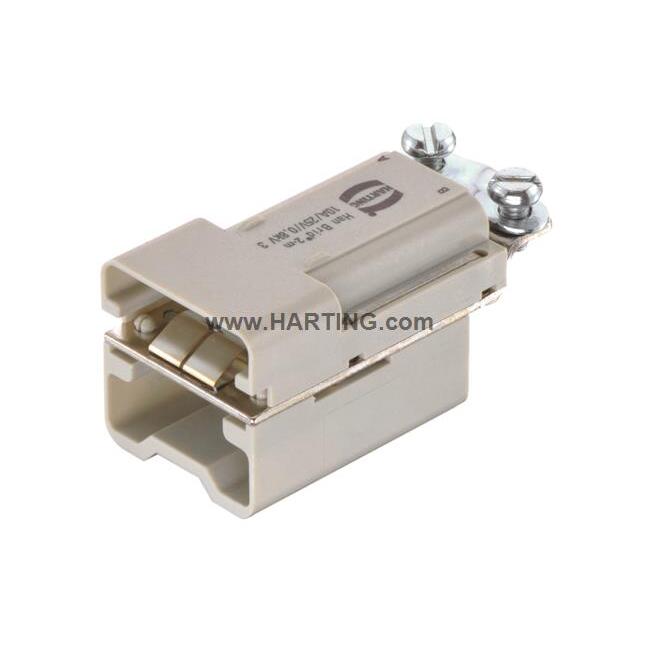

Han Brid-Wanddurchf.+ Cu-Bus Sti-c (G)

Cena za ks

674,80  bez DPH

Parametry produktu 09120062694:

Series: Han-Brid®
Element: Panel feed through
Number of contacts: 2
Rated current: ‌ 10 A
Insulation resistance: _1010 Ω
Limiting temperature: '-40 ... +125 °C
Mating cycles: ≥ 500
Material (insert): Polycarbonate (PC)
Colour (insert): RAL 7032 (pebble grey)
Material flammability class acc. to UL 94: V-0
RoHS: compliant with exemption
ELV status: compliant with exemption
China RoHS: 50
REACH Annex XVII substances: Not contained
REACH Annex XIV substances: Not contained
REACH SVHC substances: Yes
California Proposition 65 substances: Yes
California Proposition 65 substances 2: Lead / Nickel
Specifications: IEC 61984
UL / CSA: UL 1977 ECBT2.E235076 / CSA-C22.2 No. 182.3 ECBT8.E235076
Packaging size: 1
Net weight: 16.28 g
Country of origin: Germany
European customs tariff number: 85366990
GTIN: 5713140017344
eCl@ss: 27440205 Contact insert for industrial connectors

Objednávka produktu 09120062694

V případě potřeby nás můžete kontaktovat i na čísle +420 281 021 305
