Katalogové číslo: 09290023201

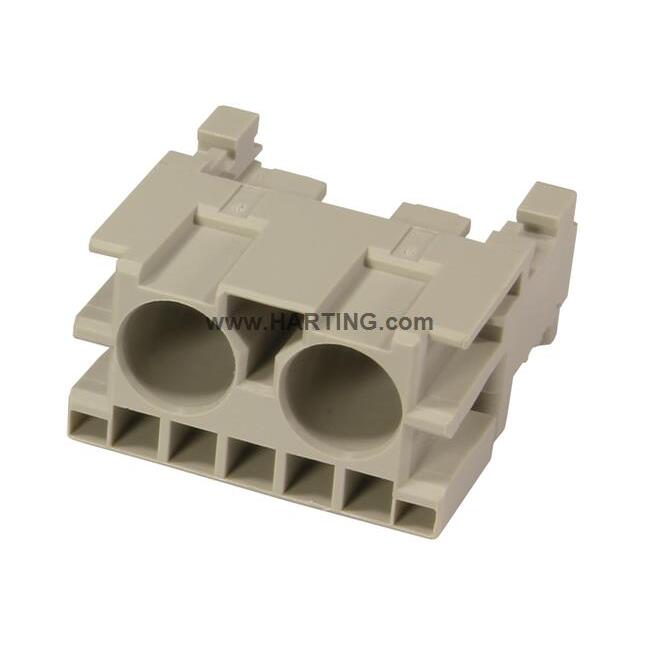

DIN Signal M0+2 angled male

Cena za ks

  • Výrobce:
  • Harting

65,70 Kč bez DPH

Parametry produktu 09290023201:

Series: DIN 41612
Element: Male connector
Description of the contact: Angled
Features: lead-free / Rated current of special contacts_ see data sheet of the selected contacts
Connection type: Motherboard to daughtercard / PCB to cable
Number of contacts: 2
PCB fixing: Without fixing flange
Contact rows: 1
Contact spacing (termination side): 10 mm
Contact spacing (mating side): 10 mm
Rated current: Rated current measured at 20 °C, see derating curve for details
Clearance distance: ≥ 1.2 mm
Creepage distance: ≥ 1.2 mm
Insulation resistance: _1012 Ω
Contact resistance: ≤ 20 mΩ
Limiting temperature: '-55 ... +125 °C
Test voltage Ur.m.s.: 1 kV
Isolation group: IIIa (175 ≤ CTI _ 400)
Hot plugging: No
Material (insert): Thermoplastic resin, glass-fibre filled
Colour (insert): RAL 7032 (pebble grey)
Material flammability class acc. to UL 94: V-0
RoHS: compliant
ELV status: compliant
China RoHS: e
REACH Annex XVII substances: Not contained
REACH Annex XIV substances: Not contained
REACH SVHC substances: Not contained
California Proposition 65 substances: Yes
California Proposition 65 substances 2: Antimony trioxide
Specifications: IEC 60603-2
Railway classification: F4_I3 acc. to NFF 16-101_102
Packaging size: 100
Net weight: 3.5 g
Country of origin: Germany
European customs tariff number: 85366990
GTIN: 5713140043091
eCl@ss: 27460201 PCB connector (board connector)
