09352270421 - SVK Elektronik, s.r.o.

Katalogové číslo: 09352270421

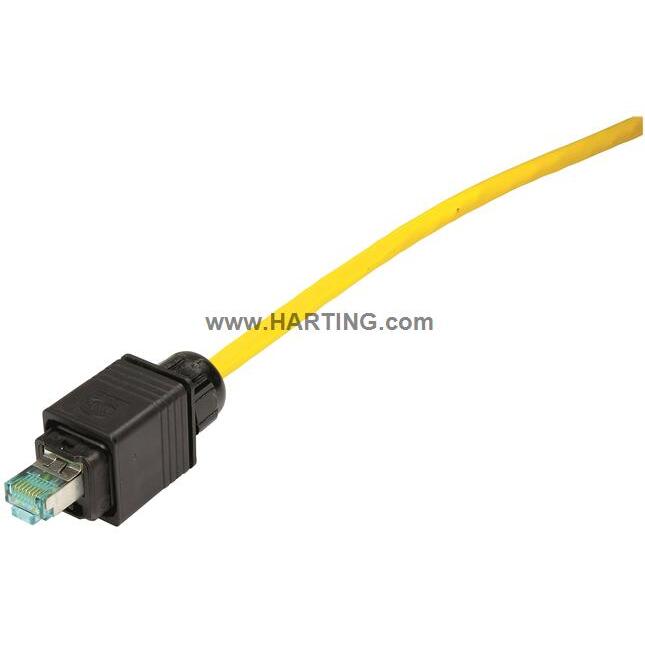

HanPP V14 RJ45 GL Cat6A plug 8p

Cena za ks

Series: Han® PushPull (V14)

Element: Connector sets

Features: Intuitive locking mechanism

Termination method: Piercing termination

Number of contacts: 8

Rated current: ‌ 1.75 A

Limiting temperature: '-40 ... +70 °C

Mating cycles: ≥ 750

Surface (contacts): Au over Ni Mating side / Sn over Ni Termination side

Material flammability class acc. to UL 94: V-0

RoHS: compliant with exemption

ELV status: compliant with exemption

China RoHS: 50

REACH Annex XVII substances: Not contained

REACH Annex XIV substances: Not contained

REACH SVHC substances: Yes

California Proposition 65 substances: Yes

California Proposition 65 substances 2: Lead / Nickel / Naphthalene

Specifications: IEC 61076-3-117 Variant 14 (V14) / IEC 60603-7 Mating face / EN 45545-2

UL / CSA: UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079

Packaging size: 10

Net weight: 22.14 g

Country of origin: Romania

European customs tariff number: 85389099

GTIN: 5713140054127

eCl@ss: 27440114 Rectangular connector (for field assembly)
