02011602102
Kód: 02011602102
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za ksDoplňkové parametry
| Kategorie: | Průmyslové konektory |
|---|---|

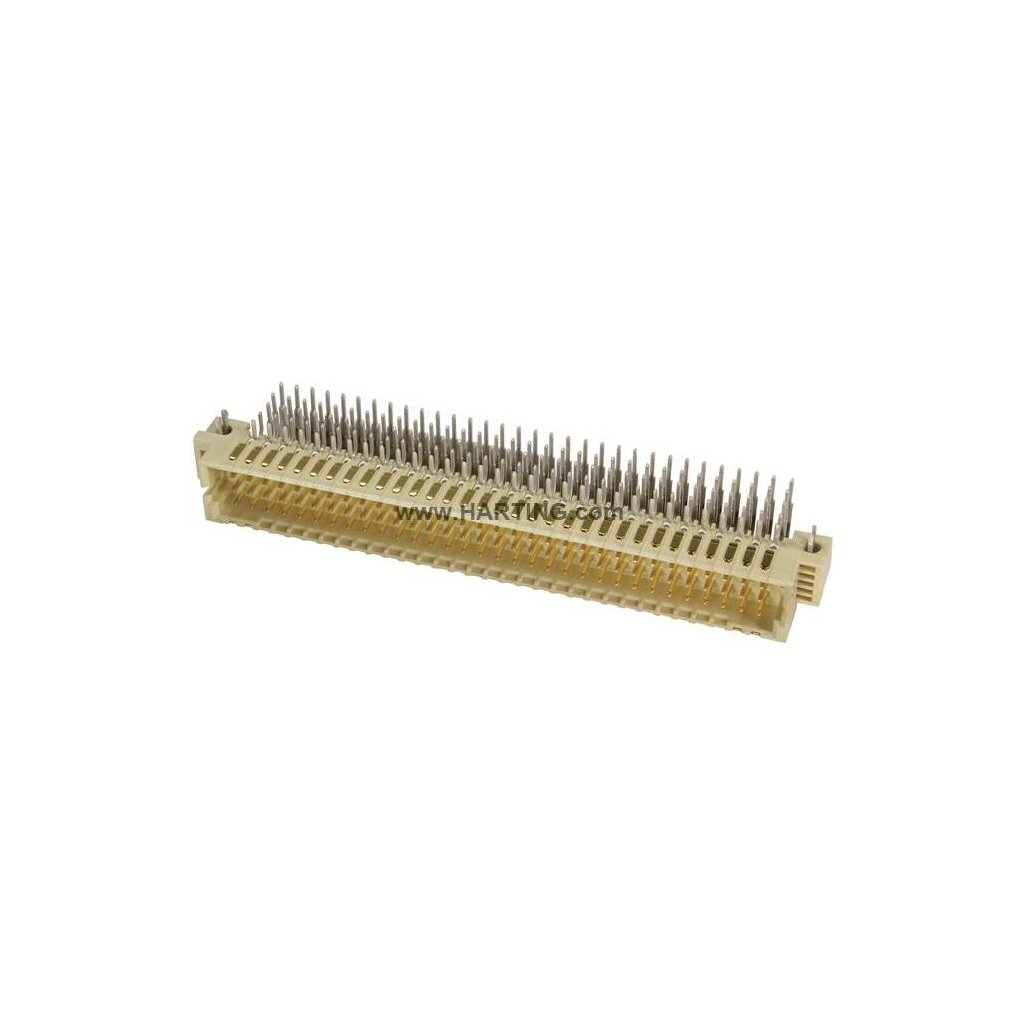

| Výrobce: | Harting |
| Series: | har-bus® 64 |
| Element: | Male connector |
| Description of the contact: | Angled |
| Features: | lead-free |
| Termination method: | Reflow soldering termination (THR) / Wave soldering termination |
| Connection type: | Motherboard to daughtercard / Extender card |
| Number of contacts: | 160 |
| Contact configuration: | Rows a, b, c, d and z, positions 1, 2, ... , 31, 32 |
| Leading contact on position: | d1 / d2 / d31 / d32 |
| PCB fixing: | With fixing flange / With snap-in clip |
| Contact rows: | 5 |
| Contact spacing (termination side): | 2.54 mm |
| Contact spacing (mating side): | 2.54 mm |
| Rated current: | 1 A |
| Rated current 2: | Rated current measured at 20 °C, see derating curve for details |
| Clearance distance: | 1.2 mm between 2 rows (a, b, c) / 1.2 mm between 2 rows (d, z) / 1.2 mm between 2 contacts in a row (a, b, c) / 1 mm between 2 contacts in a row (d, z) |
| Creepage distance: | 1.2 mm between 2 rows (a, b, c) / 1.2 mm between 2 rows (d, z) / 1.2 mm between 2 contacts in a row (a, b, c) / 1 mm between 2 contacts in a row (d, z) |
| Insulation resistance: | _1010 Ω |
| Contact resistance: | ≤20 mΩ for rows a, b, c / ≤30 mΩ for rows d, z |
| Limiting temperature: | '-55 ... +125 °C (during reflow soldering max. +240 °C for 15 s) |
| Insertion and withdrawal force: | ≤ 160 N |
| Performance level: | 2 / acc. to IEC 61076-4-113 |
| Mating cycles: | ≥ 250 |
| Test voltage Ur.m.s.: | 1 kV |
| Isolation group: | IIIa (175 ≤ CTI _ 400) |
| Hot plugging: | No |
| Material (insert): | Liquid crystal polymer (LCP) |
| Colour (insert): | Beige |
| Material (contacts): | Copper alloy |
| Surface (contacts): | Noble metal over Ni Mating side / Sn over Ni Termination side |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| California Proposition 65 substances: | Yes |
| California Proposition 65 substances 2: | Lead / Nickel |
| Specifications: | IEC 61076-4-113 |
| UL / CSA: | UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079 |
| Railway classification: | F1_I2 acc. to NFF 16-101_102 |
| Packaging size: | 5 |
| Net weight: | 26 g |
| Country of origin: | Germany |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140000094 |
| eCl@ss: | 27460201 PCB connector (board connector) |
