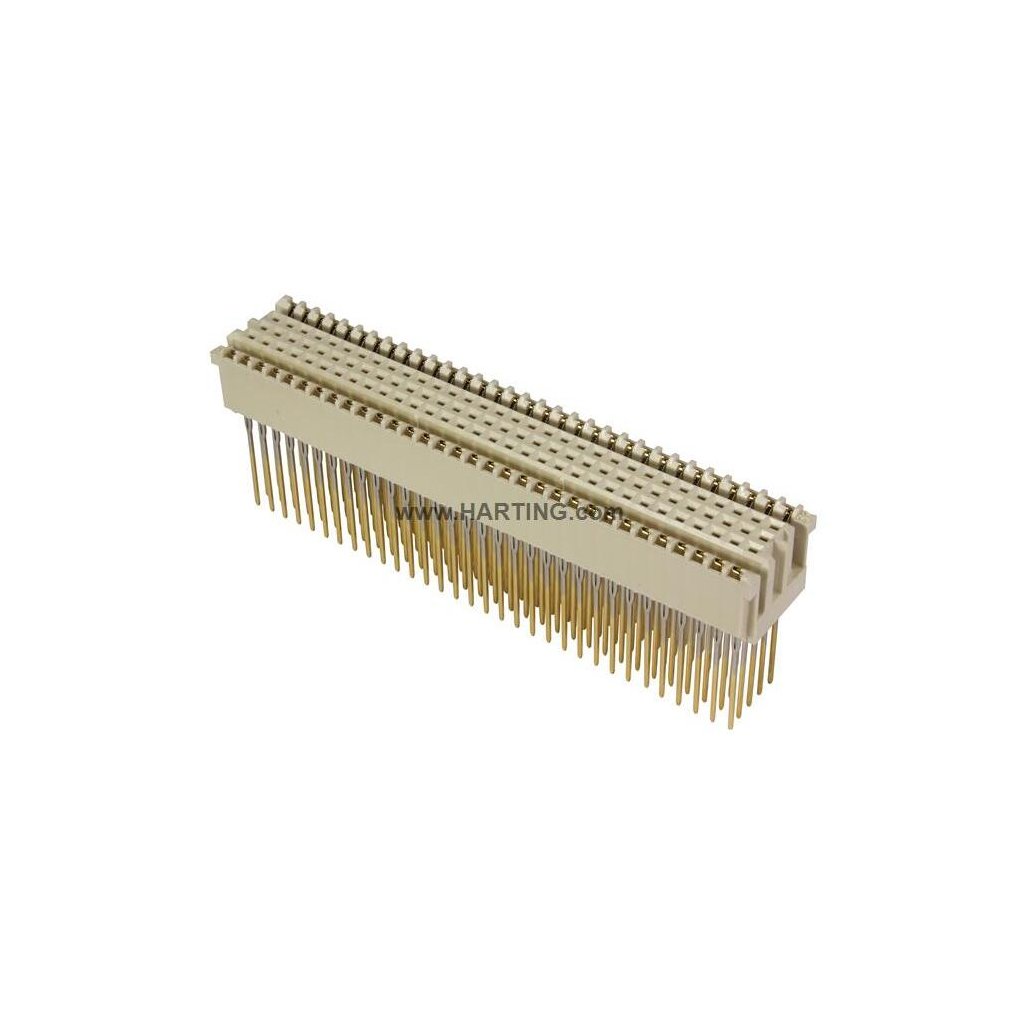

02021602302
Kód: 02021602302
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za ksDoplňkové parametry
| Kategorie: | Průmyslové konektory |
|---|---|
| Výrobce: | Harting |
| Series: | har-bus® 64 |
| Element: | Female connector |
| Description of the contact: | Straight |
| Features: | lead-free |
| Termination method: | Press-in termination |
| Connection type: | Motherboard to daughtercard |
| Number of contacts: | 160 |
| Contact configuration: | Rows a, b, c, d and z, positions 1, 2, ... , 31, 32 |
| PCB fixing: | Without fixing flange |
| Contact rows: | 5 |
| Contact spacing (termination side): | 2.54 mm |
| Contact spacing (mating side): | 2.54 mm |
| Rated current: | 1 A |
| Rated current 2: | Rated current measured at 20 °C, see derating curve for details |
| Clearance distance: | 1.2 mm between 2 rows (a, b, c) / 1.2 mm between 2 rows (d, z) / 1.2 mm between 2 contacts in a row (a, b, c) / 1 mm between 2 contacts in a row (d, z) |
| Creepage distance: | 1.2 mm between 2 rows (a, b, c) / 1.2 mm between 2 rows (d, z) / 1.2 mm between 2 contacts in a row (a, b, c) / 1 mm between 2 contacts in a row (d, z) |
| Insulation resistance: | _1010 Ω |
| Contact resistance: | ≤20 mΩ for rows a, b, c / ≤30 mΩ for rows d, z |
| Limiting temperature: | '-40 ... +105 °C upper limiting temperature limited by the pcb |
| Insertion and withdrawal force: | ≤ 160 N |
| Performance level: | 2 / acc. to IEC 61076-4-113 |
| Mating cycles: | ≥ 250 |
| Test voltage Ur.m.s.: | 1 kV |
| Isolation group: | IIIa (175 ≤ CTI _ 400) |
| Hot plugging: | No |
| Material (insert): | Liquid crystal polymer (LCP) |
| Colour (insert): | Beige |
| Material (contacts): | Copper alloy |
| Surface (contacts): | Noble metal over Ni Mating side / Noble metal over Ni Termination side |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| California Proposition 65 substances: | Yes |
| California Proposition 65 substances 2: | Nickel |
| Specifications: | IEC 61076-4-113 |
| UL / CSA: | UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079 |
| Railway classification: | F1_I2 acc. to NFF 16-101_102 |
| Packaging size: | 20 |
| Net weight: | 30.5 g |
| Country of origin: | Germany |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140000261 |
| eCl@ss: | 27460201 PCB connector (board connector) |
