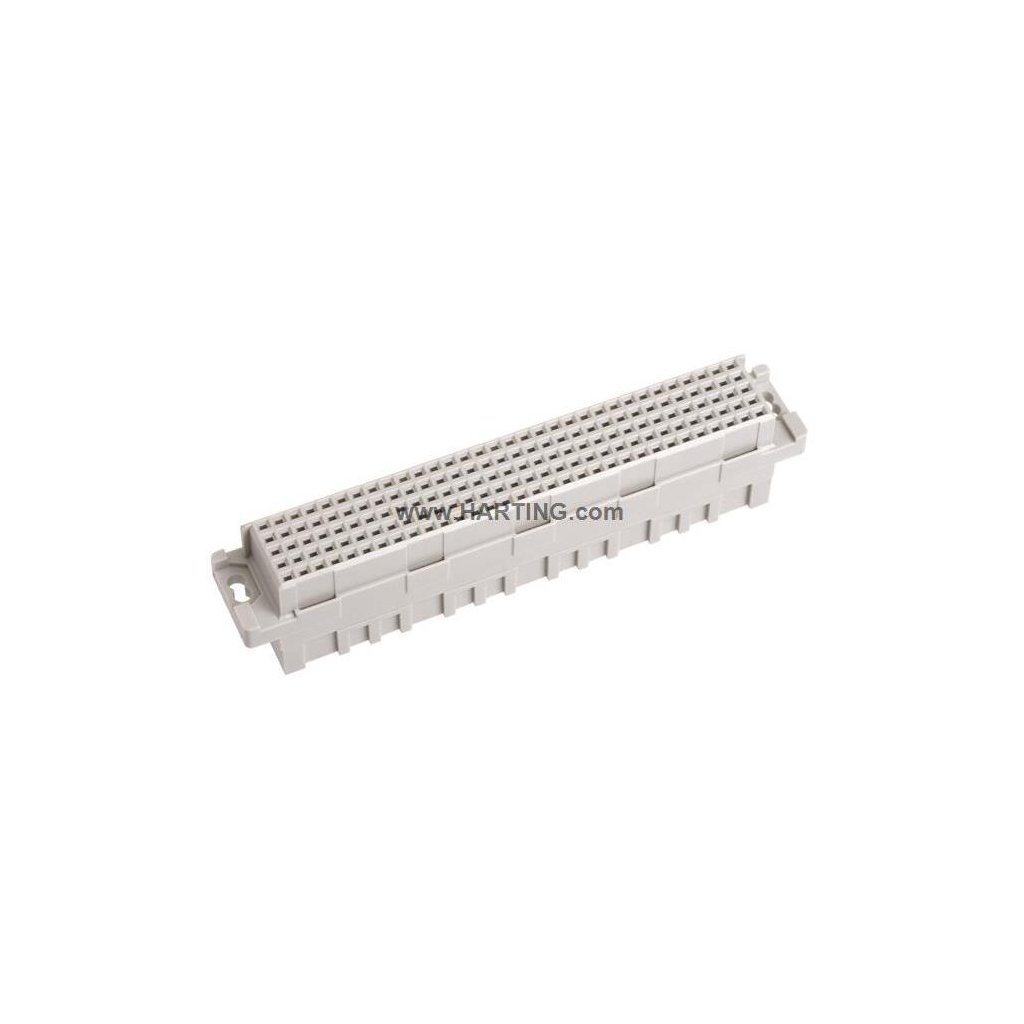

Detailní popis produktu
Cena za ksDoplňkové parametry
| Kategorie: | Průmyslové konektory |
|---|---|
| Výrobce: | Harting |
| Series: | DIN 41612 |
| Element: | Female connector |
| Features: | lead-free |
| Termination method: | Crimp termination |
| Connection type: | PCB to cable |
| Number of contacts: | 160 |
| PCB fixing: | With fixing flange |
| Contact rows: | 5 |
| Contact spacing (termination side): | 2.54 mm |
| Contact spacing (mating side): | 2.54 mm |
| Rated current: | Rated current measured at 20 °C, see derating curve for details |
| Clearance distance: | ≥ 1.2 mm |
| Creepage distance: | ≥ 1.2 mm |
| Insulation resistance: | _1012 Ω |
| Contact resistance: | ≤ 20 mΩ |
| Limiting temperature: | '-55 ... +125 °C |
| Insertion and withdrawal force: | ≤ 160 N |
| Test voltage Ur.m.s.: | 1 kV (contact-contact) / 1.55 kV (contact-ground) |
| Isolation group: | IIIa (175 ≤ CTI _ 400) |
| Hot plugging: | No |
| Material (insert): | Thermoplastic resin, glass-fibre filled |
| Colour (insert): | RAL 7032 (pebble grey) |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| Specifications: | IEC 61076-4-113 (complementary) |
| Railway classification: | F4_I3 acc. to NFF 16-101_102 |
| Packaging size: | 20 |
| Net weight: | 23.05 g |
| Country of origin: | Germany |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140000339 |
| eCl@ss: | 27460201 PCB connector (board connector) |
