02529010451
Kód: 02529010451
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za ks MOQ = 1 ksDoplňkové parametry
| Kategorie: | Průmyslové konektory |
|---|---|
| Výrobce: | Harting |
| Series: | har-modular® |

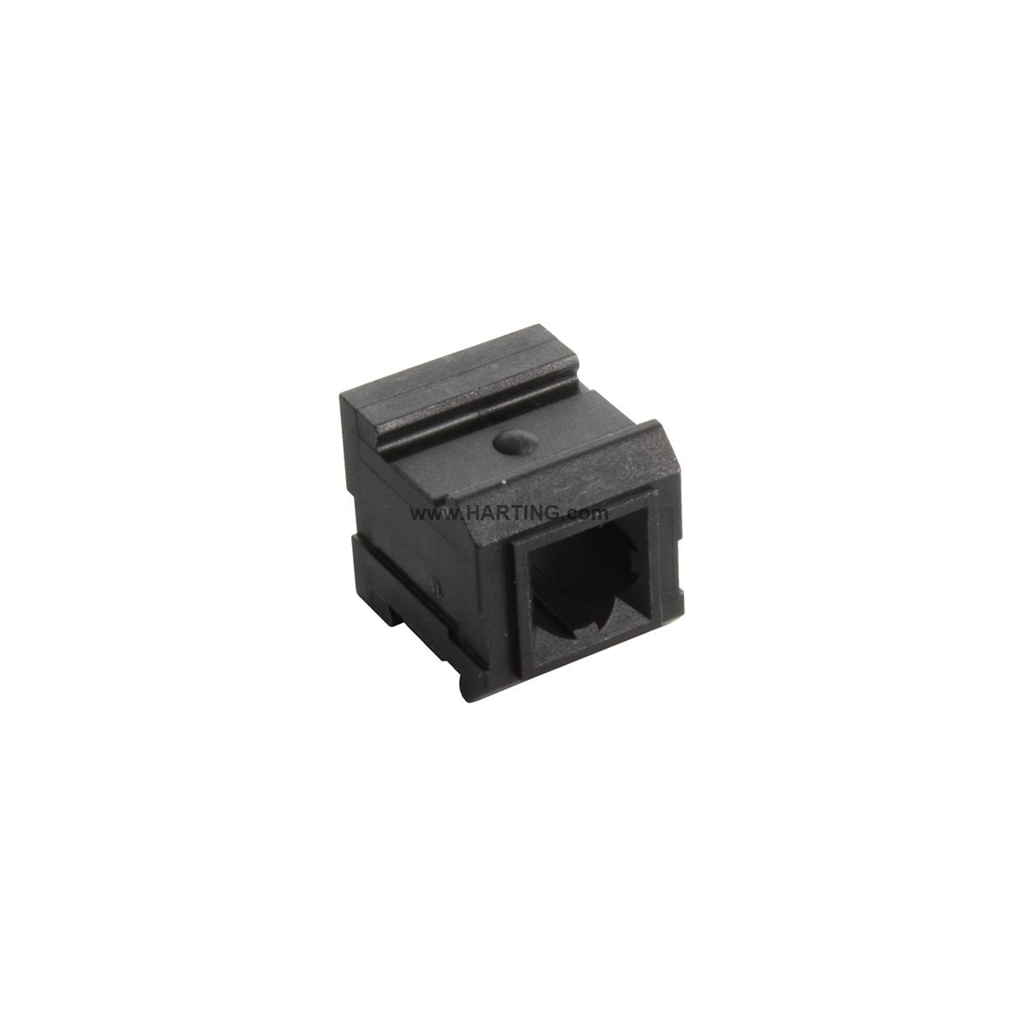

| Element: | Female connector |
| Description of the contact: | Straight |
| Connection type: | Motherboard to daughtercard / Mezzanine |
| Number of contacts: | 1 |
| Clearance distance: | 4 mm in the module / 2 mm to module edge |
| Creepage distance: | 4 mm in the module / 2 mm to module edge |
| Insulation resistance: | _1011 Ω |
| Limiting temperature: | '-55 ... +125 °C |
| Insertion and withdrawal force: | ≤ 10 N |
| Mating cycles: | ≥ 500 |
| Test voltage Ur.m.s.: | 1.55 kV |
| Isolation group: | I (600 ≤ CTI) |
| Hot plugging: | No |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| California Proposition 65 substances: | Not contained |
| UL / CSA: | UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079 |
| Railway classification: | F1_I2 acc. to NFF 16-101_102 |
| Packaging size: | 20 |
| Net weight: | 1.14 g |
| Country of origin: | Romania |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140197824 |
| eCl@ss: | 27460201 PCB connector (board connector) |
