Detailní popis produktu
Cena za ks
Doplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Harting |
| Series: | SEK |

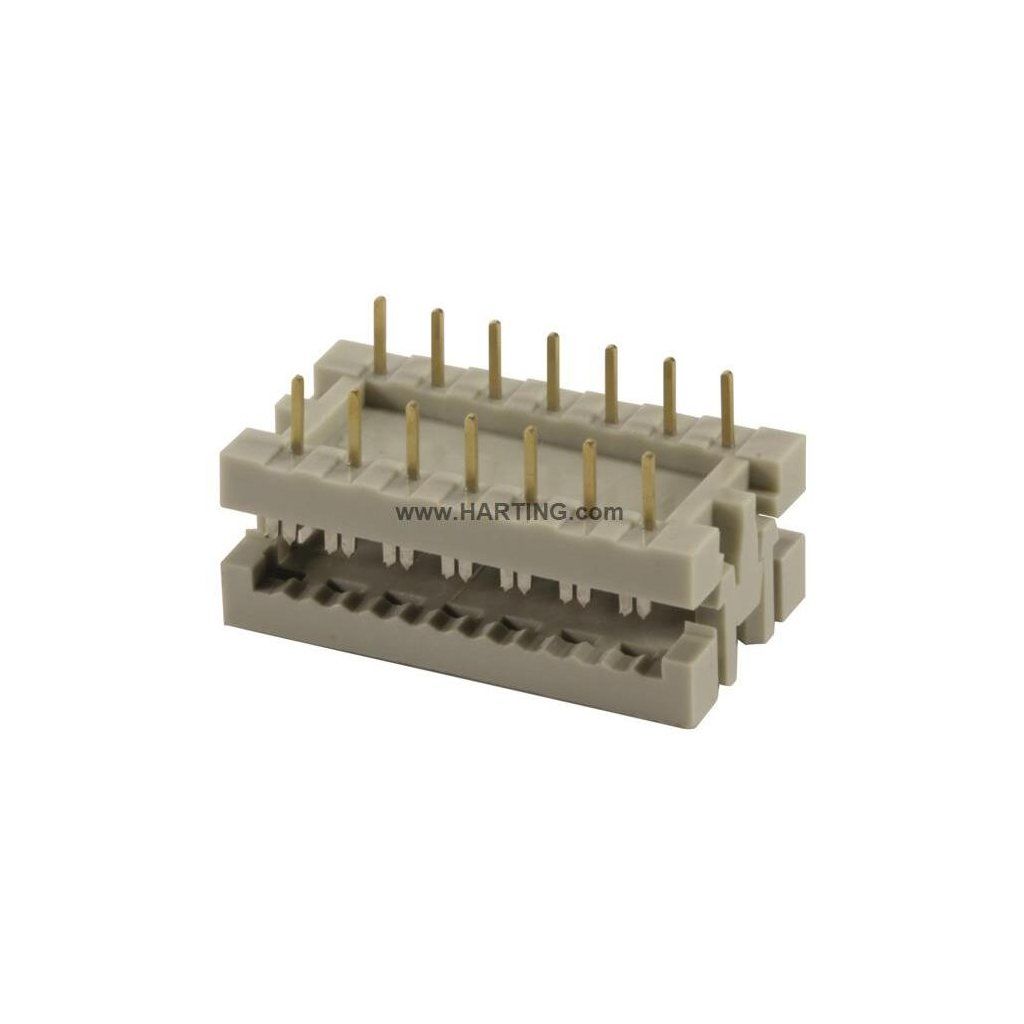

| Element: | DIP connector |
| Description of the contact: | Straight |
| Connection type: | PCB to cable |
| Number of contacts: | 14 |
| Contact rows: | 2 |
| Contact spacing (termination side): | 2.54 mm |
| Contact spacing (mating side): | 1.27 mm |
| Rated current: | 1 A |
| Insulation resistance: | _1012 Ω |
| Contact resistance: | ≤ 20 mΩ |
| Limiting temperature: | '-40 ... +125 °C |
| Test voltage Ur.m.s.: | 0.5 kV |
| Material (insert): | Thermoplastic resin (PC) |
| Colour (insert): | Beige |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| California Proposition 65 substances: | Yes |
| California Proposition 65 substances 2: | Nickel |
| Specifications: | IEC 60603-13 |
| Packaging size: | 130 |
| Net weight: | 0.1 g |
| Country of origin: | Germany |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140024045 |
| eCl@ss: | 27460202 PCB connector (conductor connection) |
