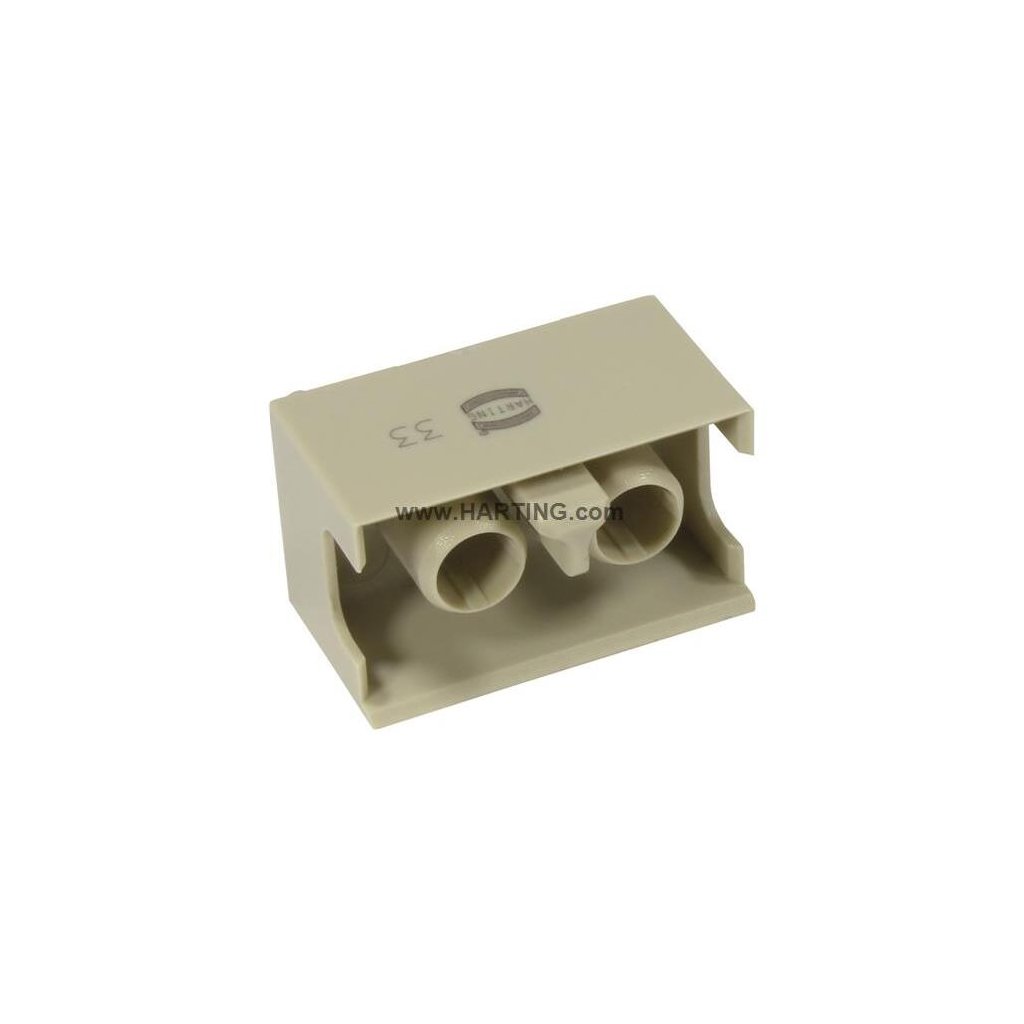

09290023401
Kód: 09290023401
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za ks
Doplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Harting |
| Series: | DIN 41612 |
| Element: | Female connector |
| Description of the contact: | Straight |
| Features: | lead-free / Rated current of special contacts_ see data sheet of the selected contacts |
| Connection type: | Motherboard to daughtercard / PCB to cable |
| Number of contacts: | 2 |
| PCB fixing: | Without fixing flange |
| Contact rows: | 1 |
| Contact spacing (termination side): | 10 mm |
| Contact spacing (mating side): | 10 mm |
| Rated current: | Rated current measured at 20 °C, see derating curve for details |
| Clearance distance: | ≥ 1.2 mm |
| Creepage distance: | ≥ 1.2 mm |
| Insulation resistance: | _1012 Ω |
| Contact resistance: | ≤ 20 mΩ |
| Limiting temperature: | '-55 ... +125 °C |
| Test voltage Ur.m.s.: | 1 kV |
| Isolation group: | IIIa (175 ≤ CTI _ 400) |
| Hot plugging: | No |
| Material (insert): | Thermoplastic resin, glass-fibre filled |
| Colour (insert): | RAL 7032 (pebble grey) |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| Specifications: | IEC 60603-2 |
| Railway classification: | F1_I2 acc. to NFF 16-101_102 |
| Packaging size: | 100 |
| Net weight: | 2.48 g |
| Country of origin: | Germany |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140043107 |
| eCl@ss: | 27460201 PCB connector (board connector) |
