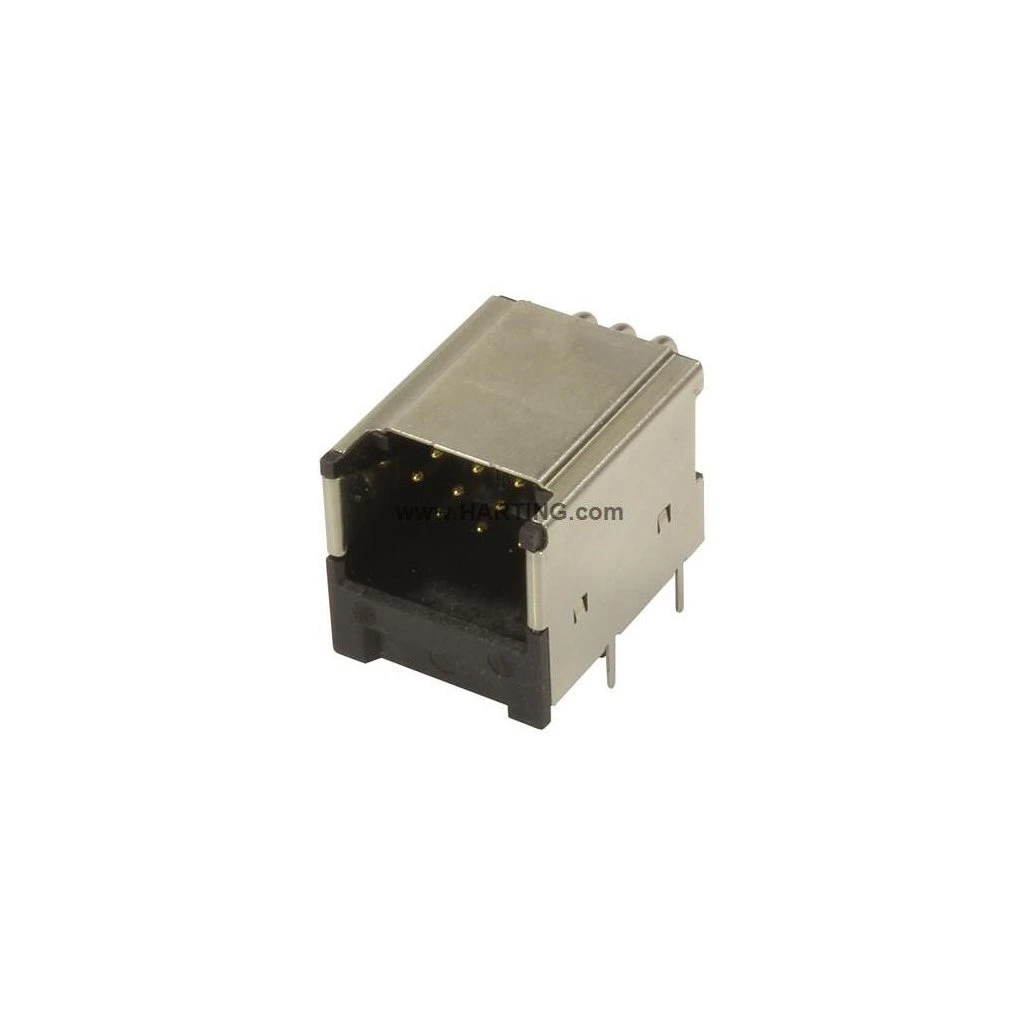

09350026001
Kód: 09350026001
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za ks
Doplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Harting |
| Series: | Han® PushPull (V14) |
| Element: | Female |
| Features: | Intuitive locking mechanism |
| Termination method: | Solder termination |
| Number of contacts: | 10 |
| Contact spacing (termination side): | 2.4 mm / 3 mm |
| Contact spacing (mating side): | 2.4 mm / 3 mm |
| Rated current: | 5 A |
| Clearance distance: | ≥ 1.4 mm |
| Creepage distance: | ≥ 1.4 mm |
| Insulation resistance: | _109 Ω |
| Contact resistance: | ≤ 10 mΩ |
| Limiting temperature: | '-40 ... +85 °C |
| Mating cycles: | ≥ 500 |
| Test voltage Ur.m.s.: | 1.5 kV (contact-contact) / 1.5 kV (contact-ground) |
| Isolation group: | I (600 ≤ CTI) |
| Material (insert): | Polyamide (PA) |
| Colour (insert): | Black |
| Material (contacts): | Copper alloy |
| Surface (contacts): | Noble metal over Ni Mating side / Sn over Ni Termination side |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant with exemption |
| ELV status: | compliant with exemption |
| China RoHS: | 50 |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Yes |
| California Proposition 65 substances: | Yes |
| California Proposition 65 substances 2: | Lead / Nickel |
| Specifications: | IEC 61076-3-117 Variant 14 (V14) |
| UL / CSA: | UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079 |
| Packaging size: | 40 |
| Net weight: | 6.12 g |
| Country of origin: | China |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140053816 |
| eCl@ss: | 27440205 Contact insert for industrial connectors |
