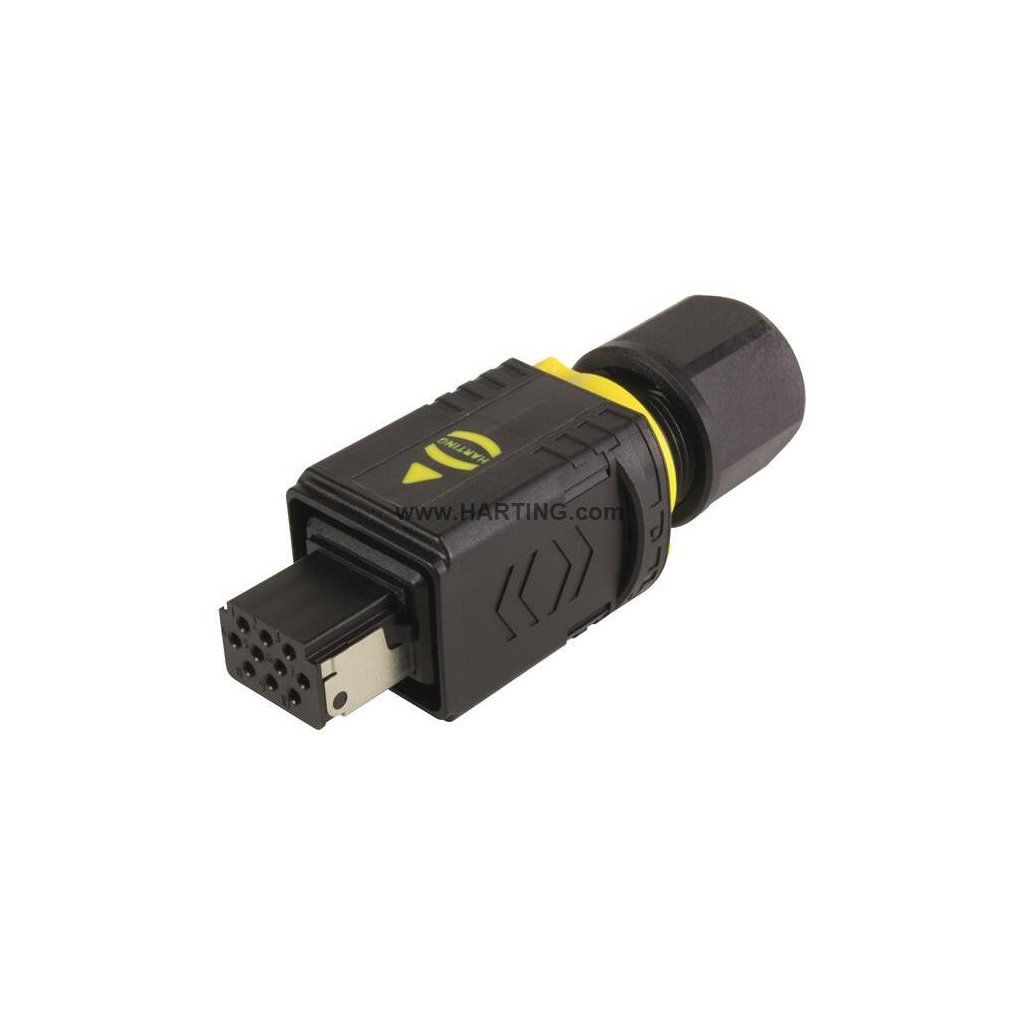

09451459011
Kód: 09451459011
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za ks
Doplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Harting |
| Series: | HARTING PushPull (V4) |
| Element: | Cable connector |
| Termination method: | Crimp termination |
| Number of contacts: | 10 |
| Contact spacing (termination side): | 2.4 mm / 3 mm |
| Contact spacing (mating side): | 2.4 mm / 3 mm |
| Rated current: | 5 A |
| Clearance distance: | ≥ 1.1 mm |
| Creepage distance: | ≥ 1.1 mm |
| Insulation resistance: | _109 Ω |
| Contact resistance: | ≤ 10 mΩ |
| Limiting temperature: | '-40 ... +85 °C |
| Mating cycles: | ≥ 500 |
| Test voltage Ur.m.s.: | 1.5 kV (contact-contact) / 1.5 kV (contact-ground) |
| Isolation group: | I (600 ≤ CTI) |
| Material (contacts): | Copper alloy |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| California Proposition 65 substances: | Yes |
| California Proposition 65 substances 2: | Nickel / Naphthalene |
| Specifications: | IEC 61076-3-106 Variant 4 (V4) / EN 45545-2 |
| UL / CSA: | UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079 |
| Packaging size: | 10 |
| Net weight: | 37.85 g |
| Country of origin: | Romania |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140223578 |
| eCl@ss: | 27440114 Rectangular connector (for field assembly) |
