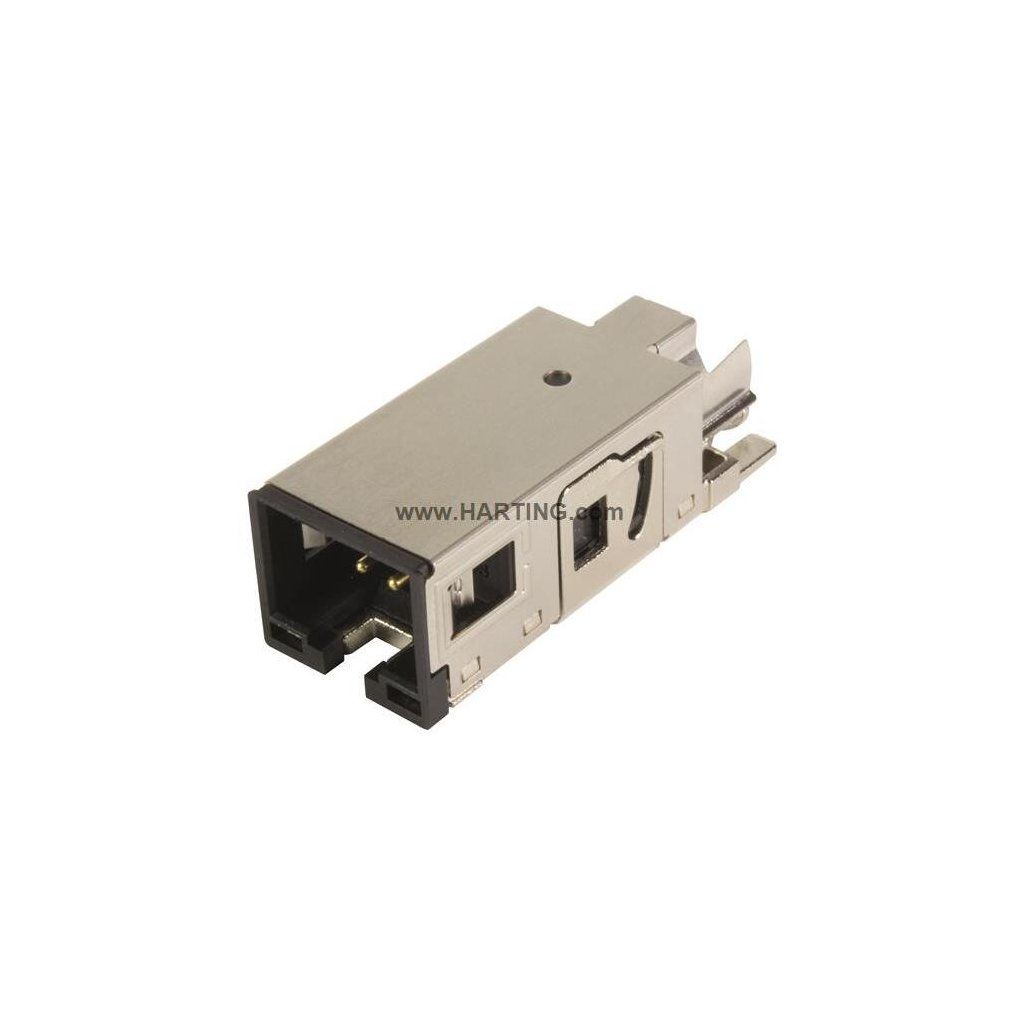

09455459010
Kód: 09455459010
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za ks
MOQ = 1 ks
Doplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Harting |
| Series: | HARTING PushPull (V4) |
| Element: | Inserts |
| Termination method: | Crimp termination |
| Number of contacts: | 10 |
| Contact spacing (termination side): | 2.4 mm / 3 mm |
| Contact spacing (mating side): | 2.4 mm / 3 mm |
| Rated current: | 5 A |
| Clearance distance: | ≥ 1.4 mm |
| Creepage distance: | ≥ 1.4 mm |
| Insulation resistance: | _109 Ω |
| Contact resistance: | ≤ 10 mΩ |
| Limiting temperature: | '-40 ... +85 °C |
| Mating cycles: | ≥ 500 |
| Test voltage Ur.m.s.: | 1.5 kV (contact-contact) / 1.5 kV (contact-ground) |
| Isolation group: | I (600 ≤ CTI) |
| Material (contacts): | Copper alloy |
| Surface (contacts): | Noble metal over Ni Mating side / Noble metal over Ni Termination side |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| California Proposition 65 substances: | Yes |
| California Proposition 65 substances 2: | Lead / Nickel |
| Specifications: | IEC 61076-3-106 Variant 4 (V4) |
| UL / CSA: | UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079 |
| Packaging size: | 1 |
| Net weight: | 19 g |
| Country of origin: | Germany |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140061453 |
| eCl@ss: | 27440205 Contact insert for industrial connectors |
