14310313101160
Kód: 14310313101160
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za ksDoplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Harting |
| Series: | har-flexicon® |

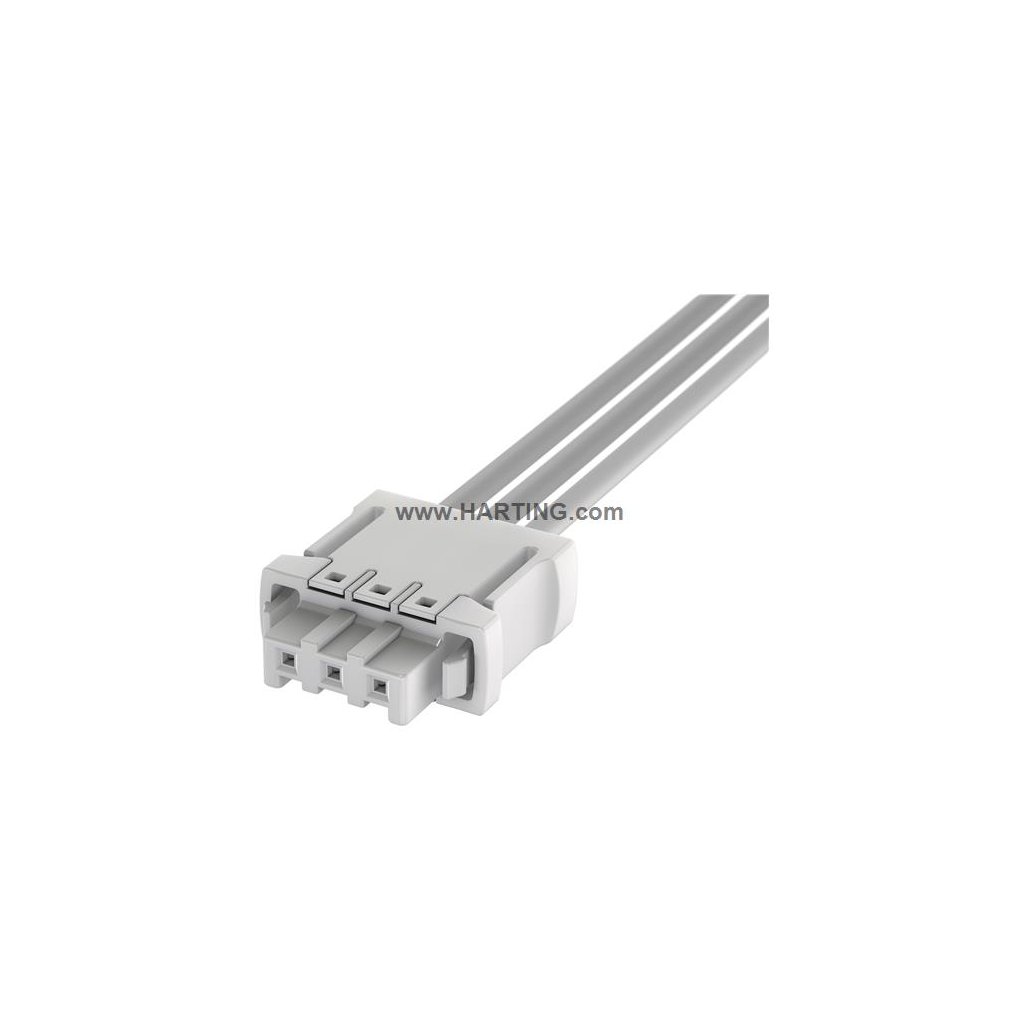

| Element: | Connector |
| Features: | Reconnection_ 10 times (only with same or larger cross section) |
| Termination method: | Push-in-spring-cage termination |
| Connection type: | PCB to cable |
| Number of contacts: | 3 |
| Contact rows: | 1 |
| Contact spacing (termination side): | 2.54 mm |
| Rated current: | 6 A |
| Rated current 2: | 6 A |
| Clearance distance: | 1.5 mm |
| Creepage distance: | 1.6 mm |
| Insulation resistance: | _109 Ω |
| Contact resistance: | _109 Ω |
| Limiting temperature: | '-40 ... +125 °C |
| Isolation group: | IIIa (175 ≤ CTI _ 400) |
| Material (insert): | Liquid crystal polymer (LCP) |
| Colour (insert): | White |
| Material (contacts): | Copper alloy / Spring steel |
| Surface (contacts): | Sn Mating side |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| California Proposition 65 substances: | Not contained |
| UL / CSA: | UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079 |
| Packaging size: | 100 |
| Net weight: | 1.22 g |
| Country of origin: | China |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140209633 |
| eCl@ss: | 27460201 PCB connector (board connector) |
