Detailní popis produktu
Cena za ks MOQ = 1 ksDoplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|

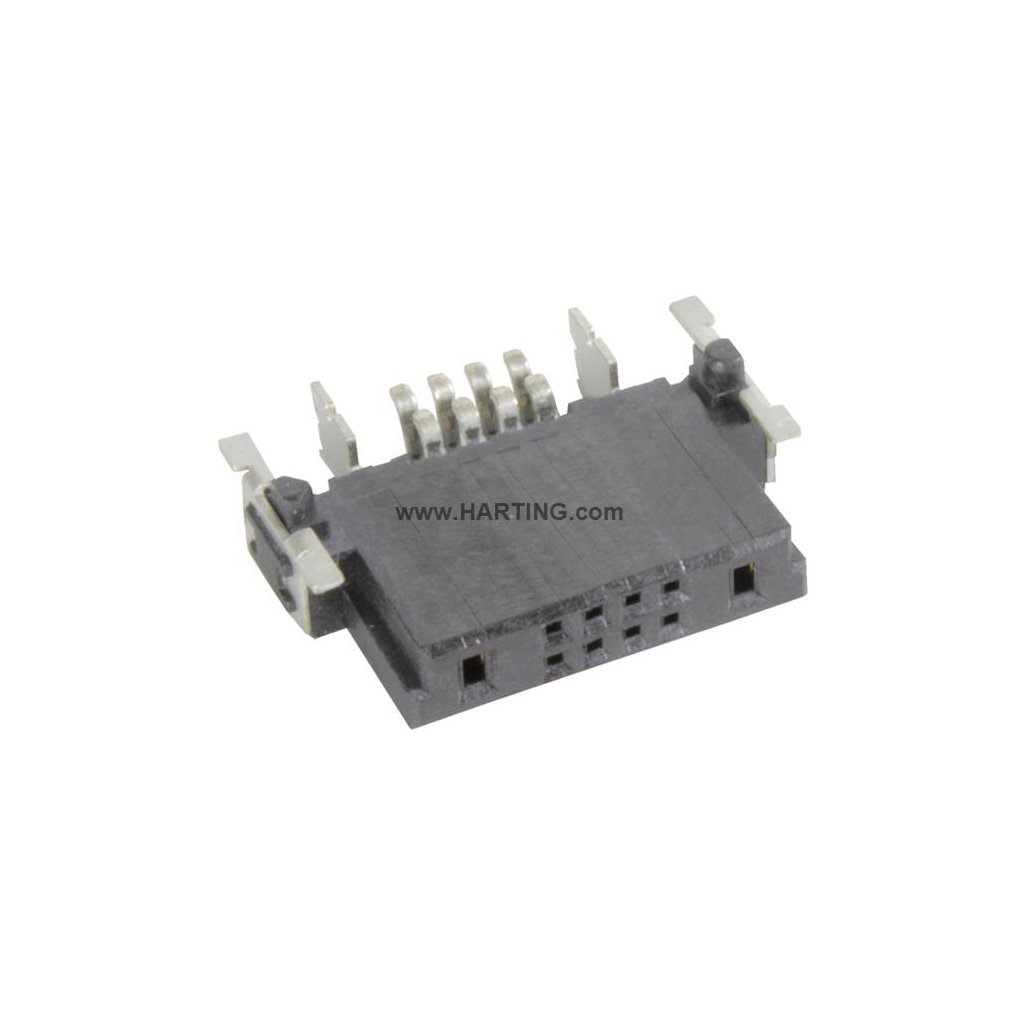

| Výrobce: | Harting |
| Series: | har-flex® |
| Element: | Female connector |
| Description of the contact: | Angled |
| Termination method: | Reflow soldering termination (SMT) |
| Connection type: | Motherboard to daughtercard / Extender card |
| Number of contacts: | 10 |
| Contact spacing (termination side): | 1.27 mm / 2.54 mm |
| Contact spacing (mating side): | 1.27 mm / 2.54 mm |
| Clearance distance: | ≥0.4 mm Signal contacts / ≥1.74 mm Power contacts / ≥1.11 mm Signal to power contacts |
| Creepage distance: | ≥0.4 mm PCB_ Signal contacts / ≥1.74 mm PCB_ Power contacts / ≥1.11 mm PCB_ Signal to power contacts / ≥0.4 mm Connector_ Signal contacts / ≥1.89 mm Connector_ Power contacts / ≥2.09 mm Connector_ Signal to power contacts |
| Insulation resistance: | _1010 Ω |
| Contact resistance: | _1010 Ω |
| Limiting temperature: | '-55 ... +125 °C |
| Performance level: | 1 |
| Mating cycles: | ≥ 500 |
| Test voltage Ur.m.s.: | 0.5 kV Signal / 1.39 kV Signal _ Power / 1.39 kV Power _ Power |
| Isolation group: | IIIa (175 ≤ CTI _ 400) |
| Material (insert): | Liquid crystal polymer (LCP) |
| Colour (insert): | Black |
| Material (contacts): | Copper alloy |
| Surface (contacts): | Noble metal over Ni Mating side / Sn over Ni Termination side |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| California Proposition 65 substances: | Not contained |
| Packaging size: | 1 |
| Net weight: | 7.333 g |
| Country of origin: | China |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140205161 |
| eCl@ss: | 27460201 PCB connector (board connector) |
