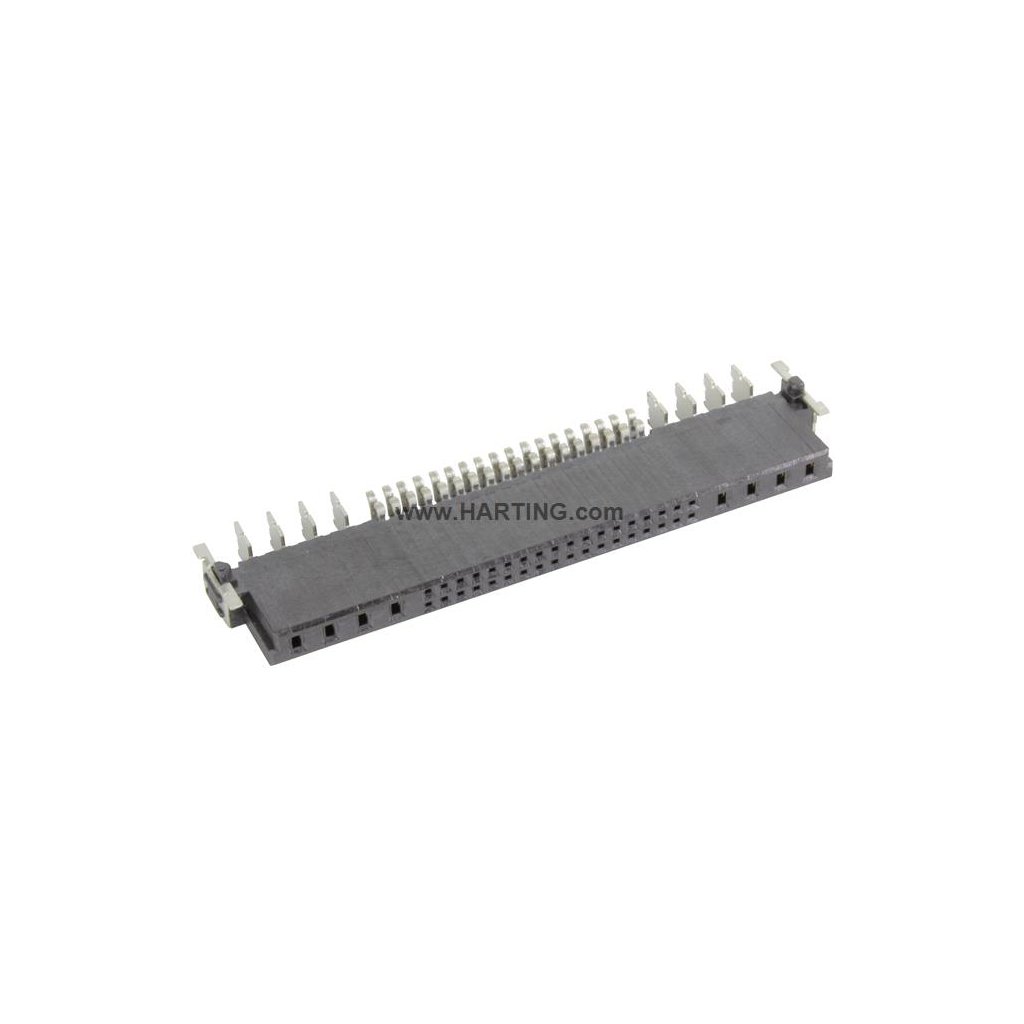

15858362601000
Kód: 15858362601000
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za role MOQ = 1 roleDoplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Harting |
| Series: | har-flex® |
| Element: | Female connector |
| Description of the contact: | Angled |
| Termination method: | Reflow soldering termination (SMT) |
| Connection type: | Motherboard to daughtercard / Extender card |
| Number of contacts: | 44 |
| Contact spacing (termination side): | 1.27 mm / 2.54 mm |
| Contact spacing (mating side): | 1.27 mm / 2.54 mm |
| Rated current: | 22.5 A |
| Rated current 2: | 22.5 A |
| Clearance distance: | ≥0.4 mm Signal contacts / ≥1.74 mm Power contacts / ≥1.11 mm Signal to power contacts |
| Creepage distance: | ≥0.4 mm PCB_ Signal contacts / ≥1.74 mm PCB_ Power contacts / ≥1.11 mm PCB_ Signal to power contacts / ≥0.4 mm Connector_ Signal contacts / ≥1.89 mm Connector_ Power contacts / ≥2.09 mm Connector_ Signal to power contacts |
| Insulation resistance: | _1010 Ω |
| Contact resistance: | _1010 Ω |
| Limiting temperature: | '-55 ... +125 °C |
| Performance level: | 1 |
| Mating cycles: | ≥ 500 |
| Test voltage Ur.m.s.: | 0.5 kV Signal / 1.39 kV Signal _ Power / 1.39 kV Power _ Power |
| Isolation group: | IIIa (175 ≤ CTI _ 400) |
| Material (insert): | Liquid crystal polymer (LCP) |
| Colour (insert): | Black |
| Material (contacts): | Copper alloy |
| Surface (contacts): | Noble metal over Ni Mating side / Sn over Ni Termination side |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant |
| ELV status: | compliant |
| China RoHS: | e |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Not contained |
| California Proposition 65 substances: | Not contained |
| Packaging size: | 1 |
| Net weight: | 2,638 g |
| Country of origin: | China |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140205239 |
| eCl@ss: | 27460201 PCB connector (board connector) |
