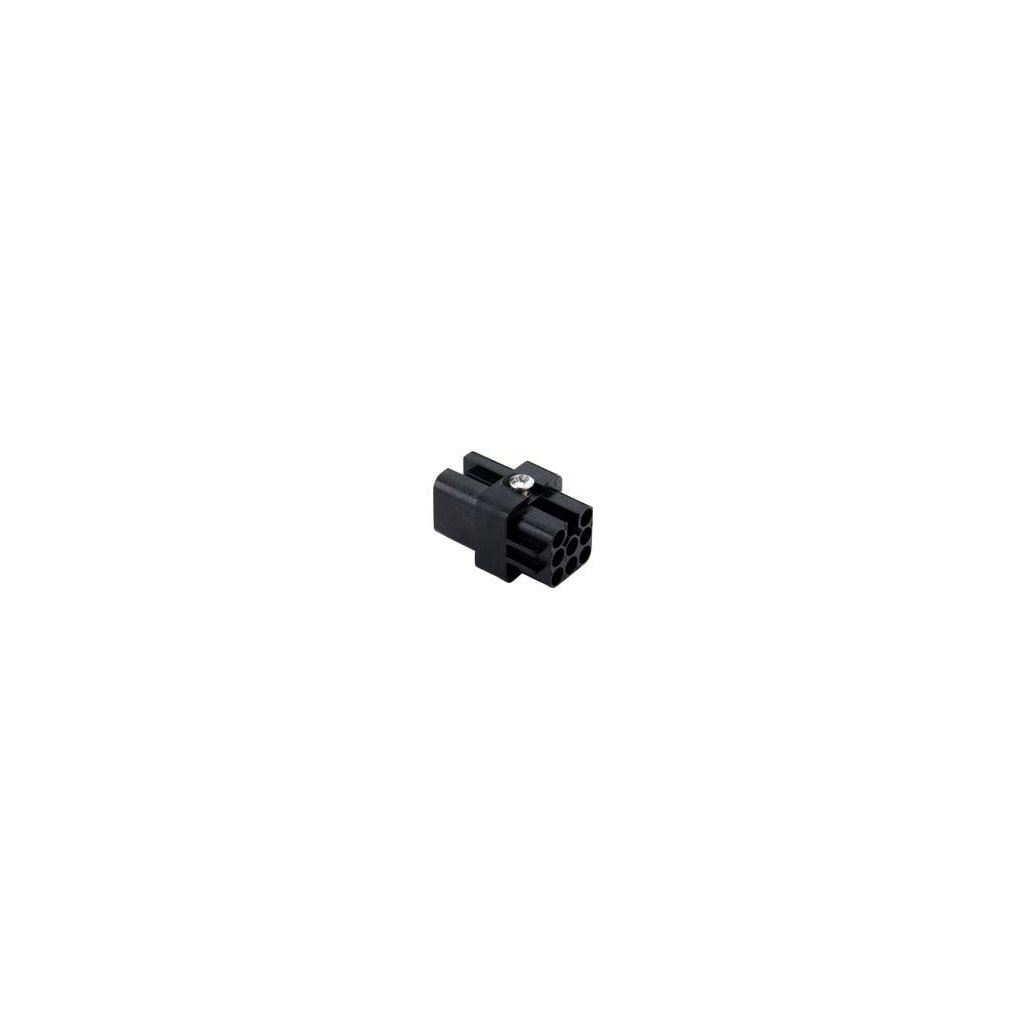

CDF 07 N
Kód: CDF 07 N
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Vložky |
|---|---|
| Výrobce: | Ilme |
| Product type: | Insert |
| Series: | CD |
| Size: | size / 21.21 / |
| Specification: | Black colour / Black colour / |
| IP degree of protection: | IP20 without enclosure, IP44 / IP66 / IP67 / IP68 / IP69 with enclosure |
| Weight: | 9,00 g |
| Operating temperature range (min, max): | '-40 °C ... +125 °C |
| Main material: | Polycarbonate (PC) |
| Colour: | RAL 9005 black |
| SCIP number: | 5a97d67d-dd49-45fe-94c0-411f951ef5ee |
| EAN13 code: | 8015747014304 |
| Sub-packaging description: | Carton tray |
| Sub-packaging EAN barcode: | 8015747112154 |
| Sub-packaging quantity: | 40 Pcs |
| Sub-packaging weight: | 0,36 kg |
| Sub-packaging height: | 35,00 mm |
| Sub-packaging length: | 197,00 mm |
| Sub-packaging volume: | 0,78 dm³ |
| Sub-packaging width: | 113,00 mm |
| China RoHs - EFUP: | e |
| Connection type: | crimp connection |
| Contact resistance: | ≤ 3 mΩ |
| eCl@ss 8.1: | 27440205 |
| ETIM 7.0: | EC000438 |
| Gender: | Female |
| Insulation resistance: | ≥ 10 GΩ |
| Mating cycles: | ≥ 500 |
| REACH SVHC substances: | YesLead |
| RoHs conformity: | Compliant with exemption6(c) / copper alloy containing up to 4% lead by weight |
| UL 94 flammability rating: | V-0 |
| Certifications: | CSAc, CQC, DNV, BV, EAC |
| cUL: | ECBT8 |
| UL: | ECBT2 |
| Conductors stripping length: | 8 mm (6 mm for 2,5 mm²) |
| Current: | / 10 A / |
| Characteristics according to EN 61984: | 10A 250V 4kV 3 |
| N. of poles: | 7 poles + |
| Pollution degree: | 3 |
| Rated impulse withstand voltage: | 4 kV |
| Rated voltage according to UL/CSA: | 600 V |
| Reference standard: | EN 61984 / 2009-06 |
| Tightening torque for fixing screws: | M3 / 0,5 Nm |
| Tightening torque for PE connection: | M4 / 1,2 Nm, 10,6 lb,in (Ph2 or 1,0x5,5mm ) |
| Voltage: | / 250 /   |
