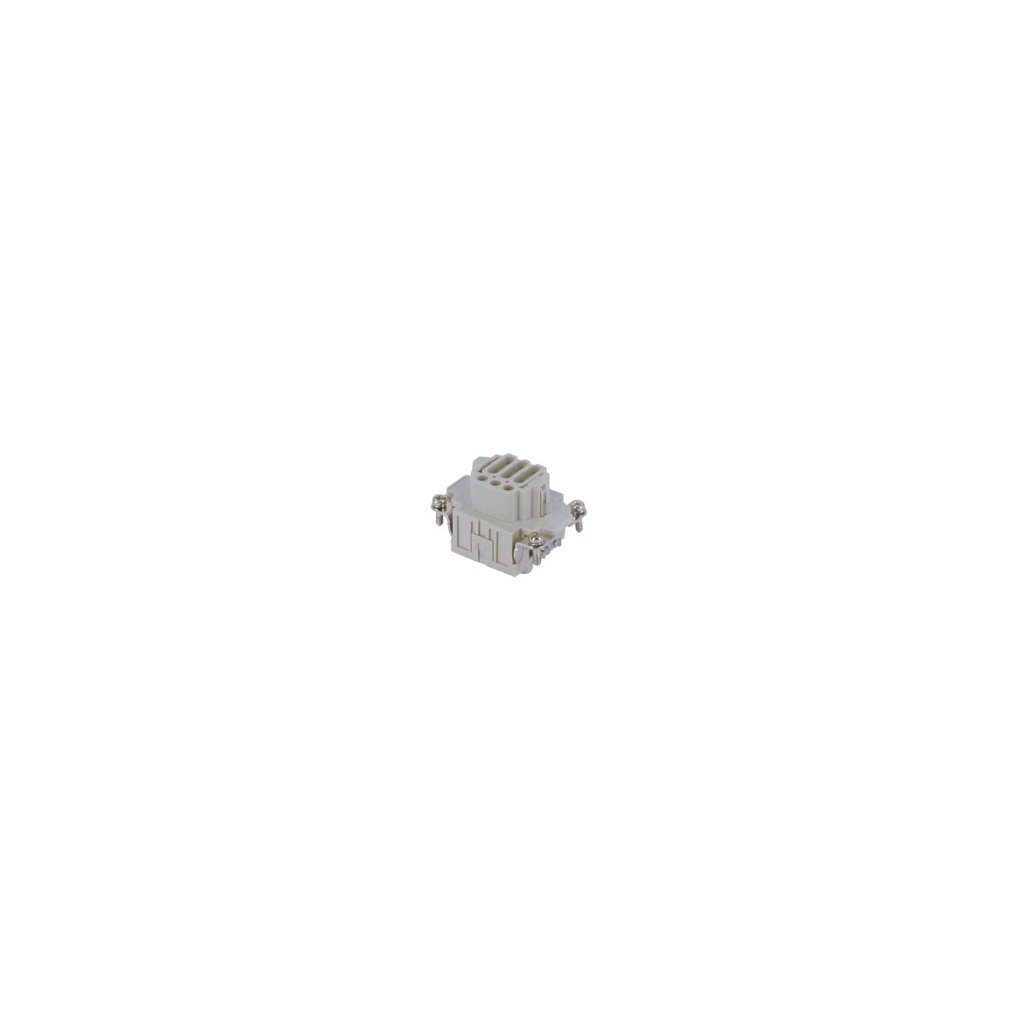

CDSF 09
Kód: CDSF 09
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Vložky |
|---|---|
| Výrobce: | Ilme |
| Product type: | Insert |
| Series: | CDS |
| Size: | size / 44.27 / |
| IP degree of protection: | IP20 without enclosure, IP65 / IP66 / IP68 / IP69 with enclosure |
| Weight: | 50,60 g |
| Operating temperature range (min, max): | '-40 °C ... +125 °C |
| Main material: | Polycarbonate (PC) |
| Colour: | RAL 7032 grey |
| SCIP number: | 1a9c93ff-0445-4a16-81e3-1609ac5274d6 |
| EAN13 code: | 8015747148566 |
| Packaging length: | 270,00 mm |
| Packaging height: | 75,00 mm |
| Packaging width: | 180,00 mm |
| Packaging weight: | 3,35 kg |
| Packaging volume: | 3,65 dm³ |
| Packaging description: | Carton box |
| Packaging quantity: | 60 Pcs |
| Packaging EAN code: | 8015747148573 |
| Sub-packaging description: | Carton tray |
| Sub-packaging EAN barcode: | 8015747148580 |
| Sub-packaging quantity: | 10 Pcs |
| Sub-packaging weight: | 0,56 kg |
| Sub-packaging height: | 36,00 mm |
| Sub-packaging length: | 104,00 mm |
| Sub-packaging volume: | 0,67 dm³ |
| Sub-packaging width: | 180,00 mm |
| China RoHs - EFUP: | 50 |
| Connection type: | spring terminal connection |
| Contact resistance: | ≤ 3 mΩ |
| ETIM 7.0: | EC000438 |
| Gender: | Female |
| Insulation resistance: | ≥ 10 GΩ |
| Mating cycles: | ≥ 500 |
| REACH SVHC substances: | YesLead |
| RoHs conformity: | Compliant with exemption6(c) / copper alloy containing up to 4% lead by weight |
| UL 94 flammability rating: | V-0 |
| Certifications: | CSA, CQC, DNV, BV, EAC |
| cUL: | ECBT8 |
| UL: | ECBT2 |
| AWG size: | / 26 / - / 14 / |
| Conductors stripping length: | 9...11 mm |
| Contact type: | turned silver plated |
| Current: | / 10 A / |
| Wire cross-section: | / 0,14 mm² / - / 2,50 mm² / |
| Characteristics according to EN 61984: | 10A 400V 6kV 3 |
| N. of poles: | 9 poles + |
| Pollution degree: | 3 |
| Rated impulse withstand voltage: | 6 kV |
| Rated voltage according to UL/CSA: | 600 V |
| Reference standard: | EN 61984 / 2009-06 |
| Voltage: | / 400 /   |
