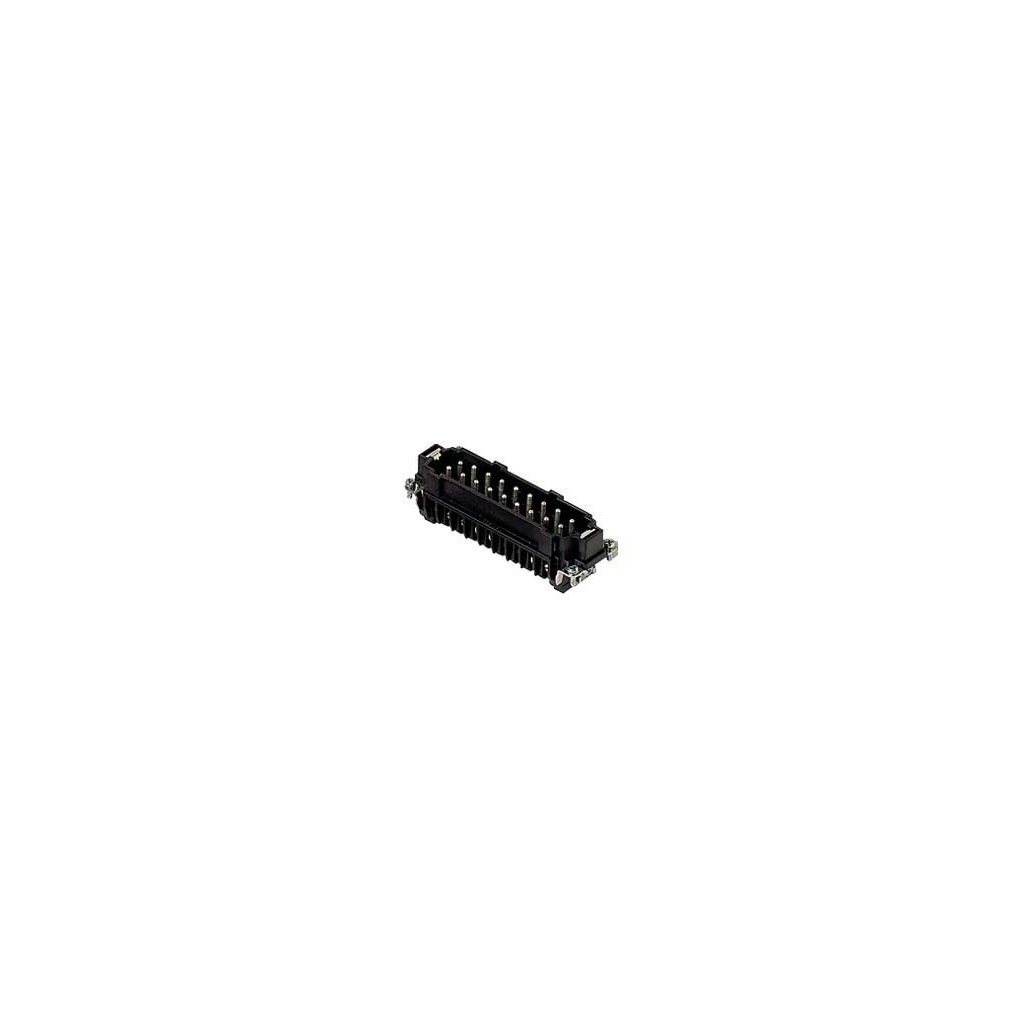

CMEM 16 N
Kód: CMEM 16 N
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Vložky |
|---|---|
| Výrobce: | Ilme |
| Product type: | Insert |
| Series: | CME |
| Size: | size / 104.62 / |
| Specification: | Black colour / |
| IP degree of protection: | IP20 without enclosure, IP65 / IP66 with enclosure |
| Weight: | 100,00 g |
| Operating temperature range (min, max): | '-40 °C ... +125 °C |
| Main material: | Polycarbonate (PC) |
| Other materials: | Contacts / copper alloy |
| Colour: | RAL 9005 black |
| SCIP number: | 1a9c93ff-0445-4a16-81e3-1609ac5274d6 |
| EAN13 code: | 8015747148917 |
| Sub-packaging description: | Carton tray |
| Sub-packaging EAN barcode: | 8015747167659 |
| Sub-packaging quantity: | 5 Pcs |
| Sub-packaging weight: | 0,50 kg |
| Sub-packaging height: | 36,00 mm |
| Sub-packaging length: | 113,00 mm |
| Sub-packaging volume: | 0,73 dm³ |
| Sub-packaging width: | 180,00 mm |
| China RoHs - EFUP: | 50 |
| Connection type: | screw terminal connection |
| ETIM 7.0: | EC000438 |
| Gender: | Male |
| Insulation resistance: | ≥ 10 GΩ |
| Mating cycles: | ≥ 500 |
| REACH SVHC substances: | YesLead |
| RoHs conformity: | Compliant with exemption6(c) / copper alloy containing up to 4% lead by weight |
| UL 94 flammability rating: | V-0 |
| Certifications: | CSA, CQC, DNV, BV, EAC |
| cUL: | ECBT8 |
| UL: | ECBT2 |
| AWG size: | / 18 / - / 14 / |
| Contact type: | turned silver plated |
| Current: | / 16 A / |
| Wire cross-section: | / 0,75 mm² / - / 2,50 mm² / |
| Characteristics according to EN 61984: | 16A 400 / 690V 6kV 3 (aux / 16A 500V 6kV 3) |
| N. of poles: | 32 poles + |
| Pollution degree: | 3 |
| Rated impulse withstand voltage: | 6 kV |
| Rated voltage according to UL/CSA: | 600V |
| Reference standard: | EN 61984 / 2009-06 |
| Voltage: | / 400 / - / 690 /   |
| Auxiliary poles: | 2C |
