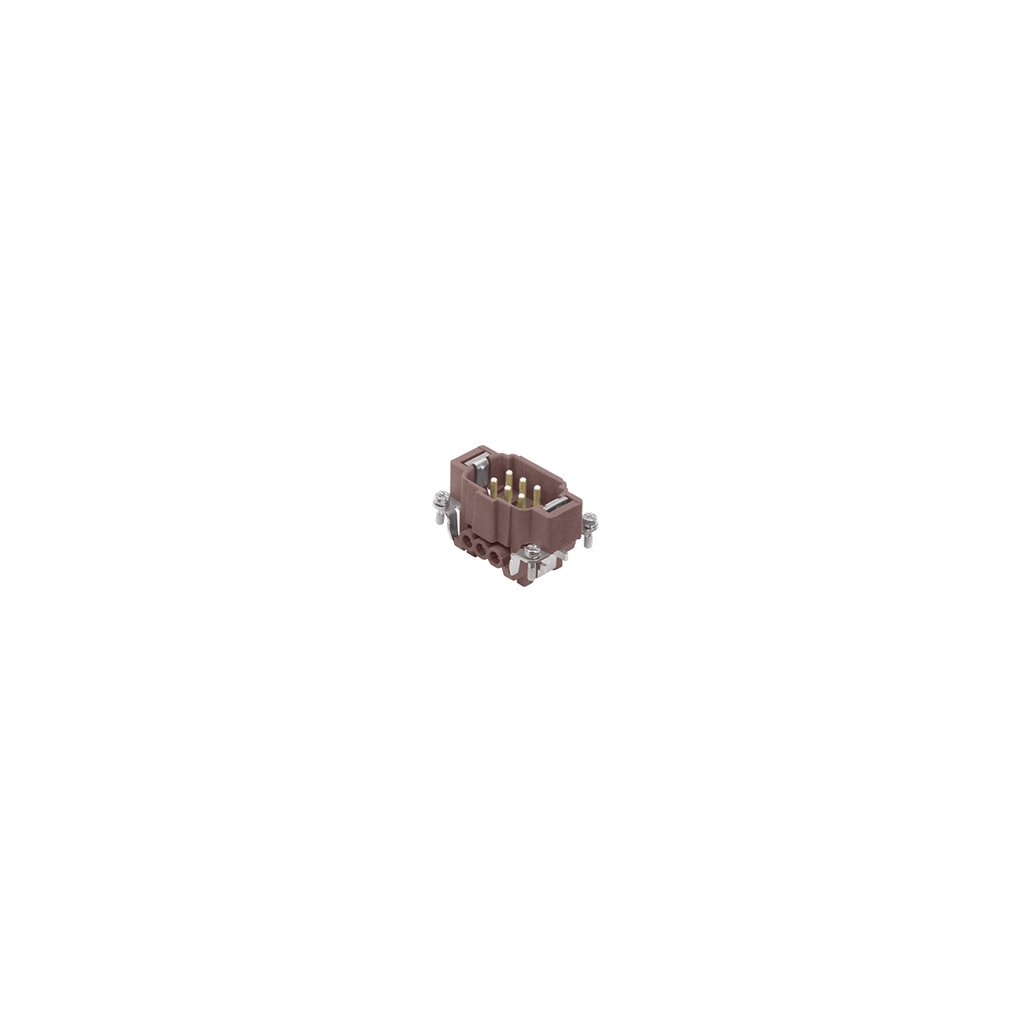

CNEMD 06 RY
Kód: CNEMD 06 RY
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Vložky |
|---|---|
| Výrobce: | Ilme |
| Product type: | Insert |
| Series: | CNE RY |
| Size: | size / 44.27 / |
| Specification: | with plate / For applications up to 180°C / |
| IP degree of protection: | IP20 without enclosure, IP65 with enclosure |
| Weight: | 50,00 g |
| Operating temperature range (min, max): | '-40°C … +180°C |
| Main material: | Polyphenylene sulfide (PPS) |
| Other materials: | Contacts / copper alloy |
| SCIP number: | 1a9c93ff-0445-4a16-81e3-1609ac5274d6 |
| EAN13 code: | 8015747129510 |
| Packaging length: | 270,00 mm |
| Packaging height: | 75,00 mm |
| Packaging width: | 180,00 mm |
| Packaging weight: | 3,20 kg |
| Packaging volume: | 3,65 dm³ |
| Packaging description: | Carton box |
| Packaging quantity: | 60 Pcs |
| Packaging EAN code: | 8015747129565 |
| Sub-packaging description: | Carton tray |
| Sub-packaging EAN barcode: | 8015747129572 |
| Sub-packaging quantity: | 10 Pcs |
| Sub-packaging weight: | 0,53 kg |
| Sub-packaging height: | 36,00 mm |
| Sub-packaging length: | 104,00 mm |
| Sub-packaging volume: | 0,67 dm³ |
| Sub-packaging width: | 180,00 mm |
| China RoHs - EFUP: | 50 |
| Connection type: | screw terminal connection |
| Contact resistance: | ≤ 1 mΩ |
| ETIM 7.0: | EC000438 |
| Gender: | Male |
| Insulation resistance: | ≥ 10 GΩ |
| Mating cycles: | ≥ 500 |
| REACH SVHC substances: | YesLead |
| RoHs conformity: | Compliant with exemption6(c) / copper alloy containing up to 4% lead by weight |
| UL 94 flammability rating: | V-0 |
| Certifications: | CSA, CQC, DNV, BV, EAC |
| cUL: | ECBT8 |
| UL: | ECBT2 |
| AWG size: | / 20 / - / 12 / |
| Conductors stripping length: | 7 mm |
| Contact type: | turned gold plated |
| Current: | / 16 A / |
| Wire cross-section: | / 0,50 mm² / - / 4,00 mm² / |
| Characteristics according to EN 61984: | 16A 500V 6kV 3 |
| N. of poles: | 6 poles + |
| Pollution degree: | 3 |
| Rated impulse withstand voltage: | 6 kV |
| Rated voltage according to UL/CSA: | 600 V |
| Tightening torque for fixing screws: | M3 / 0.5 Nm |
| Tightening torque for PE connection: | M3 / 0,5 Nm |
| Torque for main contact: | M3 / 0.5 Nm |
| Voltage: | / 500 /   |
