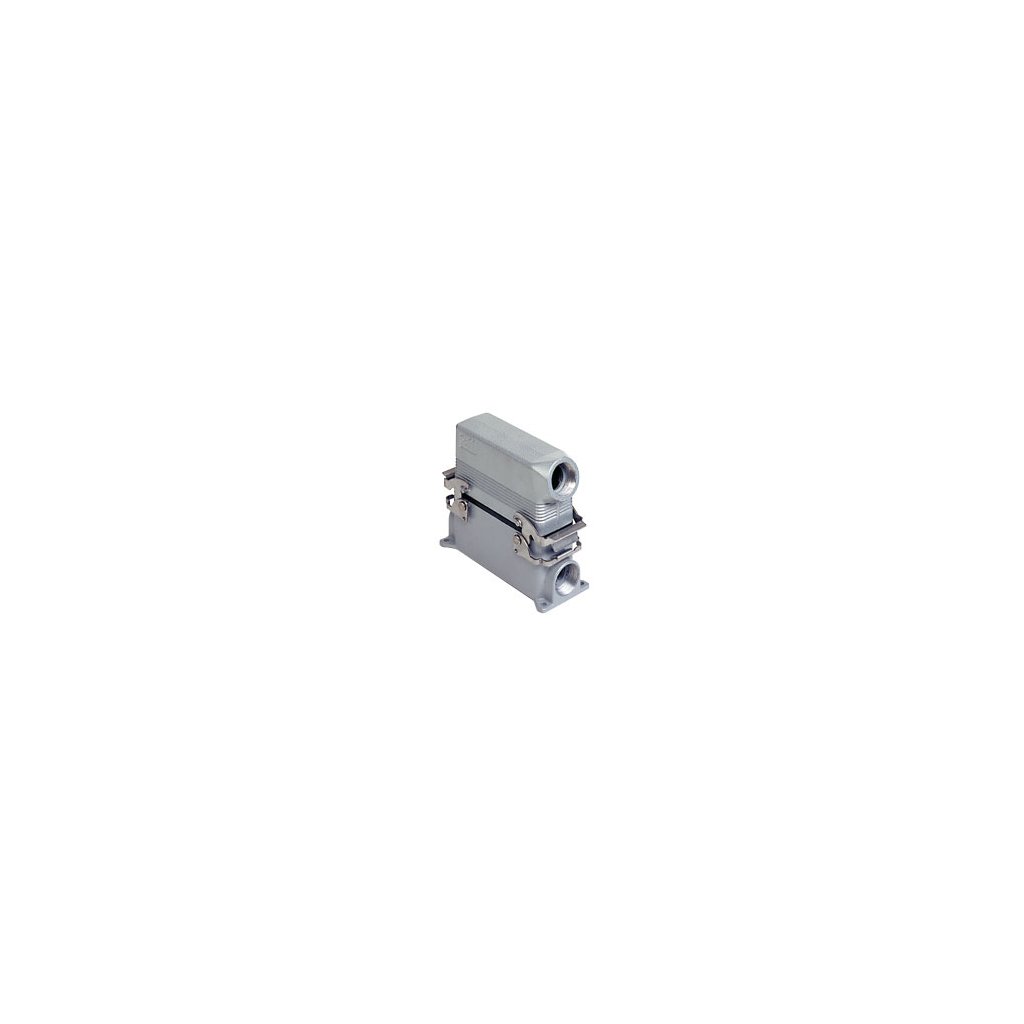

CNZ 10 PO
Kód: CNZ 10 PO
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Kryty |
|---|---|
| Výrobce: | Ilme |
| Product type: | complete connector |
| Series: | CNZ |
| Size: | size / 57.27 / |
| Specification: | surface mounting housing with 2 levers and hood with side cable entry |
| IP degree of protection: | IP65 / IP66 / IP69 |
| Weight: | 525,00 g |
| Colour: | RAL 7040 grey |
| SCIP number: | a54fce24-f9c5-479f-a7e4-adb75fec7abe |
| EAN13 code: | 8015747118620 |
| Packaging length: | 310,00 mm |
| Packaging height: | 260,00 mm |
| Packaging width: | 325,00 mm |
| Packaging weight: | 10,80 kg |
| Packaging volume: | 26,20 dm³ |
| Packaging description: | Carton box |
| Packaging quantity: | 20 Pcs |
| Packaging EAN code: | 8015747118668 |
| Sub-packaging description: | Plastic bag |
| Sub-packaging EAN barcode: | 8015747189545 |
| Sub-packaging quantity: | 1 Pcs |
| Sub-packaging weight: | 0,54 kg |
| Cable entry: | Pg16 |
| Connection type: | screw terminal connection |
| Certifications: | EAC |
| AWG size: | / 20 / - / 14 / |
| Contact type: | turned silver plated |
| Current: | / 16 A / |
| Wire cross-section: | / 0,50 mm² / - / 2,50 mm² / |
| N. of poles: | 10 poles + |
| Pollution degree: | 3 |
| Rated impulse withstand voltage: | 6 kV |
| Reference standard: | EN 61984 / 2009-06 |
| Voltage: | / 500 /   |
