COB 06 BC
Kód: COB 06 BC
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Průmyslové konektory |
|---|---|
| Výrobce: | Ilme |

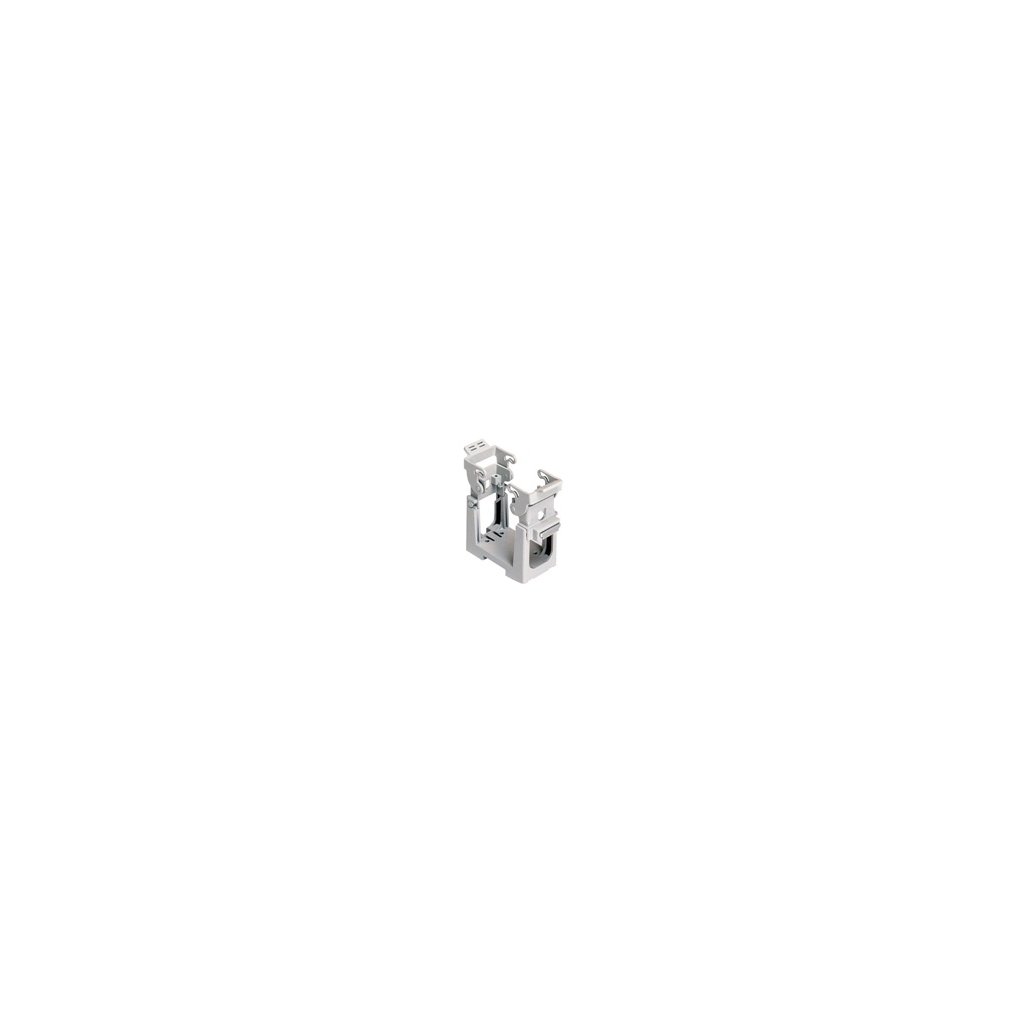

| Product type: | connector carrier baseplate for mounting on DIN EN60715 rail or with screws |
| Series: | COB panel supports |
| Specification: | for inserts with 44 x 27 mm screw fixing centre distance |
| IP degree of protection: | IP20 |
| Weight: | 85,00 g |
| Operating temperature range (min, max): | '-40°C...+125°C |
| Colour: | RAL 7032 grey |
| SCIP number: | b008b8e4-629e-4e70-ab7d-b3b67464925d |
| EAN13 code: | 8015747036467 |
| Packaging length: | 275,00 mm |
| Packaging height: | 110,00 mm |
| Packaging width: | 430,00 mm |
| Packaging weight: | 2,15 kg |
| Packaging volume: | 13,01 dm³ |
| Packaging description: | Carton box |
| Packaging quantity: | 20 Pcs |
| Packaging EAN code: | 8015747036474 |
| Sub-packaging description: | Carton tray |
| Sub-packaging EAN barcode: | 8015747036481 |
| Sub-packaging quantity: | 5 Pcs |
| Sub-packaging weight: | 0,54 kg |
| Sub-packaging height: | 40,00 mm |
| Sub-packaging length: | 95,00 mm |
| Sub-packaging volume: | 0,96 dm³ |
| Sub-packaging width: | 253,00 mm |
| China RoHs - EFUP: | e |
| eCl@ss 8.1: | 27440206 |
| ETIM 7.0: | EC002312 |
| REACH SVHC substances: | no |
| RoHs conformity: | compliant |
| Certifications: | DNV, BV |
| cUL: | ECBT8 |
| UL: | ECBT2 |
