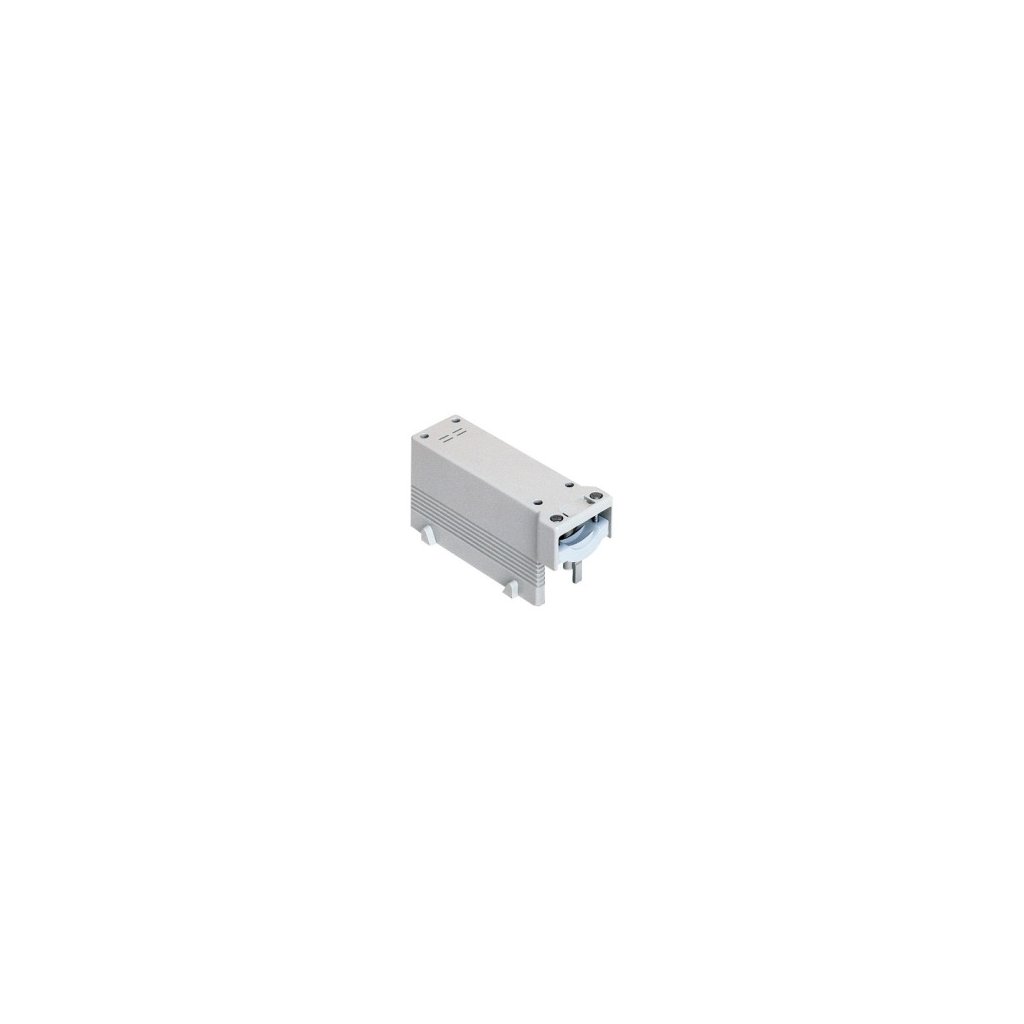

COB 16 CMS
Kód: COB 16 CMS
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Kryty |
|---|---|
| Výrobce: | Ilme |
| Product type: | insulating insert carrier enclosure for mobile mounting |
| Series: | COB panel supports |
| Specification: | for inserts with 77,5 x 27 mm screw fixing centre distance |
| IP degree of protection: | IP20 |
| Weight: | 85,00 g |
| Operating temperature range (min, max): | '-40°C...+125°C |
| Colour: | RAL 7032 grey |
| SCIP number: | b008b8e4-629e-4e70-ab7d-b3b67464925d |
| EAN13 code: | 8015747036610 |
| Packaging length: | 225,00 mm |
| Packaging height: | 130,00 mm |
| Packaging width: | 150,00 mm |
| Packaging weight: | 0,85 kg |
| Packaging volume: | 4,39 dm³ |
| Packaging description: | Carton box |
| Packaging quantity: | 10 Pcs |
| Packaging EAN code: | 8015747036627 |
| Sub-packaging description: | Plastic packaging |
| Sub-packaging EAN barcode: | 8015747036634 |
| Sub-packaging quantity: | 1 Pcs |
| Sub-packaging weight: | 0,09 kg |
| Cable entry: | side cable entry with cable clamp / |
| China RoHs - EFUP: | e |
| eCl@ss 8.1: | 27440202 |
| ETIM 7.0: | EC000437 |
| REACH SVHC substances: | no |
| RoHs conformity: | compliant |
| Certifications: | DNV, BV |
| cUL: | ECBT8 |
| UL: | ECBT2 |
