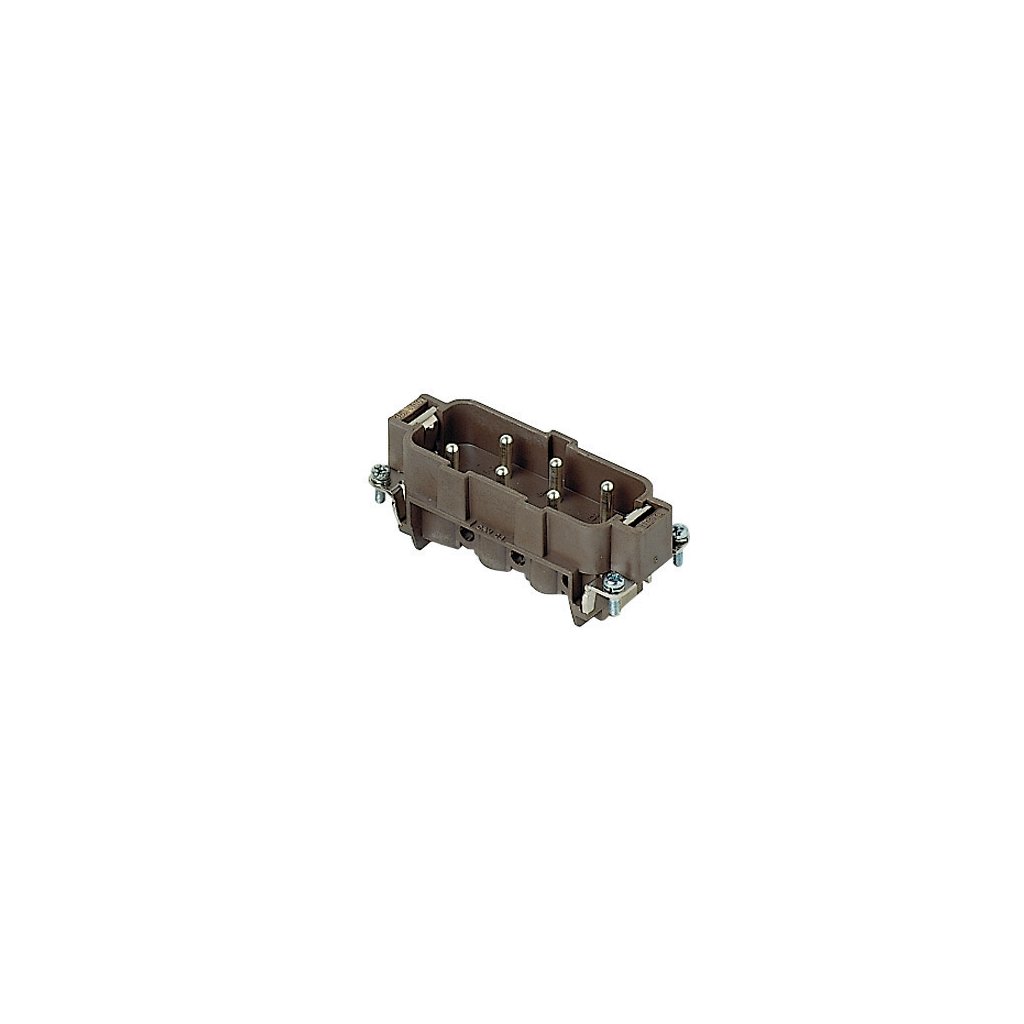

CPM 06 RY
Kód: CPM 06 RY
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Vložky |
|---|---|
| Výrobce: | Ilme |
| Product type: | Insert |
| Series: | CP RY |
| Size: | size / 77.27 / |
| Specification: | with plate / For applications up to 180°C / |
| IP degree of protection: | IP20 without enclosure, IP65 with enclosure |
| Weight: | 83,70 g |
| Operating temperature range (min, max): | '-40°C … +180°C |
| Main material: | Polyphenylene sulfide (PPS) |
| Other materials: | Contacts / copper alloy |
| SCIP number: | 1a9c93ff-0445-4a16-81e3-1609ac5274d6 |
| EAN13 code: | 8015747036955 |
| Sub-packaging description: | Carton tray |
| Sub-packaging EAN barcode: | 8015747036962 |
| Sub-packaging quantity: | 5 Pcs |
| Sub-packaging weight: | 0,42 kg |
| Sub-packaging height: | 36,00 mm |
| Sub-packaging length: | 87,00 mm |
| Sub-packaging volume: | 0,56 dm³ |
| Sub-packaging width: | 180,00 mm |
| China RoHs - EFUP: | 50 |
| Connection type: | screw terminal connection |
| eCl@ss 8.1: | 27440205 |
| ETIM 7.0: | EC000438 |
| Gender: | Male |
| Insulation resistance: | ≥ 10 GΩ |
| Mating cycles: | ≥ 500 |
| REACH SVHC substances: | YesLead |
| RoHs conformity: | Compliant with exemption6(c) / copper alloy containing up to 4% lead by weight |
| UL 94 flammability rating: | V-0 |
| Certifications: | CSA, CQC, DNV, BV, EAC |
| cUL: | ECBT8 |
| UL: | ECBT2 |
| AWG size: | / 18 / - / 10 / |
| Contact type: | turned silver plated |
| Current: | / 35 A / |
| Wire cross-section: | / 0,75 mm² / - / 6,00 mm² / |
| Characteristics according to EN 61984: | 35A 400 / 690V 6kV 3 |
| N. of poles: | 6 poles + |
| Pollution degree: | 3 |
| Rated impulse withstand voltage: | 6 kV |
| Rated voltage according to UL/CSA: | 600V |
| Reference standard: | EN 61984 / 2009-06 |
| Torque for main contact: | M4 / 1,2 Nm |
| Voltage: | / 400 / - / 690 /   |
