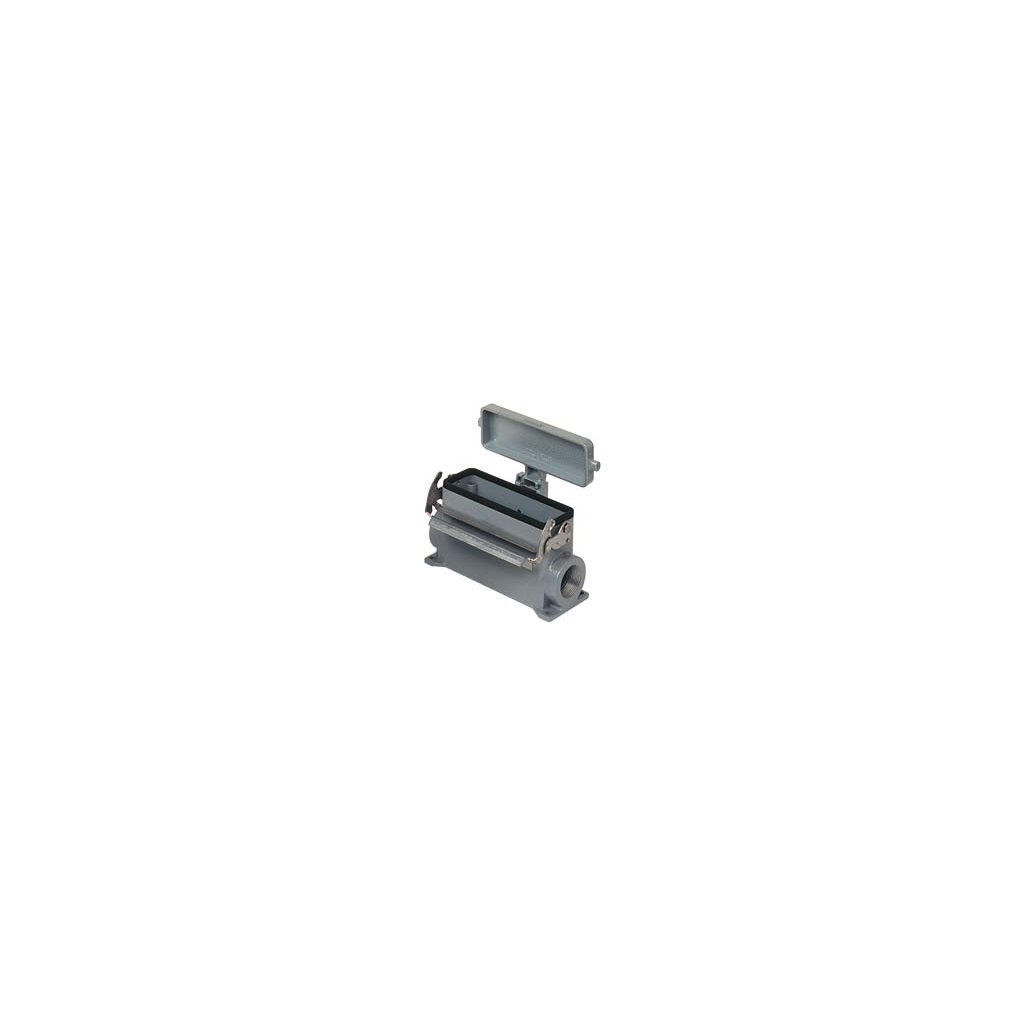

CVAP 16 LS
Kód: CVAP 16 LS
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Kryty |
|---|---|
| Výrobce: | Ilme |
| Product type: | surface mounting housing |
| Series: | V-TYPE |
| Size: | size / 77.27 / |
| Specification: | high construction, with metal cover |
| IP degree of protection: | IP65 / IP66 / IP69 |
| Weight: | 1,00 g |
| Operating temperature range (min, max): | '-40°C...+125°C |
| Colour: | RAL 7040 grey |
| EAN13 code: | 8015747149693 |
| Packaging description: | Carton box |
| Packaging quantity: | 10 Pcs |
| Packaging EAN code: | 8015747248235 |
| Sub-packaging description: | Plastic packaging |
| Sub-packaging EAN barcode: | 8015747248242 |
| Sub-packaging quantity: | 5 Pcs |
| Cable entry: | Pg21 |
| China RoHs - EFUP: | e |
| Contact resistance: | ≤ 3 mΩ |
| ETIM 7.0: | EC000438 |
| REACH SVHC substances: | no |
| RoHs conformity: | compliant |
| Certifications: | DNV, BV |
| Closing type: | with 1 lever |
| cUL: | ECBT8 |
| UL: | ECBT2 |
| Conductors stripping length: | 8 mm (6 mm for 2,5 mm²) |
| Tightening torque for fixing screws: | M3 / 0.5 Nm |
| Tightening torque for PE connection: | M4 / 1,2 Nm, 10,6 lb,in (Ph2 or 1,0x5,5mm ) |
| Torque for main contact: | M2,5 / 0.4 Nm |
