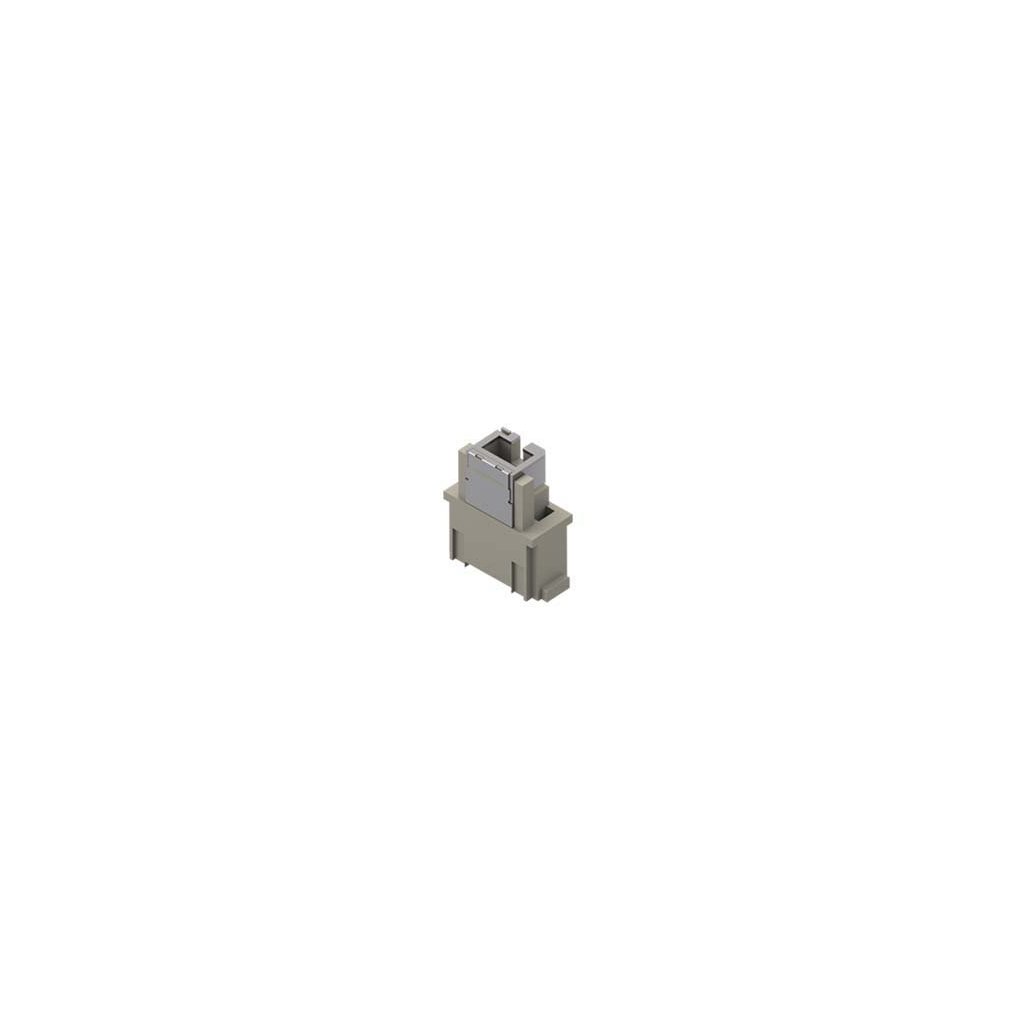

CX 01 J8F
Kód: CX 01 J8F
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Ilme |
| Product type: | modular insert |
| Series: | Mixo Data |
| Size: | 1 module |
| Specification: | RJ45, Cat. 6A female insert |
| IP degree of protection: | IP20 without enclosure, IP65 / IP66 / IP68 / IP69 with enclosure |
| Weight: | 22,00 g |
| Operating temperature range (min, max): | '-40°C...+70°C |
| Main material: | Polycarbonate (PC) |
| Colour: | RAL 7032 grey |
| EAN13 code: | 8015747079860 |
| Sub-packaging description: | Carton tray |
| Sub-packaging EAN barcode: | 8015747206334 |
| Sub-packaging quantity: | 10 Pcs |
| Sub-packaging weight: | 0,22 kg |
| Sub-packaging height: | 40,00 mm |
| Sub-packaging length: | 35,00 mm |
| Sub-packaging volume: | 0,22 dm³ |
| Sub-packaging width: | 155,00 mm |
| China RoHs - EFUP: | e |
| Connection type: | RJ45 |
| Contact resistance: | ≤ 3 mΩ |
| eCl@ss 8.1: | 27440205 |
| ETIM 7.0: | EC000438 |
| Gender: | Female |
| Insulation resistance: | ≥ 10 GΩ |
| REACH SVHC substances: | no |
| RoHs conformity: | compliant |
| UL 94 flammability rating: | V-0 |
| Certifications: | DNV, BV |
| cUL: | ECBT8 |
| UL: | ECBT2 |
| Current: | / 1 A / |
| Characteristics according to EN 61984: | 1A 50V 0,8kV 3 |
| N. of poles: | 1 seat for RJ45 connector |
| Rated voltage according to UL/CSA: | 50 V |
| Voltage: | / 50 /   |
