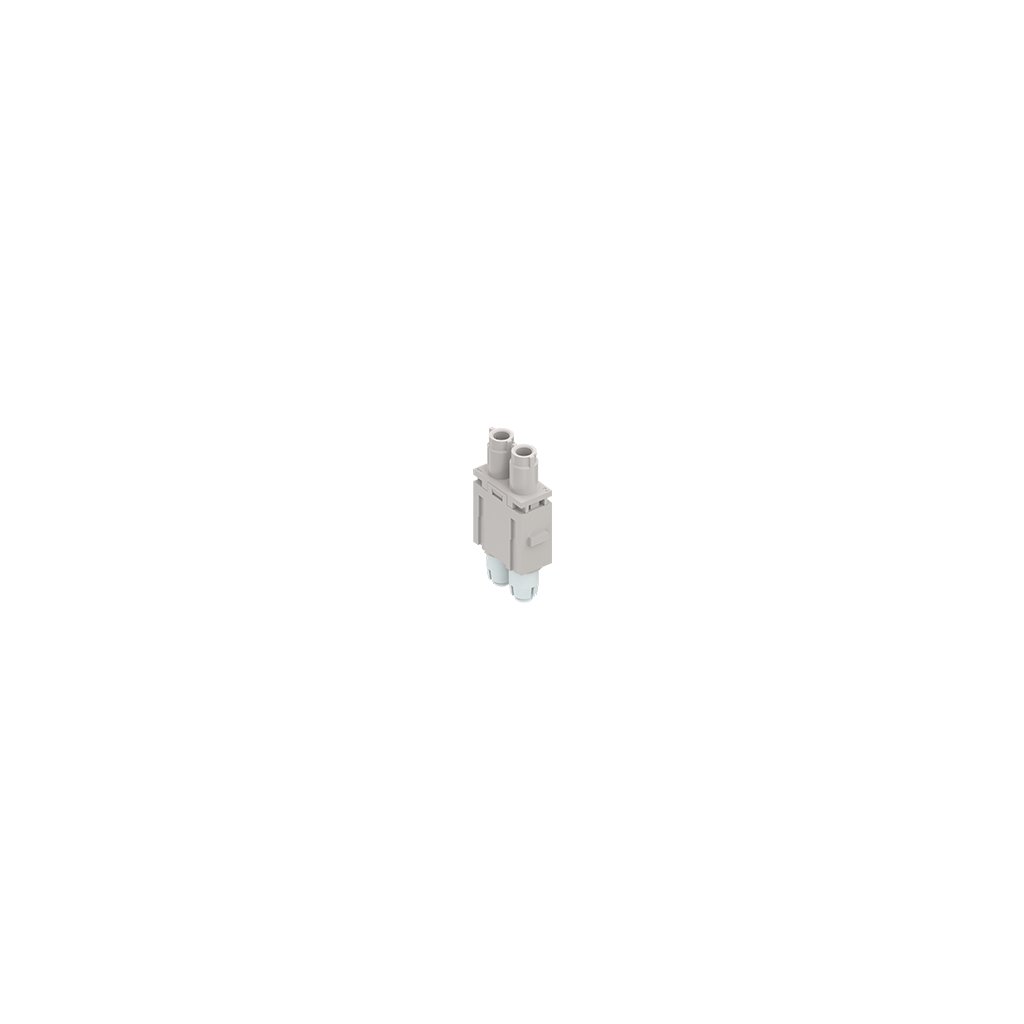

CX 02 CHM
Kód: CX 02 CHM
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Ilme |
| Product type: | modular insert |
| Series: | Mixo |
| Size: | 1 module |
| Specification: | with heat-shrinking tube / |
| IP degree of protection: | IP20 without enclosure, IP65 / IP66 / IP68 / IP69 with enclosure |
| Weight: | 28,00 g |
| Operating temperature range (min, max): | '-40 °C ... +125 °C |
| Main material: | polycarbonate |
| Colour: | RAL 7032 grey |
| EAN13 code: | 8015747203081 |
| Sub-packaging description: | Plastic bag |
| Sub-packaging EAN barcode: | 8015747203098 |
| Sub-packaging quantity: | 1 Pcs |
| Sub-packaging weight: | 0,03 kg |
| China RoHs - EFUP: | e |
| Connection type: | crimp connection |
| Contact resistance: | ≤ 1 mΩ |
| eCl@ss 8.1: | 27440205 |
| ETIM 7.0: | EC000438 |
| Gender: | Male |
| Insulation resistance: | ≥ 10 GΩ |
| Mating cycles: | ≥ 500 |
| REACH SVHC substances: | no |
| RoHs conformity: | compliant |
| UL 94 flammability rating: | V-0 |
| Certifications: | DNV |
| Current: | / 16 A / |
| Characteristics according to EN 61984: | 16A 2500V 15kV 3 |
| N. of poles: | 2 poles |
| Pollution degree: | 3 |
| Rated impulse withstand voltage: | 15 kV |
| Voltage: | / 2500 /   |
