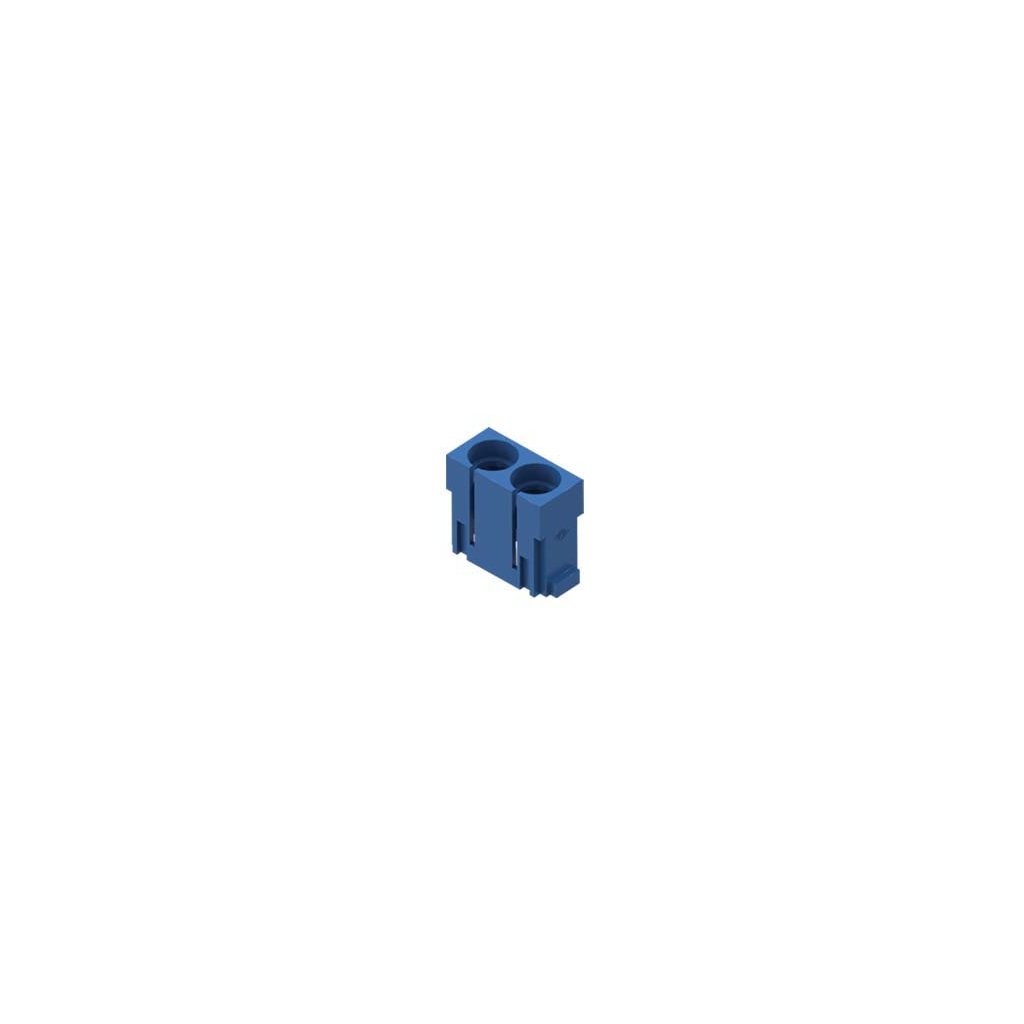

CX 02 P
Kód: CX 02 P
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Ilme |
| Product type: | modular insert |
| Series: | Mixo |
| Size: | 1 module |
| Specification: | with 2 seats for tube diameter 6,0 mm |
| Weight: | 5,60 g |
| Operating temperature range (min, max): | '-40°C ... +80°C |
| Main material: | Polycarbonate (PC) |
| Colour: | RAL 5015 blue |
| EAN13 code: | 8015747095952 |
| Packaging length: | 180,00 mm |
| Packaging height: | 120,00 mm |
| Packaging width: | 155,00 mm |
| Packaging weight: | 0,83 kg |
| Packaging volume: | 3,35 dm³ |
| Packaging description: | Carton box |
| Packaging quantity: | 60 Pcs |
| Packaging EAN code: | 8015747221160 |
| Sub-packaging description: | Carton tray |
| Sub-packaging EAN barcode: | 8015747102339 |
| Sub-packaging quantity: | 10 Pcs |
| Sub-packaging weight: | 0,14 kg |
| Sub-packaging height: | 40,00 mm |
| Sub-packaging length: | 35,00 mm |
| Sub-packaging volume: | 0,22 dm³ |
| Sub-packaging width: | 155,00 mm |
| China RoHs - EFUP: | e |
| Connection type: | pneumatic |
| eCl@ss 8.1: | 27440205 |
| ETIM 7.0: | EC000438 |
| Insulation resistance: | ≥ 10 GΩ |
| Mating cycles: | ≥ 500 |
| REACH SVHC substances: | no |
| RoHs conformity: | compliant |
| UL 94 flammability rating: | V-0 |
| Certifications: | CSA, DNV, BV |
| cUL: | ECBT8 |
| UL: | ECBT2 |
| N. of poles: | 2 poles |
