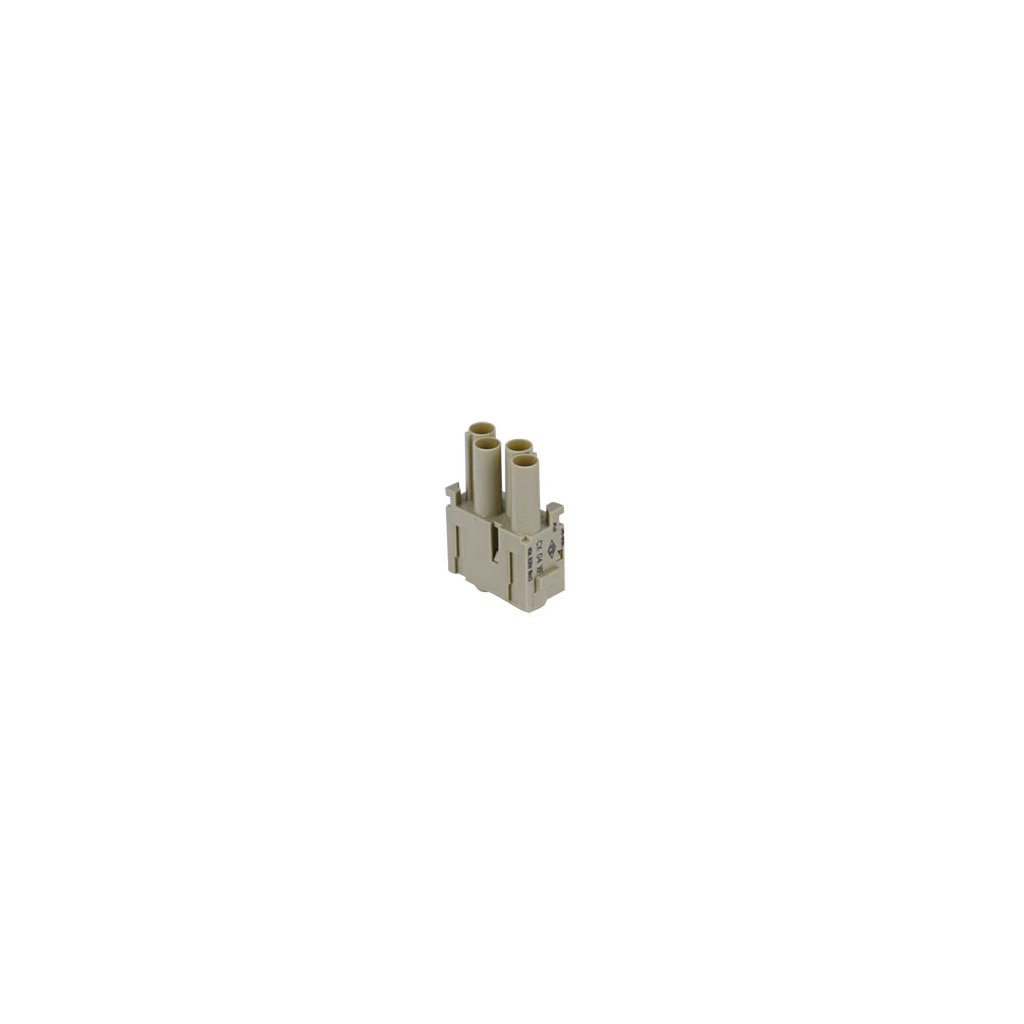

CX 04 XF
Kód: CX 04 XF
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Ilme |
| Product type: | modular insert |
| Series: | Mixo |
| Size: | 1 module |
| Specification: | Standard & |
| IP degree of protection: | IP20 without enclosure, IP65 / IP66 / IP68 / IP69 with enclosure |
| Weight: | 13,50 g |
| Operating temperature range (min, max): | '-40 °C ... +125 °C |
| Main material: | polycarbonate |
| Colour: | RAL 7032 grey |
| EAN13 code: | 8015747097291 |
| Packaging length: | 112,00 mm |
| Packaging height: | 95,00 mm |
| Packaging width: | 117,00 mm |
| Packaging weight: | 0,18 kg |
| Packaging volume: | 1,24 dm³ |
| Packaging description: | Carton box |
| Packaging quantity: | 10 Pcs |
| Packaging EAN code: | 8015747098373 |
| Sub-packaging description: | Plastic bag |
| Sub-packaging EAN barcode: | 8015747098595 |
| Sub-packaging quantity: | 1 Pcs |
| Sub-packaging weight: | 0,02 kg |
| China RoHs - EFUP: | e |
| Connection type: | crimp connection |
| Contact resistance: | ≤ 3 mΩ |
| eCl@ss 8.1: | 27440205 |
| ETIM 7.0: | EC000438 |
| Gender: | Female |
| Insulation resistance: | ≥ 10 GΩ |
| REACH SVHC substances: | no |
| RoHs conformity: | compliant |
| UL 94 flammability rating: | V-0 |
| Certifications: | CSA, CQC, DNV, BV, EAC |
| cUL: | ECBT8 |
| UL: | ECBT2 |
| Current: | / 40 A / |
| Characteristics according to EN 61984: | 40A 830V 8kV 3 |
| N. of poles: | 4 poles |
| Pollution degree: | 3 |
| Rated impulse withstand voltage: | 8 kV |
| Rated voltage according to UL/CSA: | 600 V |
| Reference standard: | EN 61984 / 2009-06 |
| Voltage: | / 830 /   |
