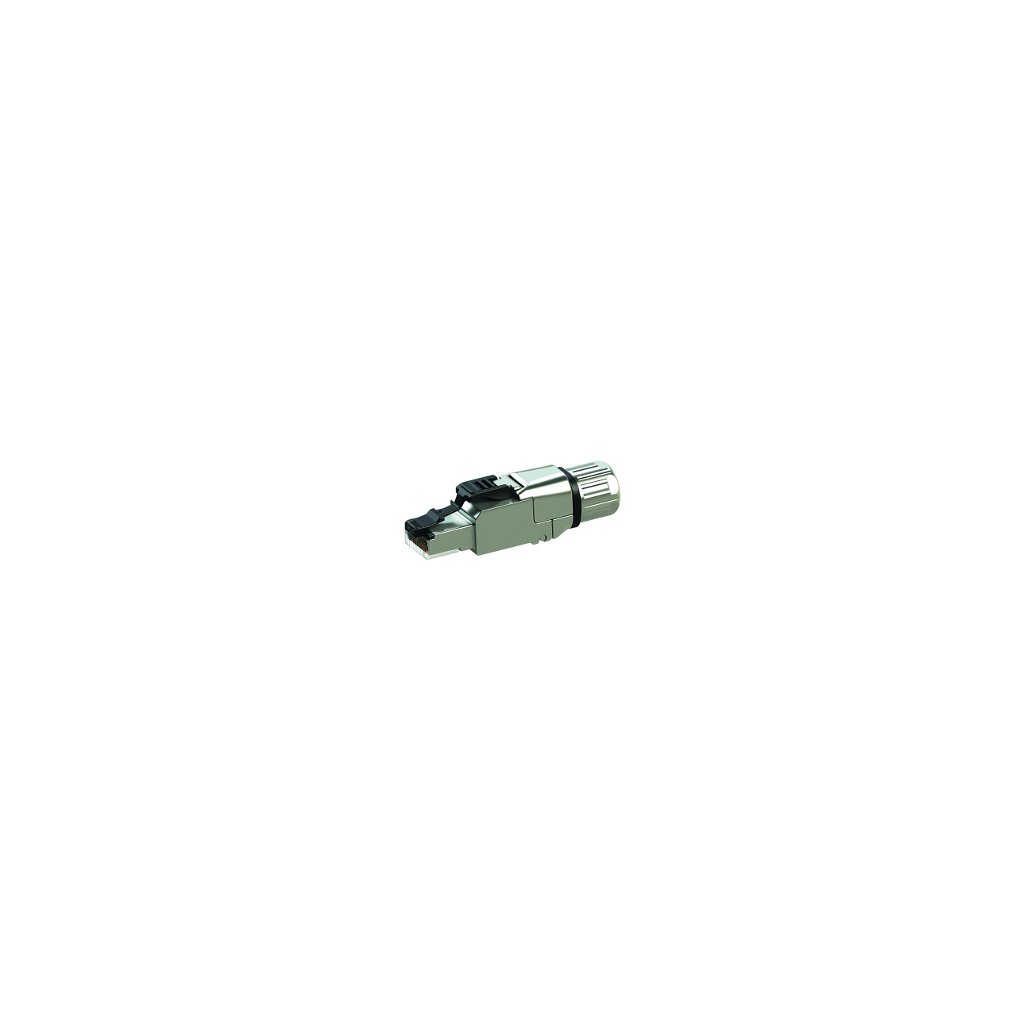

DTJ 8B IM1
Kód: DTJ 8B IM1
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Ilme |
| Product type: | data connector |
| Series: | DTJ connectors |
| Specification: | With metallic cable strain relief for outer diameter up to 10 mm / RJ45, Cat. 6A, female IDC insert according to T568B / |
| IP degree of protection: | IP20 without enclosure |
| Operating temperature range (min, max): | '-40°C...+85°C |
| Main material: | zinc diecast |
| Other materials: | Contacts / spring steel |
| SCIP number: | 8b60cf05-8f5f-42af-80f1-e79cea373159 |
| EAN13 code: | 8015747241274 |
| Sub-packaging description: | Plastic bag |
| Sub-packaging EAN barcode: | 8015747273350 |
| Sub-packaging quantity: | 1 Pcs |
| China RoHs - EFUP: | 50 |
| Connection type: | RJ45 |
| Contact resistance: | ≤ 20 mΩ |
| Gender: | Male |
| Insulation resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 |
| REACH SVHC substances: | YesLead |
| RoHs conformity: | Compliant with exemption6(c) / copper alloy containing up to 4% lead by weight |
| UL 94 flammability rating: | V-0 |
| AWG size: | / 27 / - / 22 / |
| Current: | / 1 A / |
