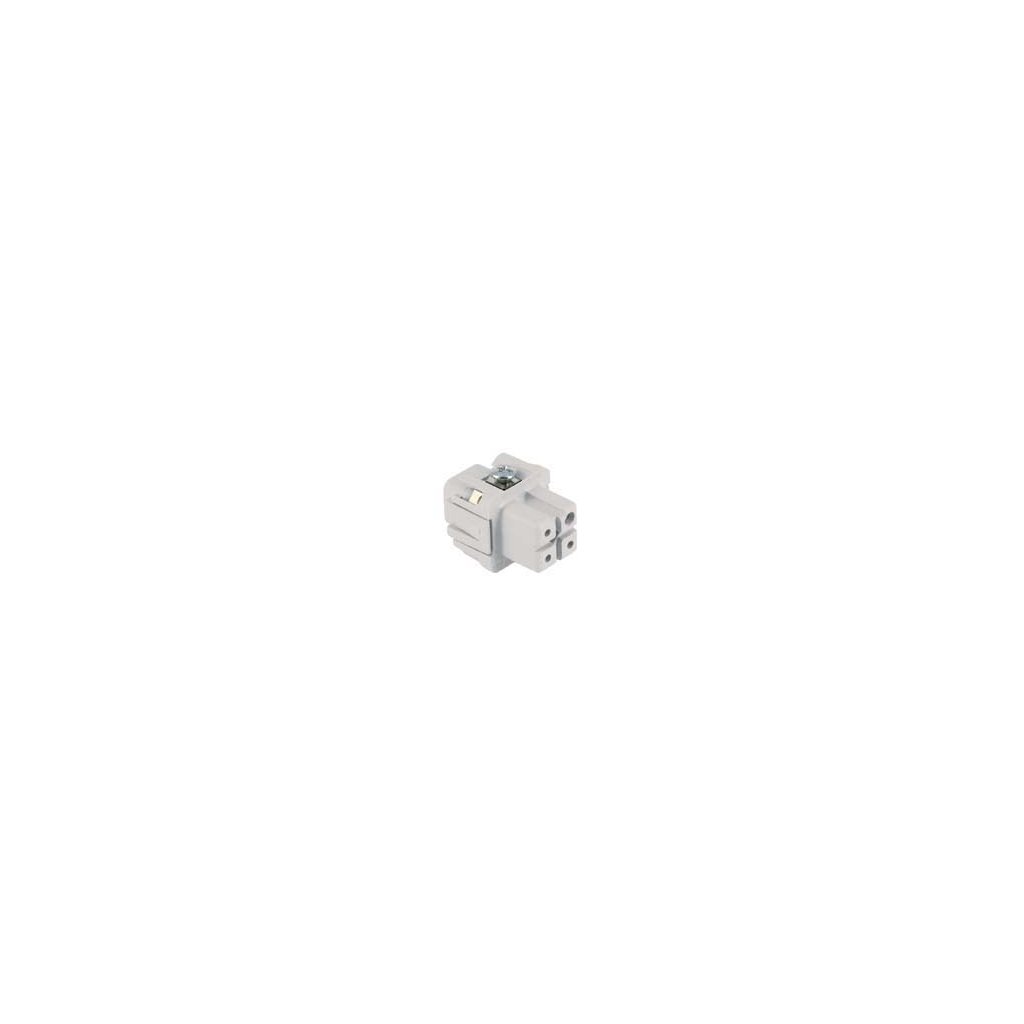

JKF 03
Kód: JKF 03
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za KS MOQ = 1 KSDoplňkové parametry
| Kategorie: | Vložky |
|---|---|
| Výrobce: | Ilme |
| Product type: | Insert |
| Series: | JK |
| Size: | size / 21.21 / |
| IP degree of protection: | IP20 without enclosure, IP44 / IP66 / IP67 / IP68 / IP69 with enclosure |
| Weight: | 15,75 g |
| Operating temperature range (min, max): | '-40°C … +100°C |
| Main material: | Polycarbonate (PC) |
| Other materials: | Contacts / copper alloy |
| Colour: | RAL 7035 grey |
| SCIP number: | 1a9c93ff-0445-4a16-81e3-1609ac5274d6 |
| EAN13 code: | 8015747209434 |
| Packaging length: | 210,00 mm |
| Packaging height: | 200,00 mm |
| Packaging width: | 130,00 mm |
| Packaging weight: | 2,95 kg |
| Packaging volume: | 5,46 dm³ |
| Packaging description: | Carton box |
| Packaging quantity: | 200 Pcs |
| Packaging EAN code: | 8015747209595 |
| Sub-packaging description: | Carton tray |
| Sub-packaging EAN barcode: | 8015747209601 |
| Sub-packaging quantity: | 40 Pcs |
| Sub-packaging weight: | 0,59 kg |
| China RoHs - EFUP: | 50 |
| Connection type: | screw terminal connection |
| Gender: | Female |
| Insulation resistance: | ≥ 10 GΩ |
| Mating cycles: | ≥ 200 |
| REACH SVHC substances: | YesLead |
| RoHs conformity: | Compliant with exemption6(c) / copper alloy containing up to 4% lead by weight |
| UL 94 flammability rating: | V-1 |
| Certifications: | CSA, CQC, DNV, BV, EAC |
| UL: | ECBT2 |
| AWG size: | / 18 / - / 14 / |
| Contact type: | turned tin plated |
| Current: | / 10 A / |
| Wire cross-section: | / 0,75 mm² / - / 2,50 mm² / |
| Characteristics according to EN 61984: | 10A 230 / 400V 4kV 3 |
| N. of poles: | 3 poles + |
| Pollution degree: | 3 |
| Rated impulse withstand voltage: | 4 kV |
| Rated voltage according to UL/CSA: | 600V |
| Reference standard: | EN 61984 / 2009-06 |
| Voltage: | / 230 / - / 400 /   |
