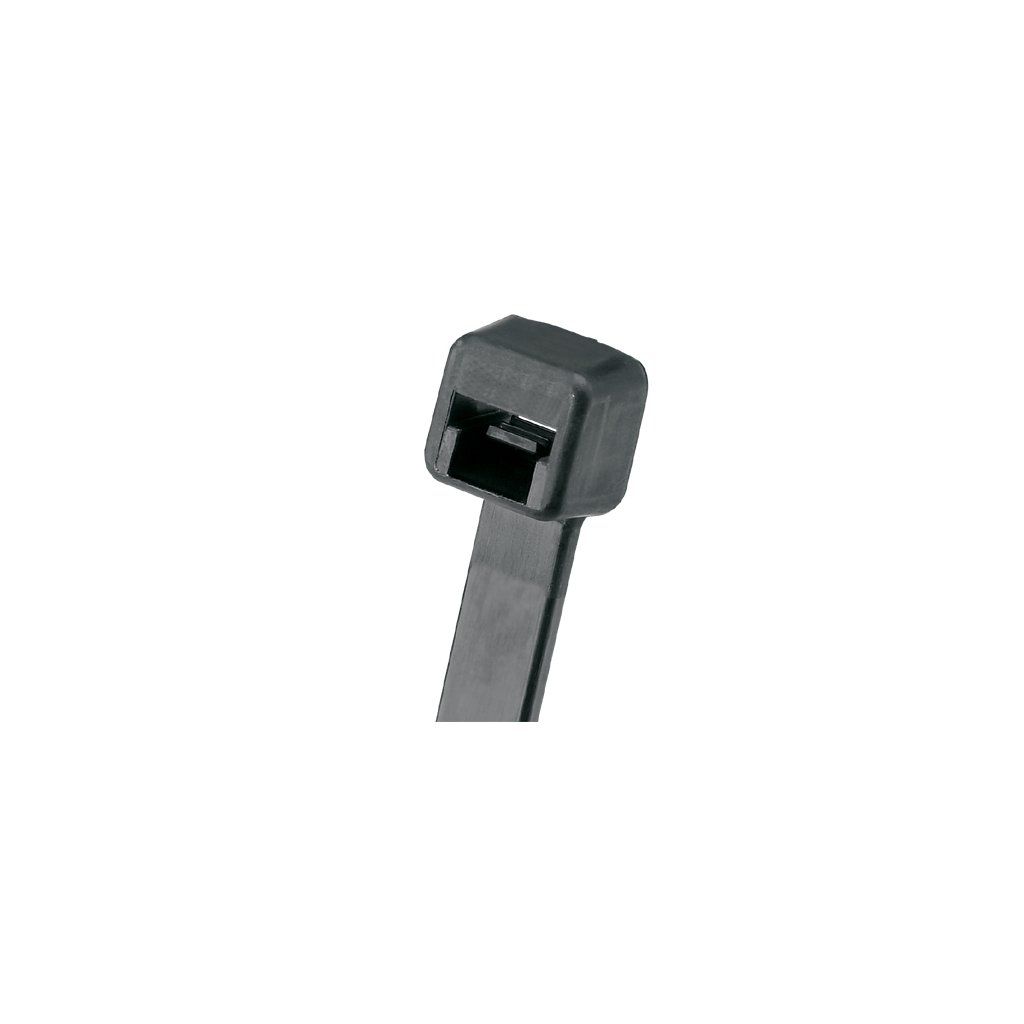

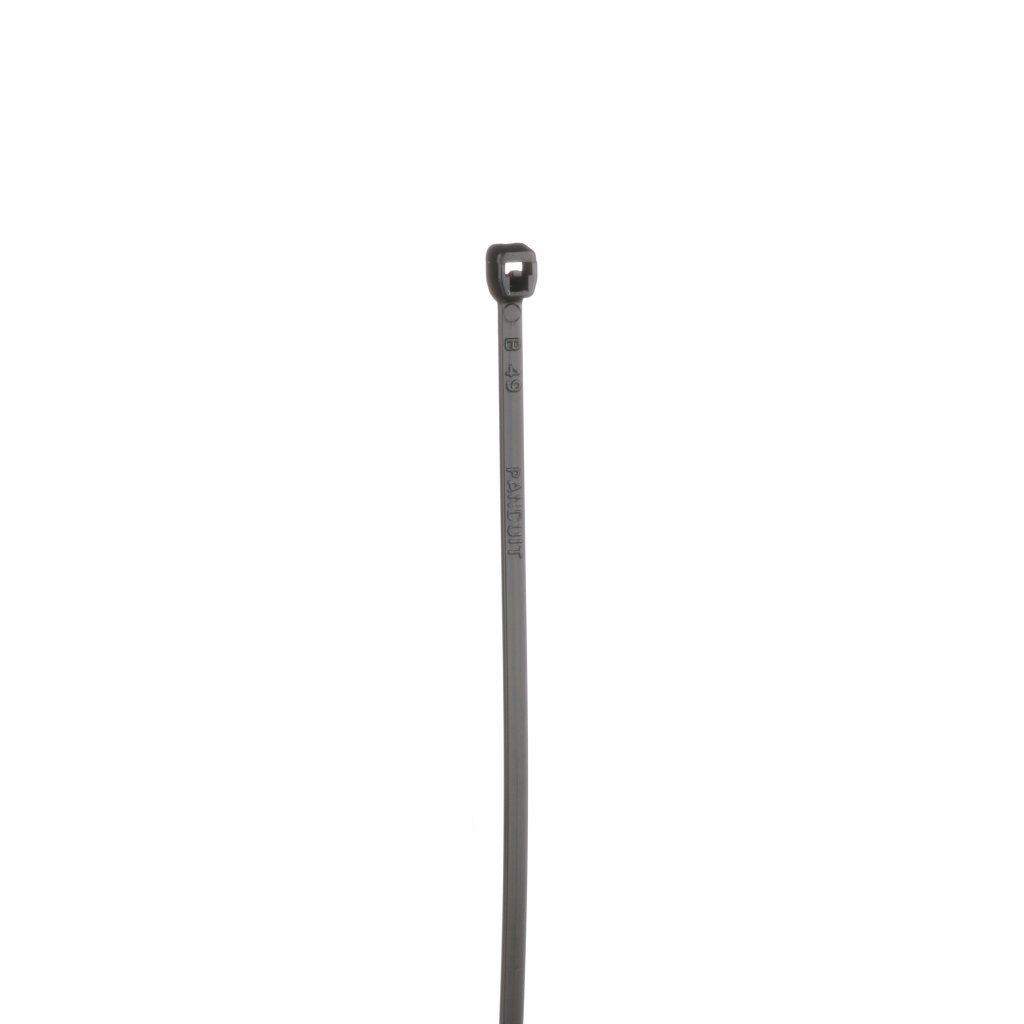

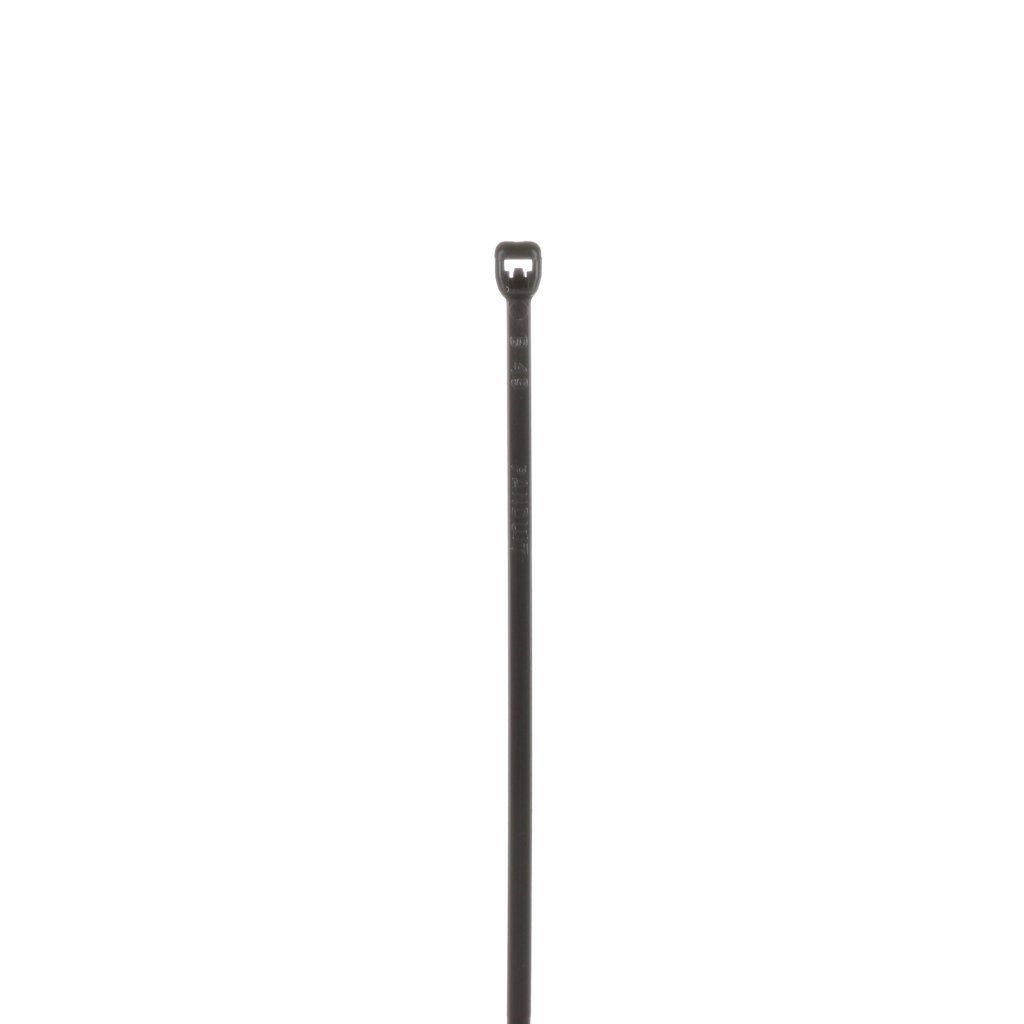

Panduit PLT.6SM-M30 Locking Cable Ties are designed to satisfy the needs of high temperature applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Subminiature cross section, 2.8" (71mm) length. Made of Heat Stabilized Nylon 6.6, are black in color and come in packages of 1000.Doplňkové parametry
| Kategorie: | Kabelové příslušenství |
|---|---|
| Colour: | Black |
| Model: | Internal toothing |
| Halogen free: | Yes |
| Length belt/tape/tie (mm): | 71 |
| Text strip: | None |
| Surface protection: | Untreated |
| Material quality: | Polyamide (PA) |
| Material_EF002169: | Plastic |
| MIN - Operating temperature (°C)_EF002393: | -60 |
| MAX - Operating temperature (°C)_EF002393: | 115 |
| Type of fastening: | None |
| Inflammability class of insulation material according to with UL94: | V2 |
| Tie thickness (mm): | 0.8 |
| Solvable fastener: | No |
| Transparent: | No |
| Band closure: | Plastic lip/-cam |
| Max. bundle diameter (mm): | 15 |
| MIL approval: | No |
| UL approval: | Yes |
| UV-stable according to ASTM D6779: | No |
| VG approval: | No |
| Band width (mm): | 1.8 |
| MIN - Mounting temperature (°C): | -20 |
| MAX - Mounting temperature (°C): | 115 |
| Fluorescent: | No |
| Min. tensile strength (N): | 36 |
| Min. bundle diameter (mm): | |
| Length belt/tape/tie (inch): | 2.8 |
| MIN - Operating temperature (°F)_EFI02393: | -76 |
| MAX - Operating temperature (°F)_EFI02393: | 239 |
| Tie thickness (inch): | 0.03 |
| Max. bundle diameter (inch): | 0.6 |
| Band width (inch): | 0.07 |
| MIN - Mounting temperature (°F): | -4 |
| MAX - Mounting temperature (°F): | 239 |
| Min. tensile strength (lb): | |
| Min. bundle diameter (inch): |
