PLT1.5I-M100
Kód: 74983549535
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu

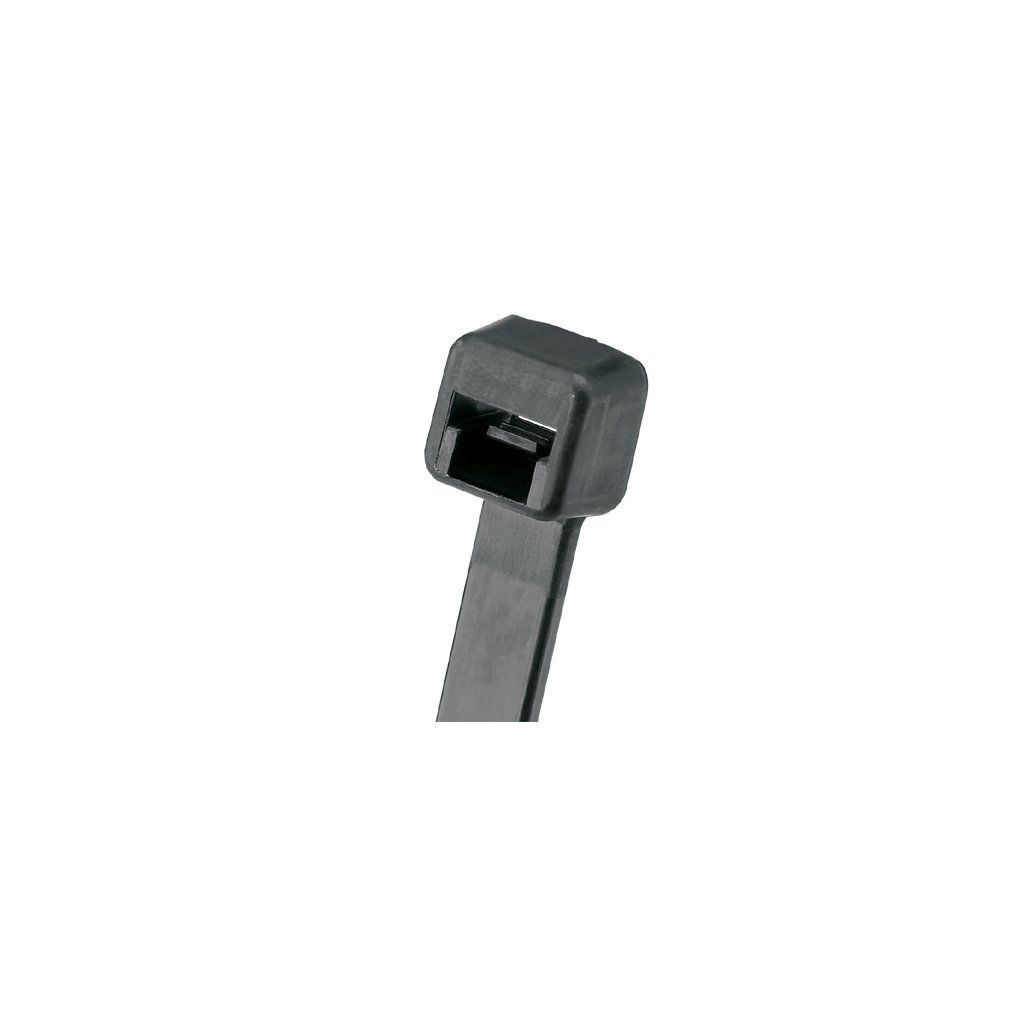

Panduit PLT1.5I-M100 Locking Cable Ties are designed to satisfy the needs of chemical resistance applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Intermediate cross section, 5.6" (142mm) length. Made of Weather Resistant Polypropylene with high resistance to ultraviolet light, are black in color and come in packages of 1000.Doplňkové parametry
| Kategorie: | Kabelové příslušenství |
|---|---|
| Colour: | Black |
| Model: | Internal toothing |
| Halogen free: | Yes |
| Length belt/tape/tie (mm): | 142 |
| Text strip: | None |
| Surface protection: | Untreated |
| Material quality: | Polypropylene (PP) |
| Material_EF002169: | Plastic |
| MIN - Operating temperature (°C)_EF002393: | -60 |
| MAX - Operating temperature (°C)_EF002393: | 115 |
| Type of fastening: | None |
| Inflammability class of insulation material according to with UL94: | Other |
| Tie thickness (mm): | 1.1 |
| Solvable fastener: | No |
| Transparent: | No |
| Band closure: | Plastic lip/-cam |
| Max. bundle diameter (mm): | 35 |
| MIL approval: | No |
| UL approval: | No |
| UV-stable according to ASTM D6779: | Yes |
| VG approval: | No |
| Band width (mm): | 3.6 |
| MIN - Mounting temperature (°C): | -20 |
| MAX - Mounting temperature (°C): | 115 |
| Fluorescent: | No |
| Min. tensile strength (N): | 80 |
| Min. bundle diameter (mm): | |
| Length belt/tape/tie (inch): | 5.6 |
| MIN - Operating temperature (°F)_EFI02393: | -76 |
| MAX - Operating temperature (°F)_EFI02393: | 239 |
| Tie thickness (inch): | 0.05 |
| Max. bundle diameter (inch): | 1.38 |
| Band width (inch): | 0.14 |
| MIN - Mounting temperature (°F): | -4 |
| MAX - Mounting temperature (°F): | 239 |
| Min. tensile strength (lb): | |
| Min. bundle diameter (inch): |
