Detailní popis produktu

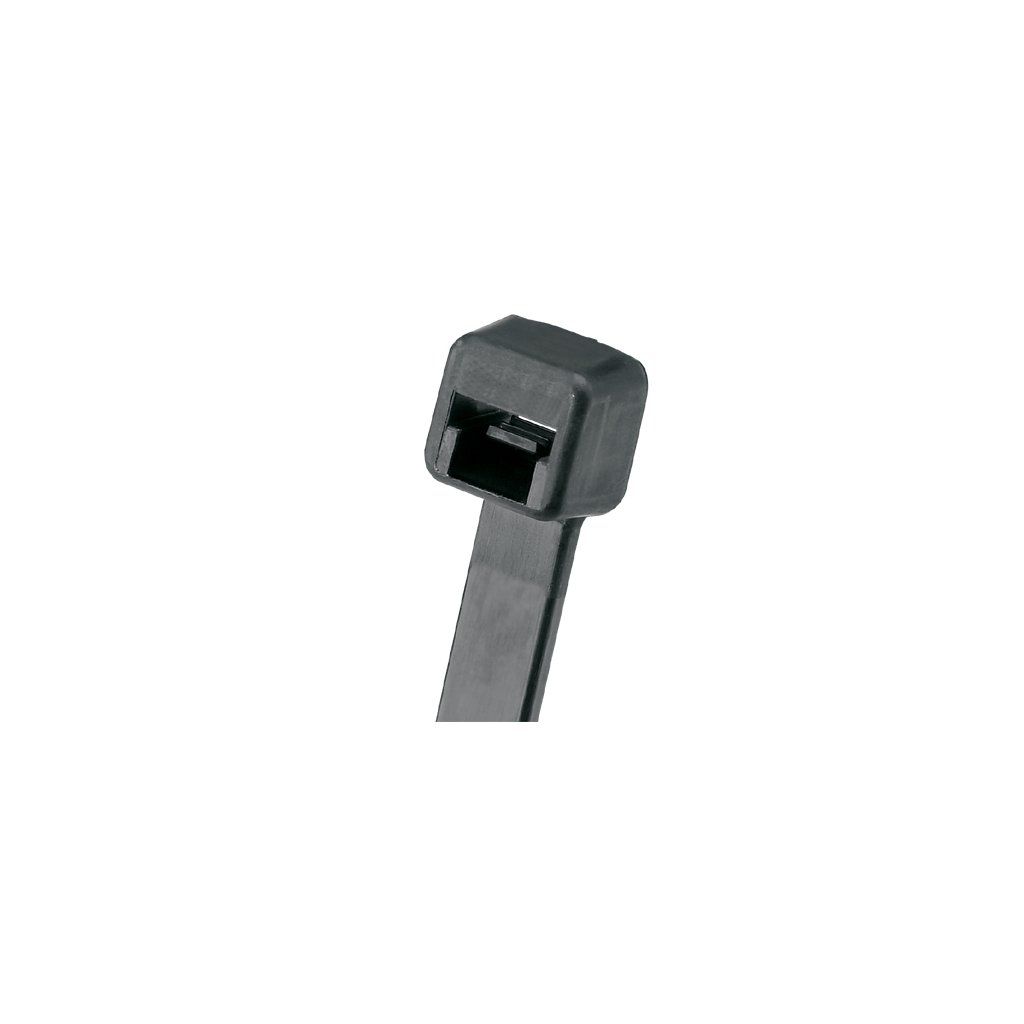

Panduit PLT1.5I-M120 Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Intermediate cross section, 5.6” (142mm) length. For Indoor/Outdoor use, made of Nylon 12, are black in color and come in packages of 1000.Doplňkové parametry
| Kategorie: | Kabelové příslušenství |
|---|---|
| Colour: | Black |
| Model: | Internal toothing |
| Halogen free: | Yes |
| Length belt/tape/tie (mm): | 142 |
| Text strip: | None |
| Surface protection: | Untreated |
| Material quality: | Polyamide (PA) |
| Material_EF002169: | Plastic |
| MIN - Operating temperature (°C)_EF002393: | -60 |
| MAX - Operating temperature (°C)_EF002393: | 90 |
| Type of fastening: | None |
| Inflammability class of insulation material according to with UL94: | Other |
| Tie thickness (mm): | 1.1 |
| Solvable fastener: | No |
| Transparent: | No |
| Band closure: | Plastic lip/-cam |
| Max. bundle diameter (mm): | 35 |
| MIL approval: | No |
| UL approval: | No |
| UV-stable according to ASTM D6779: | Yes |
| VG approval: | No |
| Band width (mm): | 3.6 |
| MIN - Mounting temperature (°C): | -20 |
| MAX - Mounting temperature (°C): | 90 |
| Fluorescent: | No |
| Min. tensile strength (N): | 111 |
| Min. bundle diameter (mm): | |
| Length belt/tape/tie (inch): | 5.6 |
| MIN - Operating temperature (°F)_EFI02393: | -76 |
| MAX - Operating temperature (°F)_EFI02393: | 194 |
| Tie thickness (inch): | 0.05 |
| Max. bundle diameter (inch): | 1.38 |
| Band width (inch): | 0.14 |
| MIN - Mounting temperature (°F): | -4 |
| MAX - Mounting temperature (°F): | 194 |
| Min. tensile strength (lb): | |
| Min. bundle diameter (inch): |
