PLT1M-C71
Kód: 74983313815
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu

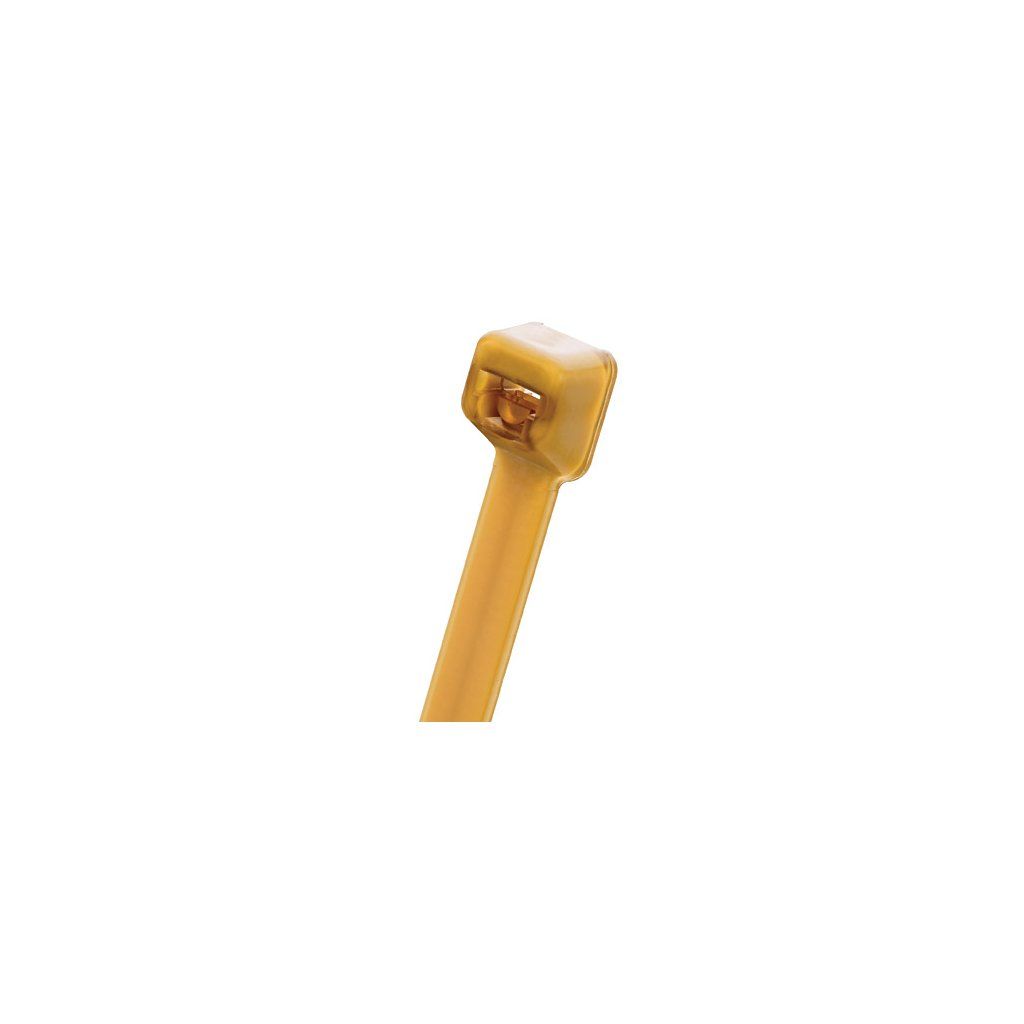

Panduit PLT1M-C71 Locking Cable Ties are designed for harsh environments where a cable tie material is required to hold up to chemical, high radiation, and/or high operating temperature environments. Non-conductive material that is excellent for high temperature applications up to 464 degrees F (240 degrees C). Flammability rating of V-0 with low smoke and toxicity. Miniature cross section, 4.0" (102mm) length. Made of PEEK, are translucent brown in color and come in packages of 100.Doplňkové parametry
| Kategorie: | Kabelové příslušenství |
|---|---|
| Colour: | Brown |
| Model: | Internal toothing |
| Halogen free: | Yes |
| Length belt/tape/tie (mm): | 102 |
| Text strip: | None |
| Surface protection: | Untreated |
| Material quality: | Other |
| Material_EF002169: | Plastic |
| MIN - Operating temperature (°C)_EF002393: | -60 |
| MAX - Operating temperature (°C)_EF002393: | 240 |
| Type of fastening: | None |
| Inflammability class of insulation material according to with UL94: | V0 |
| Tie thickness (mm): | 1.2 |
| Solvable fastener: | No |
| Transparent: | Yes |
| Band closure: | Plastic lip/-cam |
| Max. bundle diameter (mm): | 22 |
| MIL approval: | Yes |
| UL approval: | No |
| UV-stable according to ASTM D6779: | No |
| VG approval: | No |
| Band width (mm): | 2.6 |
| MIN - Mounting temperature (°C): | -20 |
| MAX - Mounting temperature (°C): | 240 |
| Fluorescent: | No |
| Min. tensile strength (N): | 156 |
| Min. bundle diameter (mm): | |
| Length belt/tape/tie (inch): | 4 |
| MIN - Operating temperature (°F)_EFI02393: | -76 |
| MAX - Operating temperature (°F)_EFI02393: | 464 |
| Tie thickness (inch): | 0.05 |
| Max. bundle diameter (inch): | 0.87 |
| Band width (inch): | 0.1 |
| MIN - Mounting temperature (°F): | -4 |
| MAX - Mounting temperature (°F): | 464 |
| Min. tensile strength (lb): | |
| Min. bundle diameter (inch): |
