PLT1M-C76
Kód: 74983541423
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu

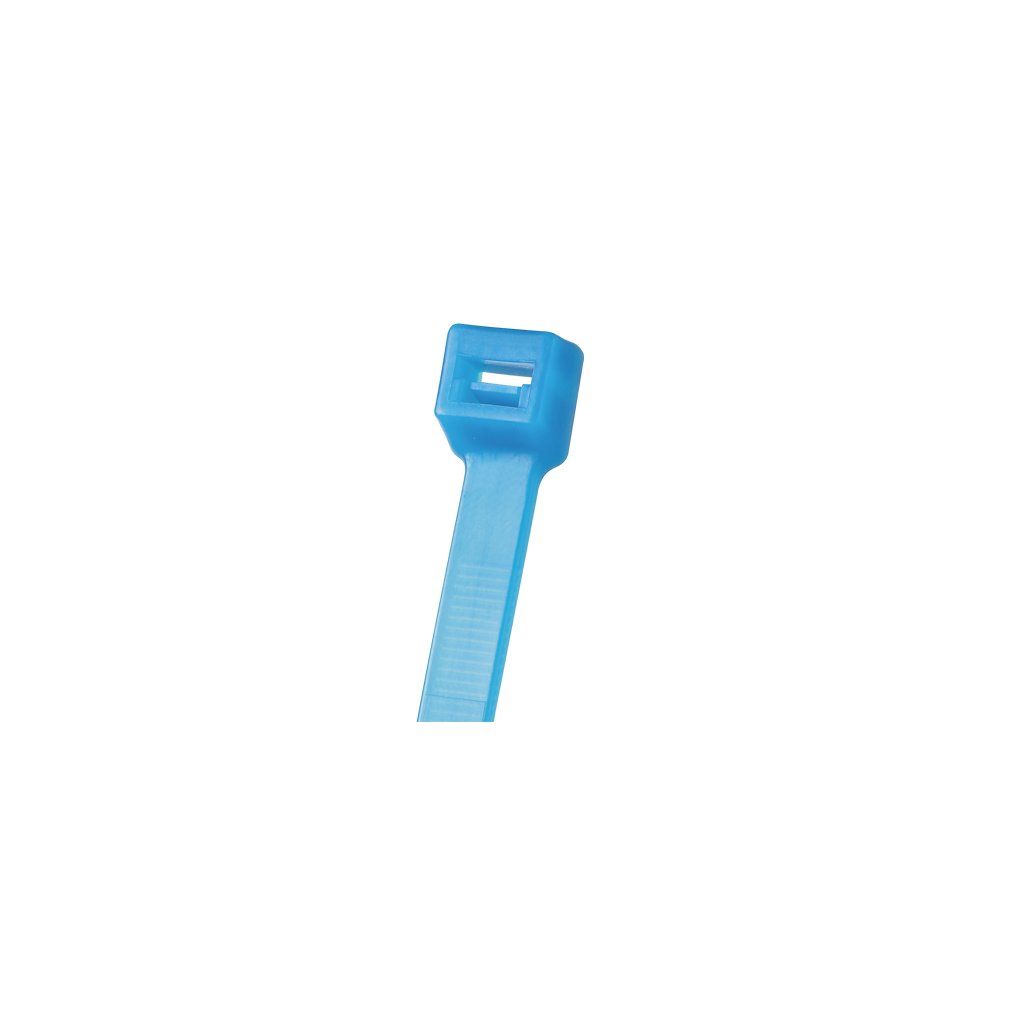

Panduit PLT1M-C76 Tefzel locking cable ties are designed for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures. Ideal for use in nuclear power facilities and chemical processing plants. Low smoke density and excellent flammability rating of UL 94V-0. Miniature cross section, 4.0” (102mm) length. For indoor or outdoor use, made of Tefzel, are a distinctive aqua blue in color and come in packages of 100.Doplňkové parametry
| Kategorie: | Kabelové příslušenství |
|---|---|
| Colour: | Blue |
| Model: | Internal toothing |
| Halogen free: | Yes |
| Length belt/tape/tie (mm): | 102 |
| Text strip: | None |
| Surface protection: | Untreated |
| Material quality: | Other |
| Material_EF002169: | Plastic |
| MIN - Operating temperature (°C)_EF002393: | -60 |
| MAX - Operating temperature (°C)_EF002393: | 170 |
| Type of fastening: | None |
| Inflammability class of insulation material according to with UL94: | V0 |
| Tie thickness (mm): | 1.1 |
| Solvable fastener: | No |
| Transparent: | No |
| Band closure: | Plastic lip/-cam |
| Max. bundle diameter (mm): | 22 |
| MIL approval: | Yes |
| UL approval: | Yes |
| UV-stable according to ASTM D6779: | Yes |
| VG approval: | No |
| Band width (mm): | 2.5 |
| MIN - Mounting temperature (°C): | -20 |
| MAX - Mounting temperature (°C): | 170 |
| Fluorescent: | No |
| Min. tensile strength (N): | 80 |
| Min. bundle diameter (mm): | |
| Length belt/tape/tie (inch): | 4 |
| MIN - Operating temperature (°F)_EFI02393: | -76 |
| MAX - Operating temperature (°F)_EFI02393: | 338 |
| Tie thickness (inch): | 0.04 |
| Max. bundle diameter (inch): | 0.87 |
| Band width (inch): | 0.1 |
| MIN - Mounting temperature (°F): | -4 |
| MAX - Mounting temperature (°F): | 338 |
| Min. tensile strength (lb): | |
| Min. bundle diameter (inch): |
