Detailní popis produktu

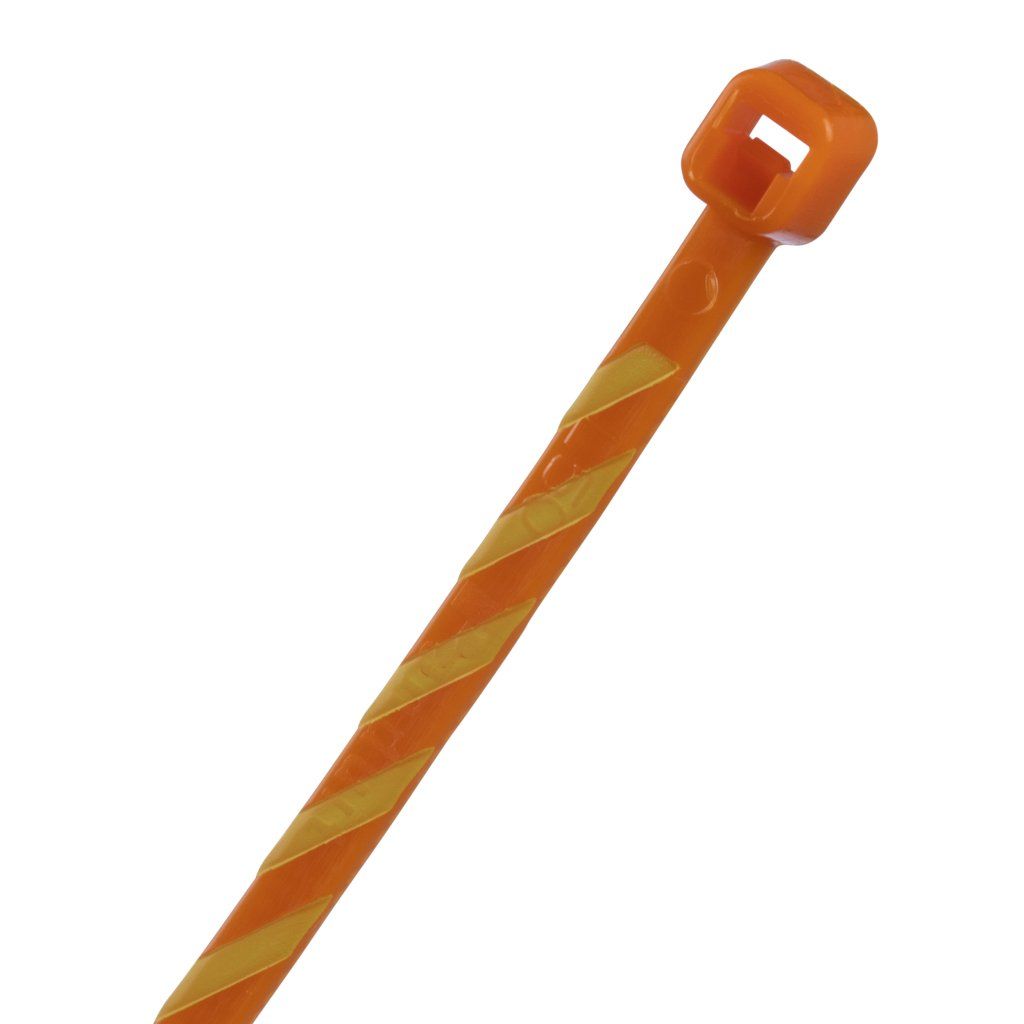

Pan-Ty® locking tie, miniature cross section, 4.0" (102mm) length, nylon 6.6, orange/yellow stripe.Doplňkové parametry
| Kategorie: | Kabelové příslušenství |
|---|---|
| Colour: | Multi-coloured |
| Model: | Internal toothing |
| Halogen free: | Yes |
| Length belt/tape/tie (mm): | 102 |
| Text strip: | None |
| Surface protection: | Untreated |
| Material quality: | Polyamide (PA) |
| Material_EF002169: | Plastic |
| MIN - Operating temperature (°C)_EF002393: | -60 |
| MAX - Operating temperature (°C)_EF002393: | 85 |
| Type of fastening: | None |
| Inflammability class of insulation material according to with UL94: | V2 |
| Tie thickness (mm): | 0.9 |
| Solvable fastener: | No |
| Transparent: | No |
| Band closure: | |
| Max. bundle diameter (mm): | 21 |
| MIL approval: | No |
| UL approval: | Yes |
| UV-stable according to ASTM D6779: | No |
| VG approval: | No |
| Band width (mm): | 2.5 |
| MIN - Mounting temperature (°C): | -20 |
| MAX - Mounting temperature (°C): | 85 |
| Fluorescent: | No |
| Min. tensile strength (N): | 80 |
| Min. bundle diameter (mm): | |
| Length belt/tape/tie (inch): | 3.9 |
| MIN - Operating temperature (°F)_EFI02393: | -76 |
| MAX - Operating temperature (°F)_EFI02393: | 185 |
| Tie thickness (inch): | 0.04 |
| Max. bundle diameter (inch): | 0.87 |
| Band width (inch): | 0.1 |
| MIN - Mounting temperature (°F): | -4 |
| MAX - Mounting temperature (°F): | 185 |
| Min. tensile strength (lb): | |
| Min. bundle diameter (inch): |
