PLT1M-L5-10
Kód: 74983539871Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu

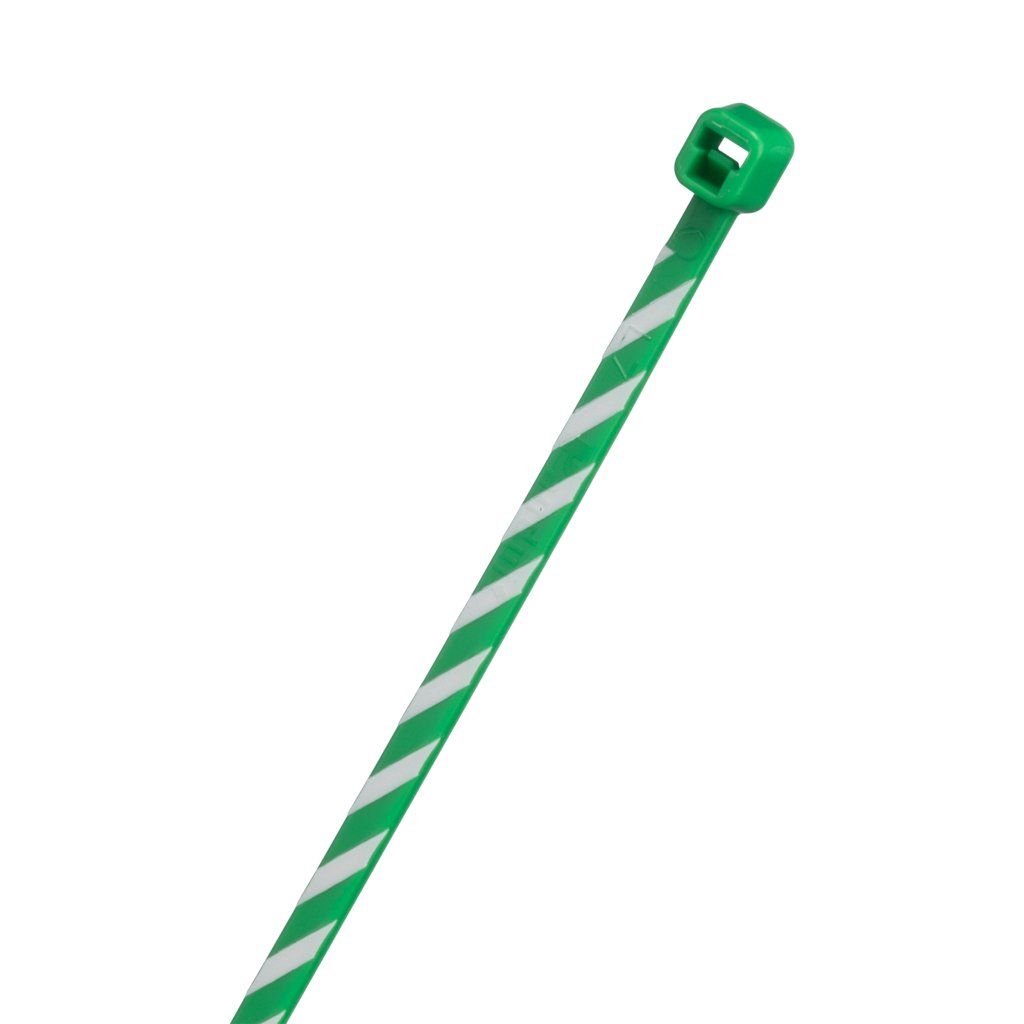

Pan-Ty® Striped Cable Ties – Nylon 6.6; Application: General; Color: Green/White Stripe; Cross Section: Miniature; Environment: Indoor; Head Height (In.): 0.154; Head Height (mm): 3.9; Head Width (In.): 0.185; Head Width (mm): 4.7; Locking Style: Locking; Marker/Flag Tie Labeling Area: None; Material: Nylon 6.6; Maximum Bundle Diameter (In.): 0.82; Maximum Bundle Diameter (mm): 21 Millimeters; Min. Loop Tensile Strength Lbs. (N): 18 (80); Minimum Bundle Diameter (In.): 0.06 Inch; Minimum Bundle Diameter (mm): 1.5 Millimeters; Minimum Loop Tensile Strength (lb): 18 Pound; Minimum Loop Tensile Strength (N): 80 Newton; Overall Length (In.): – Inch; Overall Length (mm): 102 Millimeters; Overall Width (In.): 0.1 Inch; Overall Width (mm): 2.5 Millimeters; Product Type: Cable Ties; Releasable: false; Stripe Color: White; Thickness In (mm): 0.036 (0.9); Package Quantity: 50Doplňkové parametry
| Kategorie: | Kabelové příslušenství |
|---|---|
| Colour: | Other |
| Model: | Internal toothing |
| Halogen free: | Yes |
| Length belt/tape/tie (mm): | 102 |
| Text strip: | None |
| Surface protection: | Untreated |
| Material quality: | Polyamide (PA) |
| Material_EF002169: | Plastic |
| MIN - Operating temperature (°C)_EF002393: | -60 |
| MAX - Operating temperature (°C)_EF002393: | 85 |
| Type of fastening: | None |
| Inflammability class of insulation material according to with UL94: | V2 |
| Tie thickness (mm): | 0.9 |
| Solvable fastener: | No |
| Transparent: | No |
| Band closure: | Plastic lip/-cam |
| Max. bundle diameter (mm): | 21 |
| MIL approval: | No |
| UL approval: | Yes |
| UV-stable according to ASTM D6779: | No |
| VG approval: | No |
| Band width (mm): | 2.5 |
| MIN - Mounting temperature (°C): | -20 |
| MAX - Mounting temperature (°C): | 85 |
| Fluorescent: | No |
| Min. tensile strength (N): | 80 |
| Min. bundle diameter (mm): | |
| Length belt/tape/tie (inch): | |
| MIN - Operating temperature (°F)_EFI02393: | -76 |
| MAX - Operating temperature (°F)_EFI02393: | 185 |
| Tie thickness (inch): | |
| Max. bundle diameter (inch): | |
| Band width (inch): | |
| MIN - Mounting temperature (°F): | -4 |
| MAX - Mounting temperature (°F): | 185 |
| Min. tensile strength (lb): | |
| Min. bundle diameter (inch): |
