PLT4H-TL30/147
Kód: 74983102129
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu

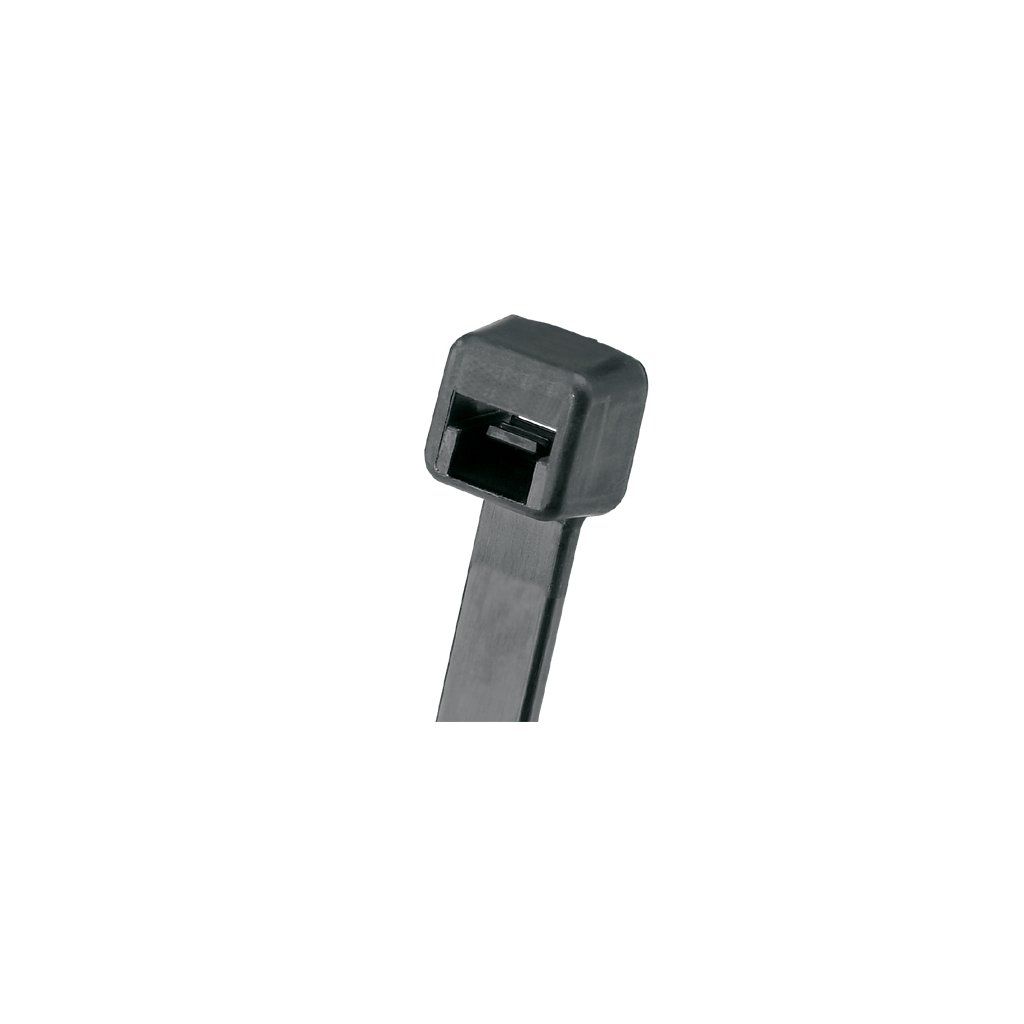

Panduit PLT4H-TL30/147 Flexible Cable Ties are designed for high temperature heavy duty applications such as truck, bus and heavy equipment. With their excellent tensile strength and flexible strap body, they deliver consistent performance and reliability while allowing faster installation with lower effort. Heavy cross section, 14.5” (368mm) length. Made of Heat Stabilized Nylon 6.6 for high temperature applications, are black in color and come in packages of 250.Doplňkové parametry
| Kategorie: | Kabelové příslušenství |
|---|---|
| Colour: | Black |
| Model: | Without toothing |
| Halogen free: | Yes |
| Length belt/tape/tie (mm): | 368 |
| Text strip: | None |
| Surface protection: | Untreated |
| Material quality: | Polyamide (PA) |
| Material_EF002169: | Plastic |
| MIN - Operating temperature (°C)_EF002393: | -60 |
| MAX - Operating temperature (°C)_EF002393: | 115 |
| Type of fastening: | None |
| Inflammability class of insulation material according to with UL94: | V2 |
| Tie thickness (mm): | 1.5 |
| Solvable fastener: | No |
| Transparent: | No |
| Band closure: | Plastic lip/-cam |
| Max. bundle diameter (mm): | 104.5 |
| MIL approval: | No |
| UL approval: | Yes |
| UV-stable according to ASTM D6779: | No |
| VG approval: | No |
| Band width (mm): | 7.6 |
| MIN - Mounting temperature (°C): | -20 |
| MAX - Mounting temperature (°C): | 115 |
| Fluorescent: | No |
| Min. tensile strength (N): | 534 |
| Min. bundle diameter (mm): | |
| Length belt/tape/tie (inch): | 14.5 |
| MIN - Operating temperature (°F)_EFI02393: | -76 |
| MAX - Operating temperature (°F)_EFI02393: | 239 |
| Tie thickness (inch): | 0.06 |
| Max. bundle diameter (inch): | 4.11 |
| Band width (inch): | 0.3 |
| MIN - Mounting temperature (°F): | -4 |
| MAX - Mounting temperature (°F): | 239 |
| Min. tensile strength (lb): | |
| Min. bundle diameter (inch): |
