PLT4S-M120
Kód: 74983548408
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu

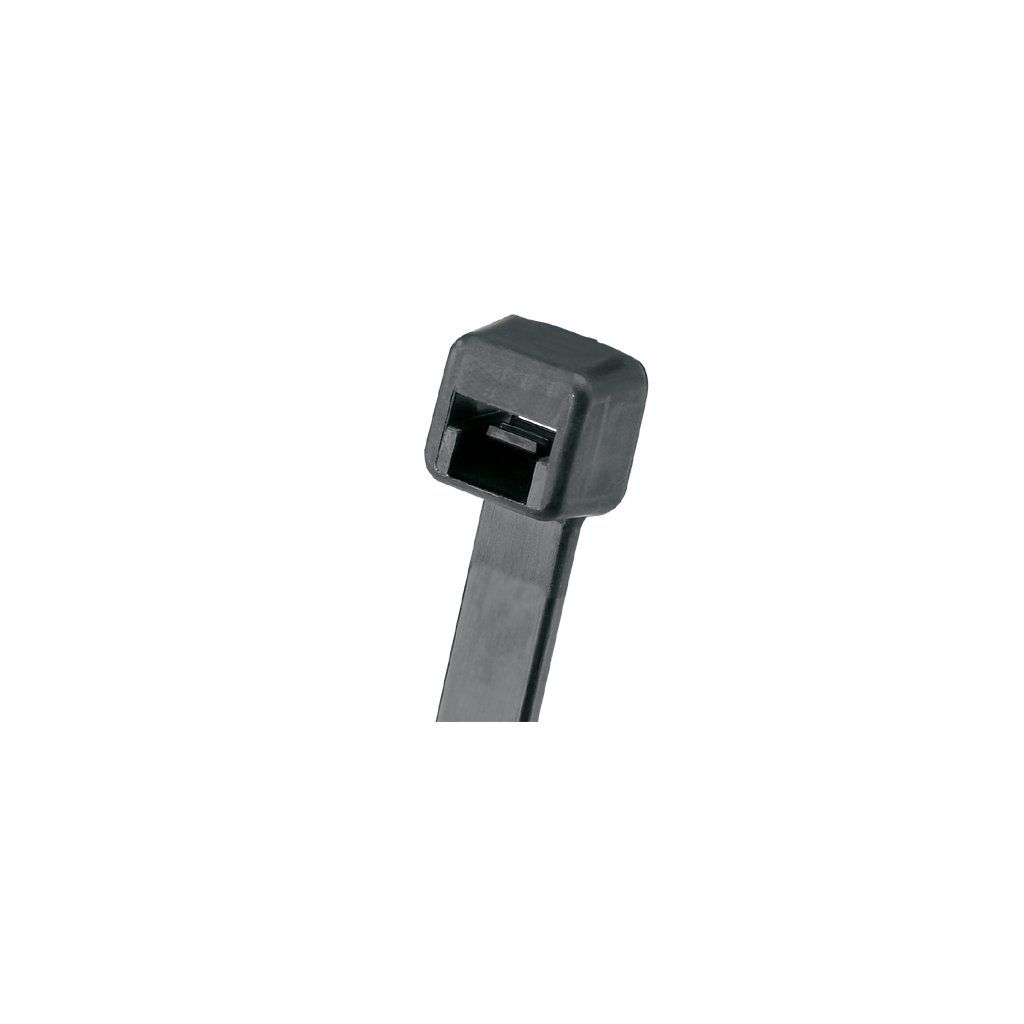

Panduit PLT4S-M120 Locking Cable Ties are designed to satisfy the needs of solar applications and resistance to corrosive elements such as zinc chloride applications, while delivering consistent performance and reliability. Cable tie of choice for making attachments to galvanized surfaces. Standard cross section, 14.5" (368mm) length. Made of Weather Resistant Nylon 12 with high resistance to ultraviolet light, are black in color and come in packages of 1000.Doplňkové parametry
| Kategorie: | Kabelové příslušenství |
|---|---|
| Colour: | Black |
| Model: | Internal toothing |
| Halogen free: | Yes |
| Length belt/tape/tie (mm): | 368 |
| Text strip: | None |
| Surface protection: | Untreated |
| Material quality: | Polyamide (PA) |
| Material_EF002169: | Plastic |
| MIN - Operating temperature (°C)_EF002393: | -60 |
| MAX - Operating temperature (°C)_EF002393: | 90 |
| Type of fastening: | None |
| Inflammability class of insulation material according to with UL94: | Other |
| Tie thickness (mm): | 1.3 |
| Solvable fastener: | No |
| Transparent: | No |
| Band closure: | Plastic lip/-cam |
| Max. bundle diameter (mm): | 102 |
| MIL approval: | No |
| UL approval: | No |
| UV-stable according to ASTM D6779: | Yes |
| VG approval: | No |
| Band width (mm): | 4.8 |
| MIN - Mounting temperature (°C): | -20 |
| MAX - Mounting temperature (°C): | 90 |
| Fluorescent: | No |
| Min. tensile strength (N): | 178 |
| Min. bundle diameter (mm): | |
| Length belt/tape/tie (inch): | 14.5 |
| MIN - Operating temperature (°F)_EFI02393: | -76 |
| MAX - Operating temperature (°F)_EFI02393: | 194 |
| Tie thickness (inch): | 0.05 |
| Max. bundle diameter (inch): | 4 |
| Band width (inch): | 0.19 |
| MIN - Mounting temperature (°F): | -4 |
| MAX - Mounting temperature (°F): | 194 |
| Min. tensile strength (lb): | |
| Min. bundle diameter (inch): |
