Katalogové číslo: 09032966823

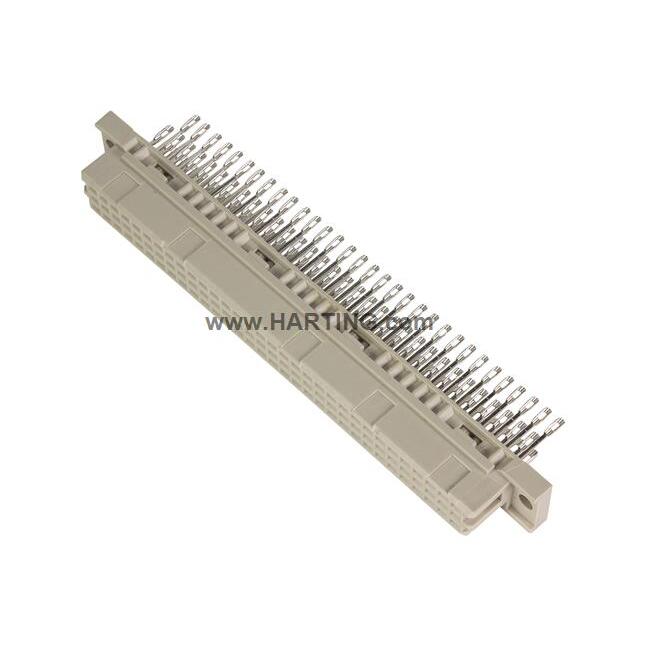

DIN-Signal C096FL-5,5/11C1-2

Cena za ks

  • Výrobce:
  • Harting

362,70 Kč bez DPH

PDF datasheet produktu

Parametry produktu 09032966823:

Series: DIN 41612
Element: Female connector
Description of the contact: Straight
Features: lead-free
Termination method: Solder lug termination
Connection type: PCB to cable
Number of contacts: 96
Contact configuration: Rows a, b and c, positions 1, 2, ... , 31, 32
PCB fixing: With fixing flange
Contact rows: 3
Contact spacing (termination side): 2.54 mm
Contact spacing (mating side): 2.54 mm
Rated current: ‌ 2 A
Rated current 2: Rated current measured at 20 °C, see derating curve for details
Clearance distance: ≥ 1.2 mm
Creepage distance: ≥ 1.2 mm
Insulation resistance: _1012 Ω
Contact resistance: ≤ 20 mΩ
Limiting temperature: '-55 ... +125 °C
Insertion and withdrawal force: ≤ 90 N
Performance level: 2 / acc. to IEC 60603-2
Mating cycles: ≥ 400
Test voltage Ur.m.s.: 1 kV (contact-contact) / 1.55 kV (contact-ground)
Isolation group: IIIa (175 ≤ CTI _ 400)
Hot plugging: No
Material (insert): Thermoplastic resin, glass-fibre filled
Colour (insert): RAL 7032 (pebble grey)
Material (contacts): Copper alloy
Surface (contacts): Noble metal over Ni Mating side / Sn over Ni Termination side
Material flammability class acc. to UL 94: V-0
RoHS: compliant
ELV status: compliant
China RoHS: e
REACH Annex XVII substances: Not contained
REACH Annex XIV substances: Not contained
REACH SVHC substances: Not contained
California Proposition 65 substances: Yes
California Proposition 65 substances 2: Antimony trioxide / Nickel
Specifications: IEC 60603-2
UL / CSA: UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079
Railway classification: F4_I3 acc. to NFF 16-101_102
Packaging size: 27
Net weight: 1 g
Country of origin: Czechia
European customs tariff number: 85366990
GTIN: 5713140007185
eCl@ss: 27460201 PCB connector (board connector)
