Katalogové číslo: 09061152911

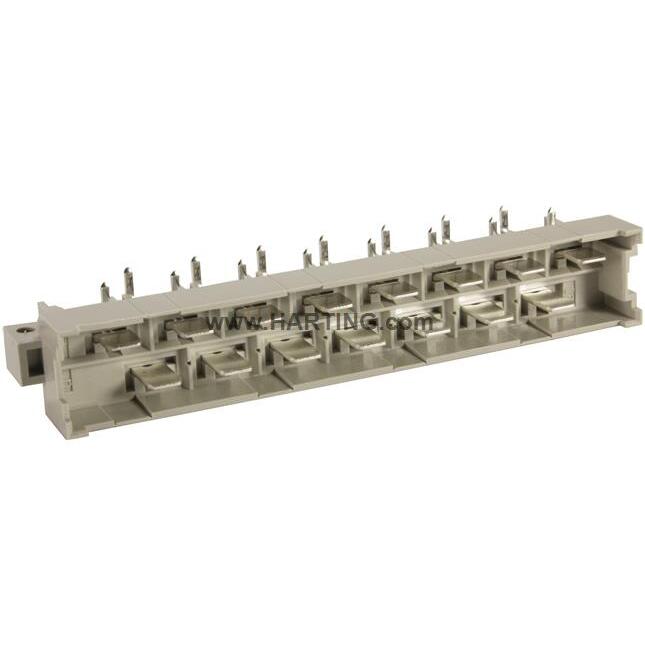

DIN-Power H015MS-3,2C1-1

Cena za ks

  • Výrobce:
  • Harting

145,20 Kč bez DPH

Parametry produktu 09061152911:

Series: DIN 41612
Element: Male connector
Description of the contact: Angled
Features: lead-free
Termination method: Wave soldering termination
Connection type: Motherboard to daughtercard / PCB to cable
Number of contacts: 15
Contact configuration: Row d, positions 6, 10, ... , 26, 30 and row z, positions 4, 8, ... , 28, 32
PCB fixing: With fixing flange
Contact spacing (termination side): 5.08 mm
Contact spacing (mating side): 6.5 mm / 10.16 mm
Rated current: ‌ 15 A
Rated current 2: Rated current measured at 20 °C, see derating curve for details
Clearance distance: ≥ 4.5 mm
Creepage distance: ≥ 8 mm
Insulation resistance: _1012 Ω
Contact resistance: ≤ 8 mΩ
Limiting temperature: '-55 ... +125 °C
Insertion and withdrawal force: ≤ 90 N
Performance level: 1 / acc. to IEC 60603-2
Mating cycles: ≥ 500
Test voltage Ur.m.s.: 3.1 kV
Isolation group: IIIa (175 ≤ CTI _ 400)
Hot plugging: No
Material (insert): Thermoplastic resin, glass-fibre filled
Colour (insert): RAL 7032 (pebble grey)
Material (contacts): Copper alloy
Surface (contacts): Ag over Ni Mating side / Sn over Ag over Ni Termination side
Material flammability class acc. to UL 94: V-0
RoHS: compliant
ELV status: compliant
China RoHS: e
REACH Annex XVII substances: Not contained
REACH Annex XIV substances: Not contained
REACH SVHC substances: Not contained
California Proposition 65 substances: Yes
California Proposition 65 substances 2: Antimony trioxide / Lead / Nickel
Specifications: IEC 60603-2
UL / CSA: UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079
Railway classification: F4_I3 acc. to NFF 16-101_102
Packaging size: 20
Net weight: 30.7 g
Country of origin: Romania
European customs tariff number: 85366990
GTIN: 5713140011441
eCl@ss: 27460201 PCB connector (board connector)
