Katalogové číslo: 09120012751

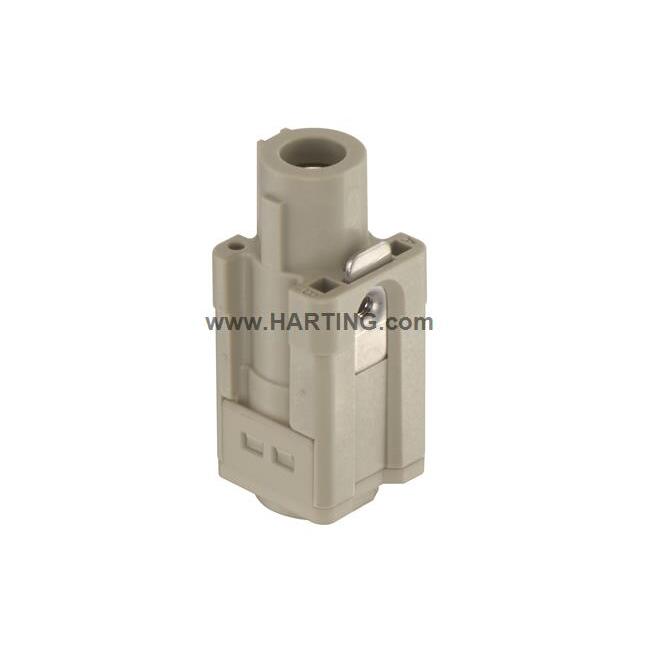

Han Q1/0-Bu-Axialschraub

Cena za ks

631,00  bez DPH

Parametry produktu 09120012751:

Series: Han® Q
Termination method: Axial screw termination
Number of contacts: 1
Rated current: ‌ 100 A
Insulation resistance: _1010 Ω
Contact resistance: ≤ 0.3 mΩ
Limiting temperature: '-40 ... +125 °C
Mating cycles: ≥ 500
Material (insert): Polycarbonate (PC) / Polyamide (PA)
Colour (insert): RAL 7032 (pebble grey)
Material (contacts): Copper alloy
Surface (contacts): Silver plated
Material flammability class acc. to UL 94: V-0
RoHS: compliant
ELV status: compliant
China RoHS: e
REACH Annex XVII substances: Not contained
REACH Annex XIV substances: Not contained
REACH SVHC substances: Not contained
California Proposition 65 substances: Yes
California Proposition 65 substances 2: Nickel
Specifications: IEC 60664-1 / IEC 61984
Packaging size: 1
Net weight: 36.9 g
Country of origin: Germany
European customs tariff number: 85366990
GTIN: 5713140186521
eCl@ss: 27440205 Contact insert for industrial connectors
