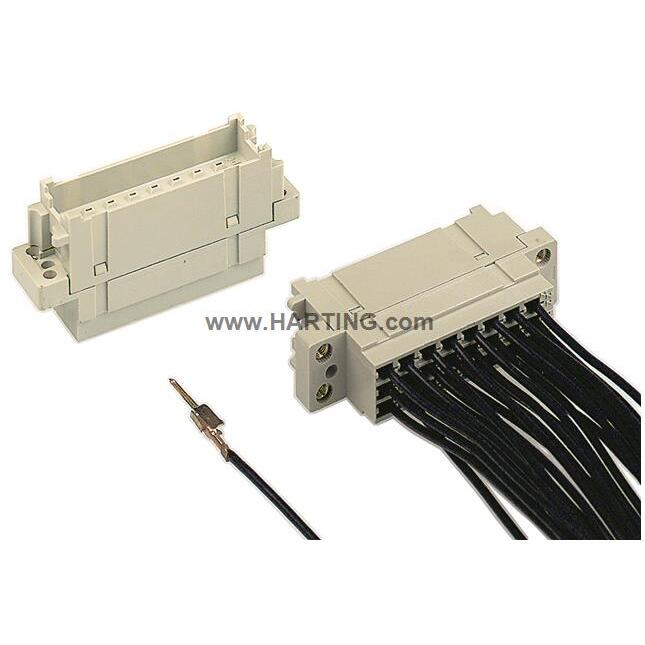

09260243411
Kód: 09260243411
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za ksDoplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Harting |
| Series: | DIN 41612 |
| Element: | Female connector |
| Features: | lead-free |
| Termination method: | Crimp termination |
| Connection type: | Cable to cable |
| Number of contacts: | 24 |
| PCB fixing: | With fixing flange |
| Contact rows: | 3 |
| Contact spacing (termination side): | 3.81 mm / 5.08 mm |
| Contact spacing (mating side): | 3.81 mm / 5.08 mm |
| Rated current: | Rated current measured at 20 °C, see derating curve for details |
| Clearance distance: | ≥ 1.6 mm |
| Creepage distance: | ≥ 3 mm |
| Insulation resistance: | _1012 Ω |
| Contact resistance: | ≤ 15 mΩ |
| Limiting temperature: | '-55 ... +125 °C |
| Insertion and withdrawal force: | ≤ 37 N |
| Test voltage Ur.m.s.: | 1.55 kV (contact-contact) / 2.5 kV (contact-ground) |
| Isolation group: | IIIa (175 ≤ CTI _ 400) |
| Hot plugging: | No |
| Material (insert): | Thermoplastic resin, glass-fibre filled |
| Colour (insert): | RAL 7032 (pebble grey) |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant with exemption |
| ELV status: | compliant with exemption |
| China RoHS: | 50 |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Yes |
| California Proposition 65 substances: | Yes |
| California Proposition 65 substances 2: | Lead / Nickel |
| Specifications: | IEC 60603-2 (complementary) |
| Railway classification: | F4_I3 acc. to NFF 16-101_102 |
| Packaging size: | 100 |
| Net weight: | 13 g |
| Country of origin: | Romania |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140042544 |
| eCl@ss: | 27460201 PCB connector (board connector) |
