Katalogové číslo: 09380052621

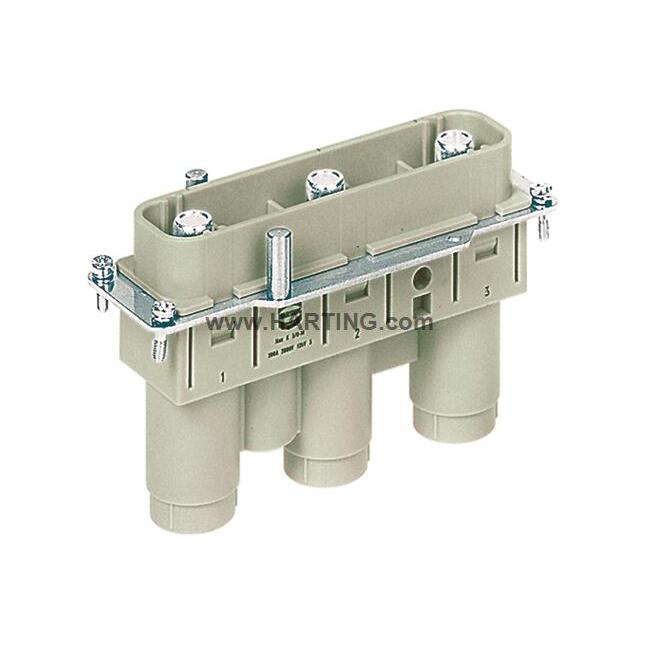

Han K 3/0 STI-S

Cena za ks
MOQ = 1 ks

1857,60  bez DPH

Parametry produktu 09380052621:

Series: Han-Com®
Termination method: Axial screw termination
Number of contacts: 3
Rated current: ‌ 200 A
Insulation resistance: _1010 Ω
Contact resistance: ≤ 0.2 mΩ
Limiting temperature: '-40 ... +125 °C
Mating cycles: ≥ 500
Material (insert): Polycarbonate (PC)
Colour (insert): RAL 7032 (pebble grey)
Material (contacts): Copper alloy
Surface (contacts): Silver plated
Material flammability class acc. to UL 94: V-0
RoHS: compliant with exemption
ELV status: compliant with exemption
China RoHS: 50
REACH Annex XVII substances: Not contained
REACH Annex XIV substances: Not contained
REACH SVHC substances: Yes
California Proposition 65 substances: Yes
California Proposition 65 substances 2: Lead / Nickel
Specifications: IEC 60664-1 / IEC 61984
UL / CSA: UL 1977 ECBT2.E235076 / CSA-C22.2 No. 182.3 ECBT8.E235076
Packaging size: 1
Net weight: 308.8 g
Country of origin: Germany
European customs tariff number: 85366990
GTIN: 5713140056152
eCl@ss: 27440205 Contact insert for industrial connectors
