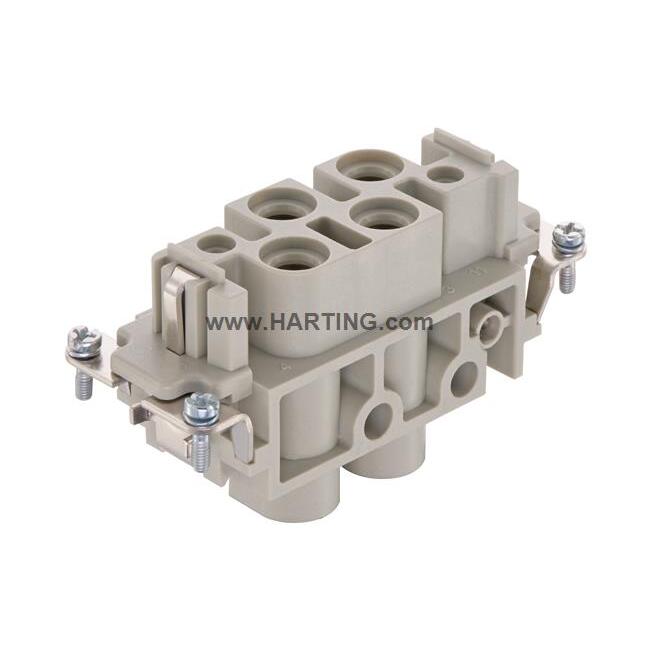

09380062701
Kód: 09380062701
Široký sortiment
Tisíce produktů od světových výrobců.
Odborné poradenství
Technická podpora zkušeného týmu.
Rychlé dodání
Zboží skladem expedujeme obratem.
Certifikovaná kvalita
Komponenty splňující nejvyšší normy.
Detailní popis produktu
Cena za ks MOQ = 1 ksDoplňkové parametry
| Kategorie: | Náš sortiment |
|---|---|
| Výrobce: | Harting |
| Series: | Han-Com® |
| Termination method: | Screw termination |
| Number of contacts: | 6 |
| Rated current: | 80 A |
| Insulation resistance: | _1010 Ω |
| Contact resistance: | ≤ 0.3 mΩ |
| Limiting temperature: | '-40 ... +125 °C |
| Mating cycles: | ≥ 500 |
| Material (insert): | Polycarbonate (PC) |
| Colour (insert): | RAL 7032 (pebble grey) |
| Material (contacts): | Copper alloy |
| Surface (contacts): | Silver plated |
| Material flammability class acc. to UL 94: | V-0 |
| RoHS: | compliant with exemption |
| ELV status: | compliant with exemption |
| China RoHS: | 50 |
| REACH Annex XVII substances: | Not contained |
| REACH ANNEX XIV substances: | Not contained |
| REACH SVHC substances: | Yes |
| California Proposition 65 substances: | Yes |
| California Proposition 65 substances 2: | Lead / Nickel |
| Specifications: | IEC 60664-1 / IEC 61984 |
| UL / CSA: | UL 1977 ECBT2.E235076 / CSA-C22.2 No. 182.3 ECBT8.E235076 |
| Packaging size: | 1 |
| Net weight: | 115 g |
| Country of origin: | Romania |
| European customs tariff number: | 85366990 |
| GTIN: | 5713140056244 |
| eCl@ss: | 27440205 Contact insert for industrial connectors |
