09380122701 - SVK Elektronik, s.r.o.

Katalogové číslo: 09380122701

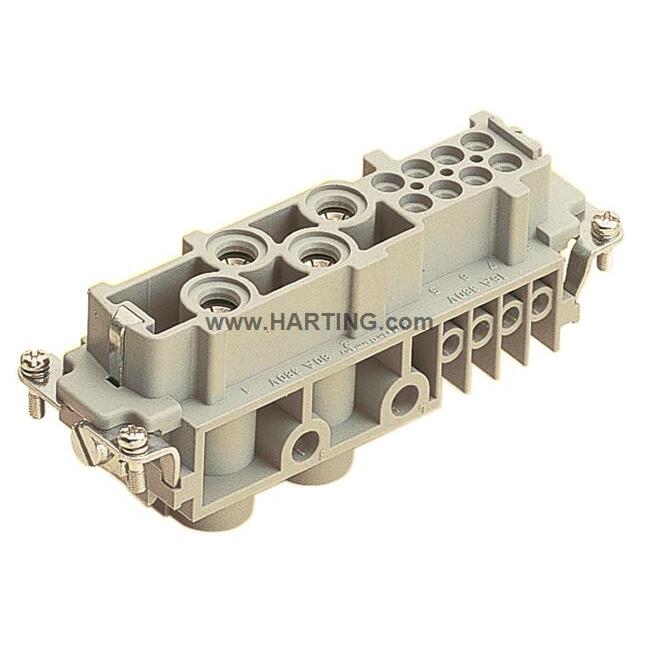

Han-K4/8-BU-S

Cena za ks
MOQ = 1 ks

Series: Han-Com®

Termination method: Screw termination

Number of contacts: 12

Rated current: ‌ 80 A

Insulation resistance: _1010 Ω

Contact resistance: ≤ 0.3 mΩ

Limiting temperature: '-40 ... +125 °C

Mating cycles: ≥ 500

Material (insert): Polyamide (PA)

Colour (insert): RAL 7032 (pebble grey)

Material (contacts): Copper alloy

Surface (contacts): Silver plated

Material flammability class acc. to UL 94: HB

RoHS: compliant with exemption

ELV status: compliant with exemption

China RoHS: 50

REACH Annex XVII substances: Not contained

REACH Annex XIV substances: Not contained

REACH SVHC substances: Yes

California Proposition 65 substances: Yes

California Proposition 65 substances 2: Lead / Nickel

Specifications: IEC 60664-1 / IEC 61984

UL / CSA: UL 1977 ECBT2.E235076 / CSA-C22.2 No. 182.3 ECBT8.E235076

Packaging size: 1

Net weight: 147 g

Country of origin: Romania

European customs tariff number: 85366990

GTIN: 5713140056381

eCl@ss: 27440205 Contact insert for industrial connectors
