09670095601 - SVK Elektronik, s.r.o.

Katalogové číslo: 09670095601

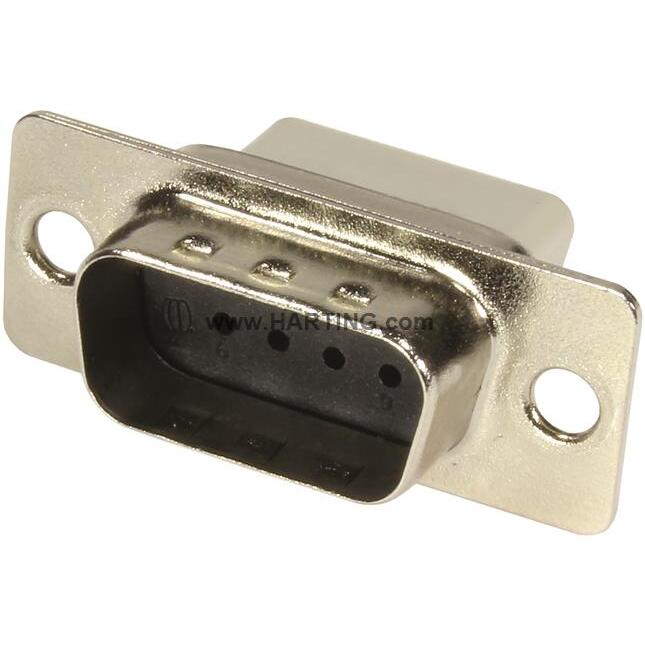

D-Sub crimp 9-pole male assembly

Cena za ks

Series: D-Sub

Element: Connector

Termination method: Crimp termination

Connection type: PCB to cable / Cable to cable

Number of contacts: 9

Clearance distance: ≥ 1 mm

Creepage distance: ≥ 1 mm

Insulation resistance: _1010 Ω

Limiting temperature: '-55 ... +125 °C

Test voltage Ur.m.s.: 1 kV

Hot plugging: No

Material (insert): Thermoplastic resin, glass-fibre filled (PBTP) / Shell_ Plated steel

Colour (insert): Black

Material (contacts): Copper alloy

Material flammability class acc. to UL 94: V-0

RoHS: compliant

ELV status: compliant

China RoHS: e

REACH Annex XVII substances: Not contained

REACH Annex XIV substances: Not contained

REACH SVHC substances: Not contained

California Proposition 65 substances: Not contained

Specifications: DIN 41652 / IEC 60807-3 / CECC 75301-802

UL / CSA: UL 1977 ECBT2.E102079

Packaging size: 100

Net weight: 1 g

Country of origin: China

European customs tariff number: 85366990

GTIN: 5713140089624

eCl@ss: 27440214 D-Sub coupler
