14010213110160 - SVK Elektronik, s.r.o.

Katalogové číslo: 14010213110160

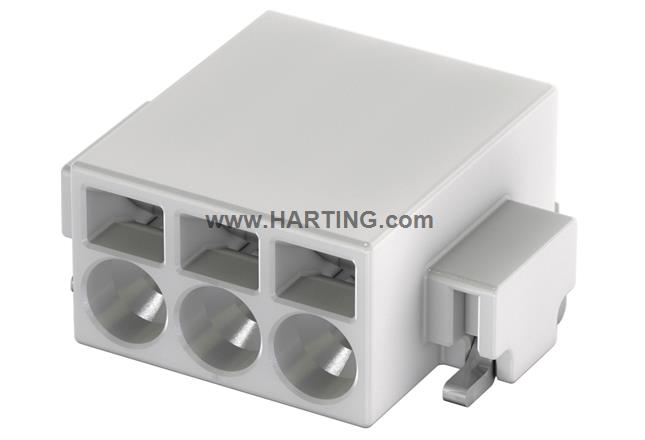

har-flexicon 2,54 TSPH-2 T24 WH 500pcs

Cena za role
MOQ = 1 role

Series: har-flexicon®

Element: PCB terminal block

Features: Reconnection_ 10 times (only with same or larger cross section)

Termination method: Push-in-spring-cage termination

Connection type: PCB to cable

Number of contacts: 2

Contact rows: 1

Contact spacing (termination side): 2.54 mm

Rated current: ‌ 6 A

Rated current 2: ‌ 6 A

Clearance distance: ‌ 1.5 mm

Creepage distance: ‌ 1.6 mm

Insulation resistance: _109 Ω

Contact resistance: _109 Ω

Limiting temperature: '-40 ... +125 °C

Isolation group: IIIa (175 ≤ CTI _ 400)

Material (insert): Liquid crystal polymer (LCP)

Colour (insert): White

Material (contacts): Copper alloy

Surface (contacts): Sn over Ni Mating side / Sn over Ni Termination side

Material flammability class acc. to UL 94: V-0

RoHS: compliant

ELV status: compliant

China RoHS: e

REACH Annex XVII substances: Not contained

REACH Annex XIV substances: Not contained

REACH SVHC substances: Not contained

California Proposition 65 substances: Yes

California Proposition 65 substances 2: Lead / Nickel

UL / CSA: UL 1977 ECBT2.E102079 / CSA-C22.2 No. 182.3 ECBT8.E102079

Packaging size: 1

Net weight: 1,696 g

Country of origin: China

European customs tariff number: 85366990

GTIN: 5713140208568

eCl@ss: 27460201 PCB connector (board connector)
