Katalogové číslo: 14020316404000

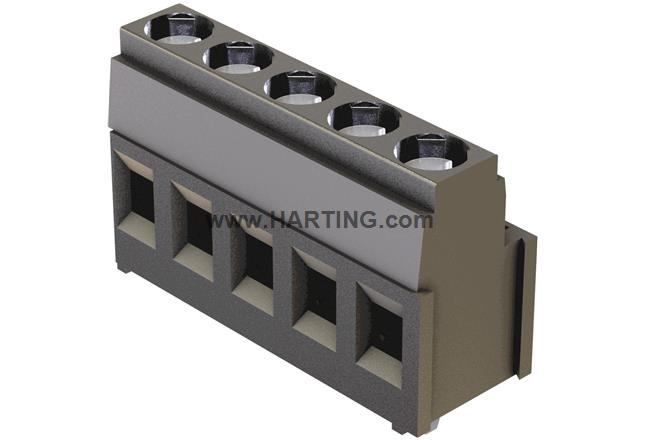

har-flexicon 5,00 TTSH-3 BK 2,5

Cena za ks

15,00  bez DPH

Parametry produktu 14020316404000:

Series: har-flexicon®
Element: PCB terminal block
Termination method: Screw termination
Connection type: PCB to cable
Number of contacts: 3
Contact rows: 1
Contact spacing (termination side): 5 mm
Rated current: ‌ 17.5 A
Rated current 2: ‌ 17.5 A
Limiting temperature: '-40 ... +110 °C
Isolation group: I (600 ≤ CTI)
Material (insert): Polyamide (PA) / Polyphthalamide (PPA)
Colour (insert): Black
Material (contacts): Copper alloy
Surface (contacts): Sn over Ni Mating side / Sn over Ni Termination side
Material flammability class acc. to UL 94: V-0
RoHS: compliant with exemption
ELV status: compliant with exemption
China RoHS: 50
REACH Annex XVII substances: Not contained
REACH Annex XIV substances: Not contained
REACH SVHC substances: Yes
California Proposition 65 substances: Yes
California Proposition 65 substances 2: Lead
UL / CSA: UL 1059 XCFR2.E314677 / CSA-C22.2 No. 158-10 XCFR8.E314677
Packaging size: 200
Net weight: 5.14 g
Country of origin: Italy
European customs tariff number: 85366990
GTIN: 5713140111622
eCl@ss: 27460201 PCB connector (board connector)

Objednávka produktu 14020316404000

V případě potřeby nás můžete kontaktovat i na čísle +420 281 021 305
